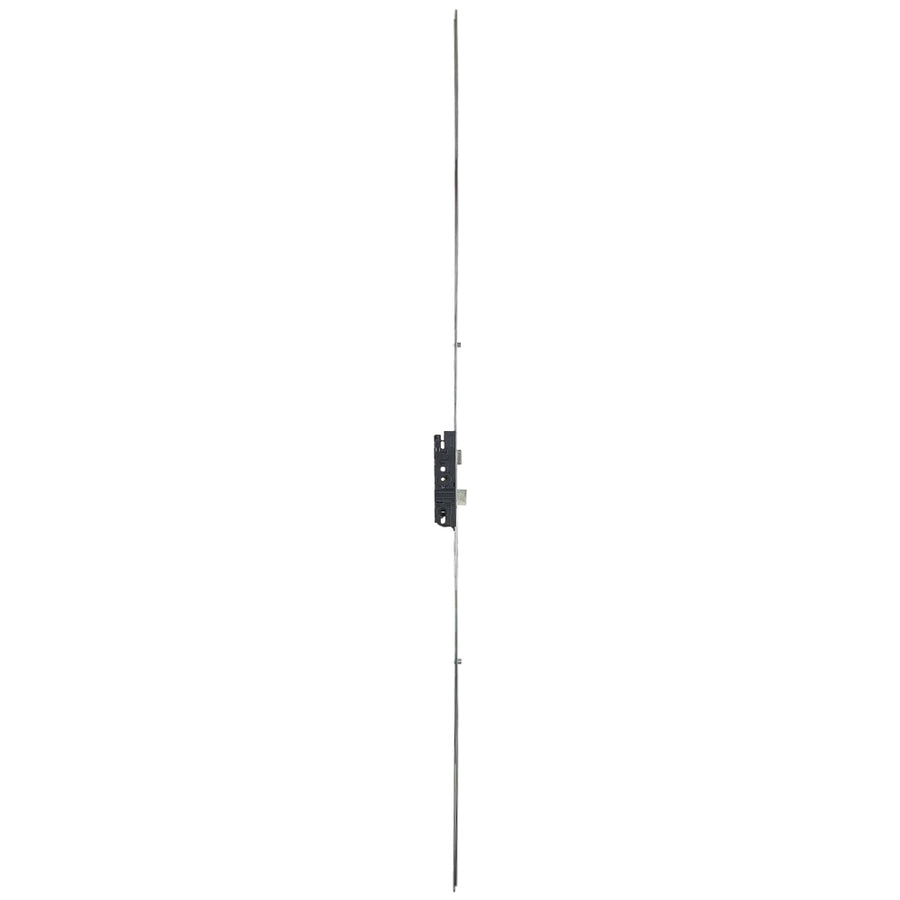

Europa R2 Shootbolt Version 30/92 Active Gear - Silver Ferguard
Use the arrows or swipe left to view all images for this product
Europa R2 Shootbolt Version 30/92 Active Gear - Silver Ferguard
Part Number: $256.30G-U Secury Europa R2

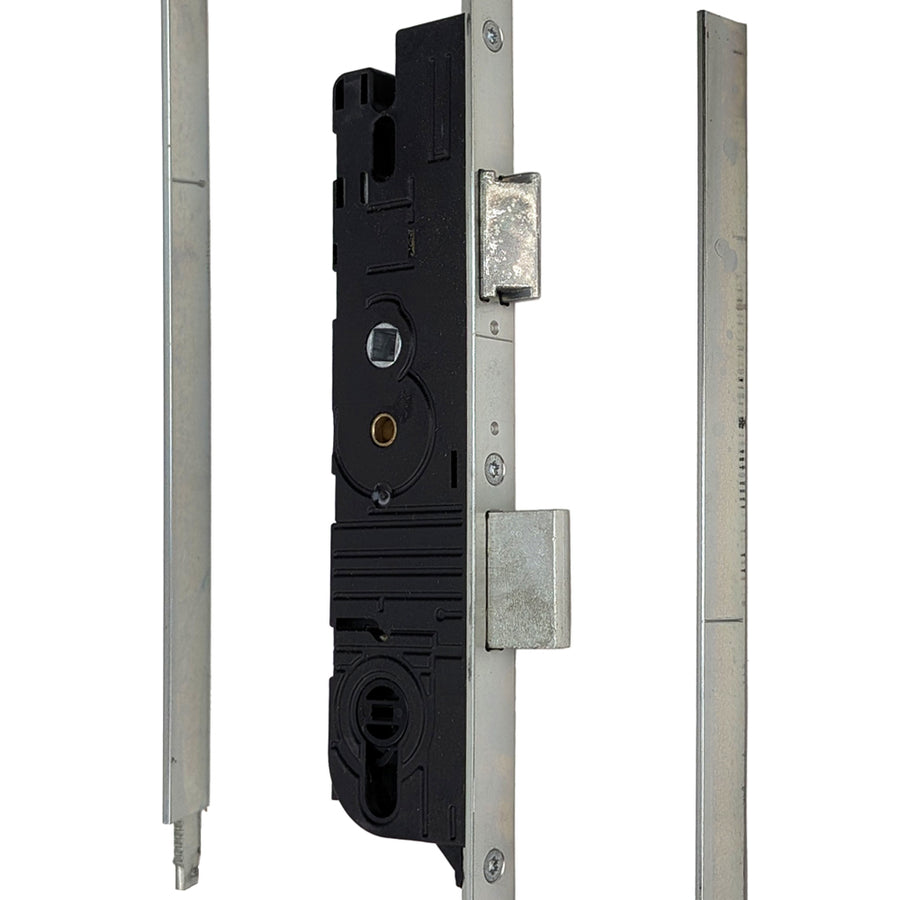

30/92 Bottom Gear with Roller and Shootbolt
Does not include top nor bottom shootbolt. See related items below.
Adjustable handle height, 35 to 40 inches. The R2 cams can be removed but the slot (where they travel) in the face plate will remain. There is no cover for this slot.
- Series: Secury Europa - R2
- Cylinder Type: American w/ Flat Tailpiece
- Handle Position: Key below handle
- Locking Function: Roller with shootbolt
- Backset: 30mm (1-3/16 inch)
- PZ (Distance from center-of-cylinder to center-of-handle): 92mm (3-5/8 inches)

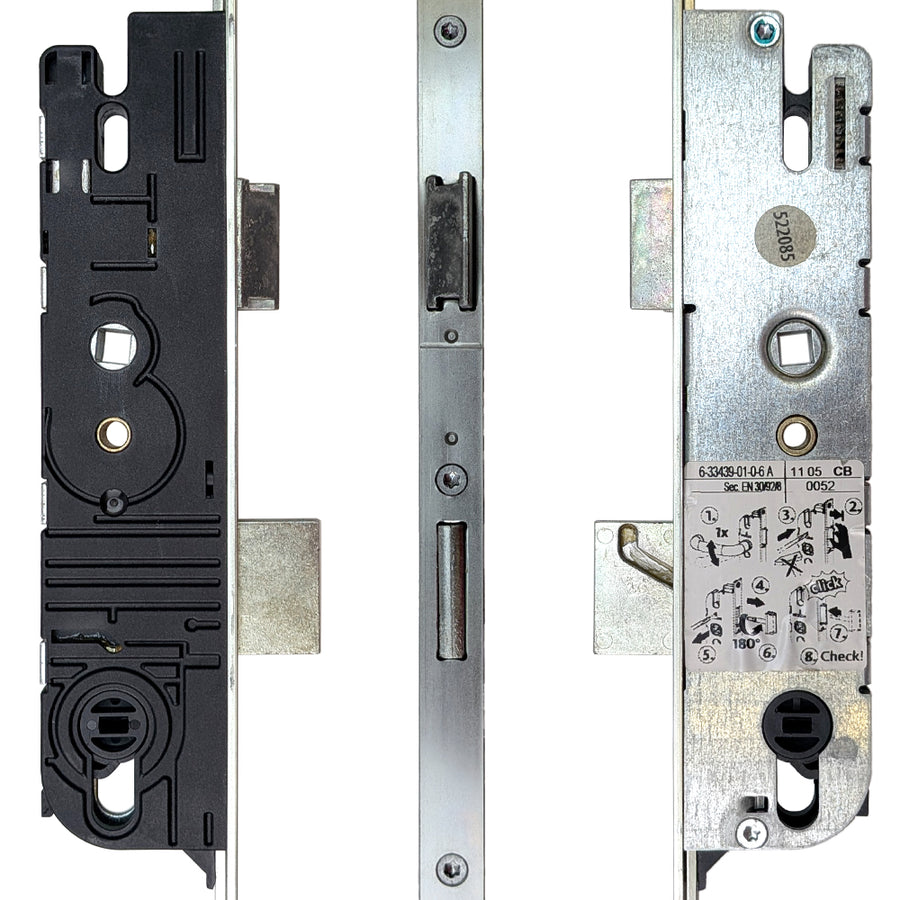

- Faceplate Width: 16mm (5/8 inch)
- Faceplate Finish: Stainless Steel
-
Handle Height (Adjustable/Croppable):
- Maximum: 1015mm (40 inches)
- Minimum: 890mm (35 inches)
- Spindle Size: 8mm Square
-

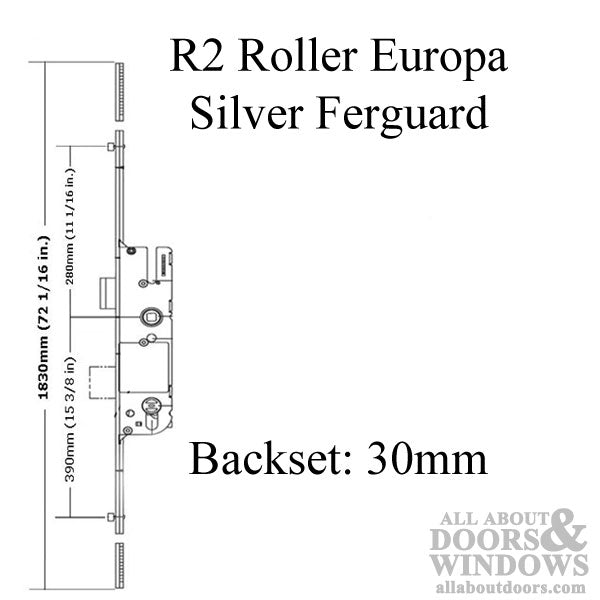

Roller Positions:
-
Locked:
- Upper: 10-1/4"
- Lower: 16-1/8"
-
Unlocked:
- Upper: 11-1/16"
- Lower: 15-3/8"
-
Locked:
Note: The Europa R2 and the Europa Inactive are the only locks in the G-U offering that can achieve the 39 inch handle height with shoots at the bottom. The Rhino, 6-33400, will have a handle height of 1015mm (40 inch) by adding a shoot at the bottom.
This has been discontinued and is only available only while supplies lasts. No current replacement.
G-U Bottom Gear with Roller and Shootbolt ( does not include top or bottom Shootbolt )
Series: Europa R2 3-5/8 inch (92mm) Handle to Cylinder Spacing
Cylinder: American w/ Flat Tailpiece
Handle Position: Key below Handle
Function: Roller with Shootbolt
Backset: 1-3/16" / 1.181 inch (30mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Stainless Steel
Handle Height: Adjustable - 40 Inch max., Croppable to 35 Inches (889mm)
Spindle Size: 8mm Square
Roller Position: Locked Top @ 10-1/4", Bottom @ 16-1/8"
Roller Position: Unlocked Top @ 11-1/16", Bottom @ 15-3/8"
Note: The Europa R2 and the Europa Inactive are the only locks in the GU offering that can achieve the 39î handle height with shoots at the bottom. The Rhino, 6-33400, will have a handle height of 1014mm (40î) by adding a shoot at the bottom.
The R2 cams can be removed but the slot (where they travel) in the face plate will remain. There is no cover for this slot.
