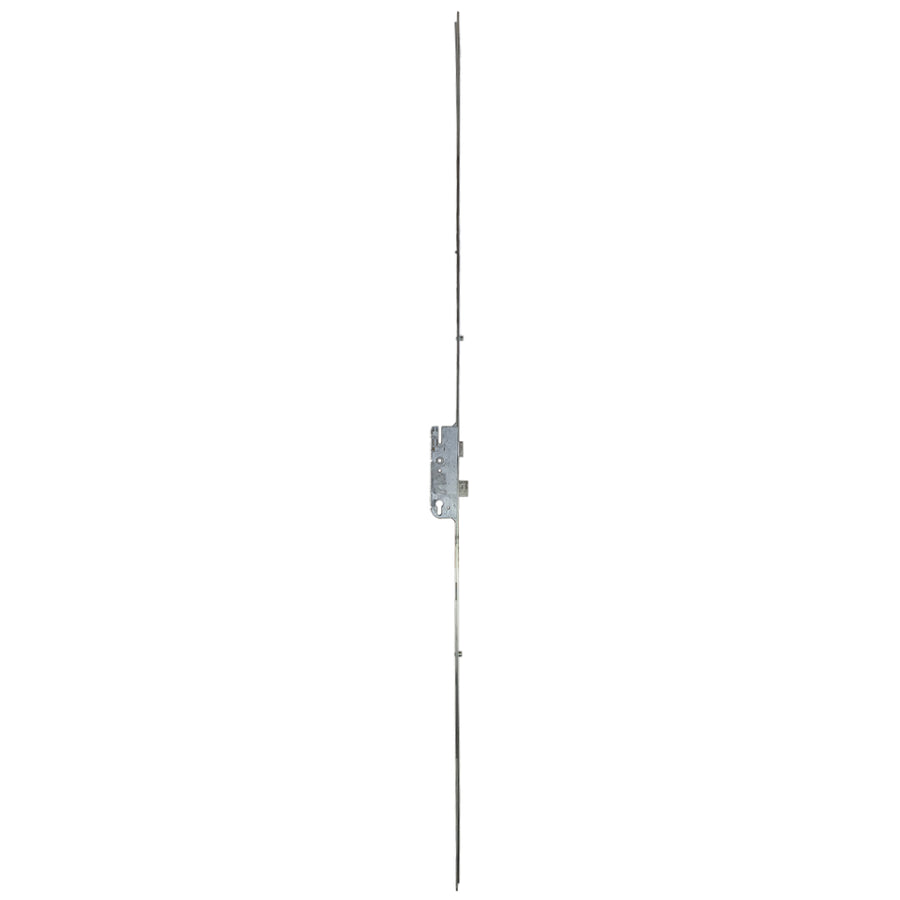

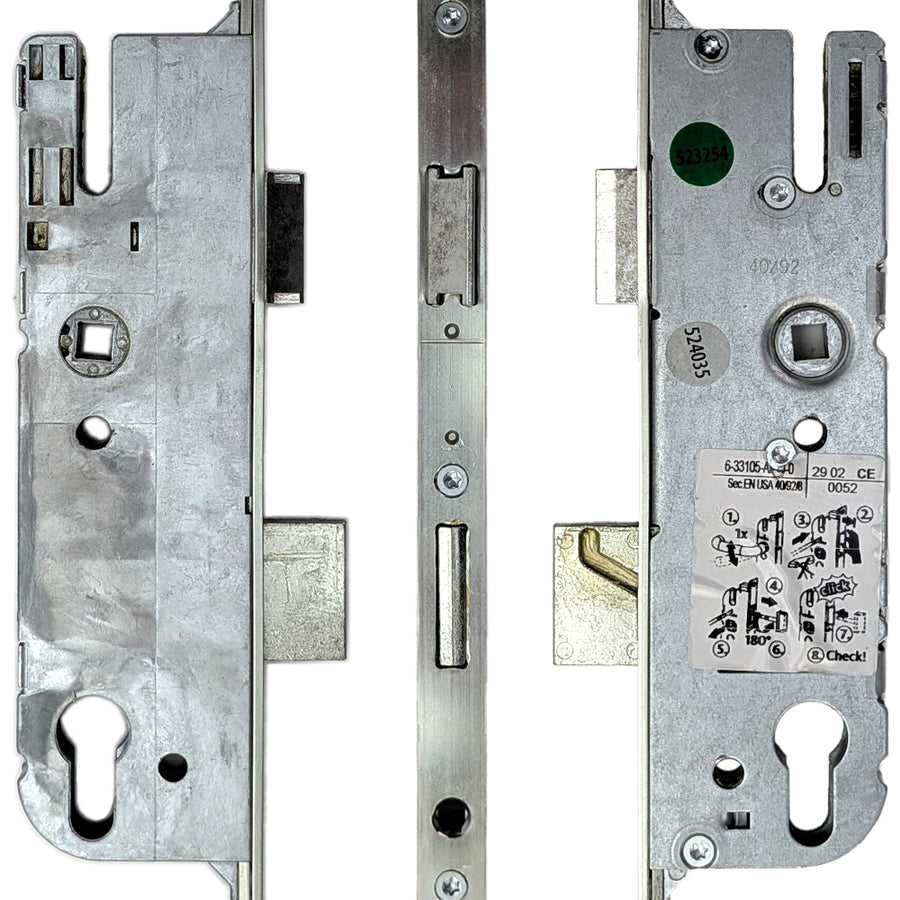

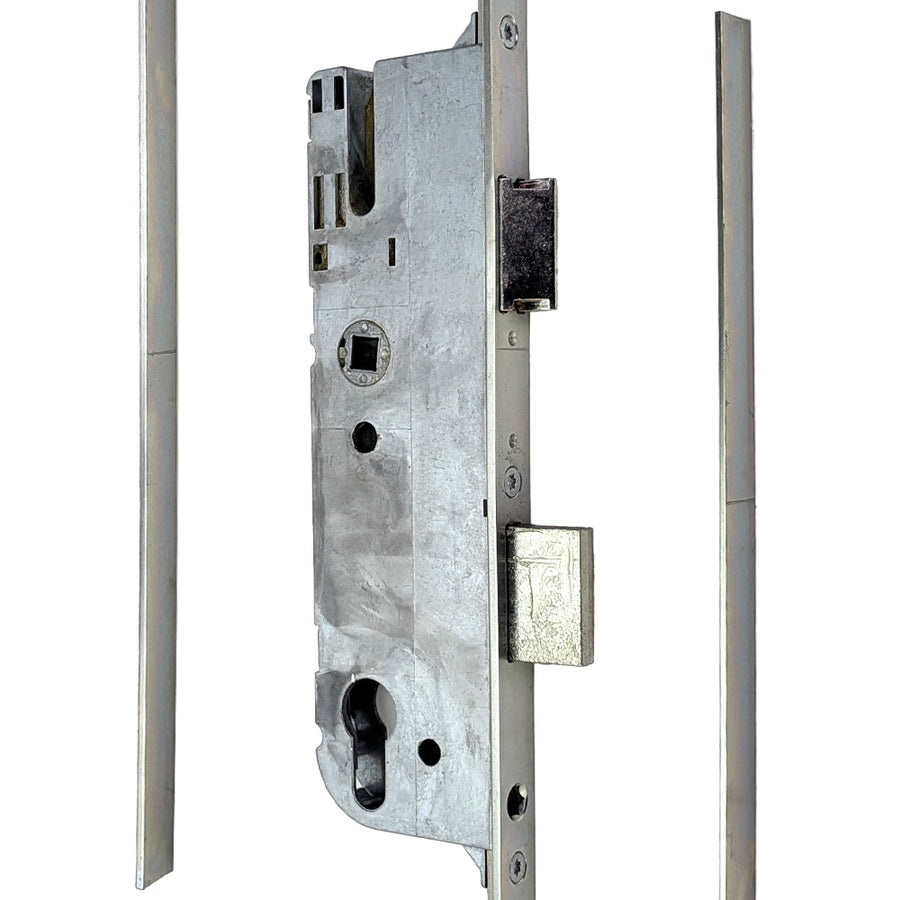

G-U/Ferco Secury Europa R2 Active Two-Roller 40/92 Euro Cylinder Multipoint Lock
Use the arrows or swipe left to view all images for this product
G-U/Ferco Secury Europa R2 Active Two-Roller 40/92 Euro Cylinder Multipoint Lock
Part Number: $347.36G-U Europa R2
Active Two-Roller Multipoint Lock
Features serrated "alligator" teeth to support the addition of optional top and/or bottom shootbolts. Shootbolts not included, see related items below.
- Function: Active
- Cylinder Type: Euro
- Lock Type: 2-Roller, with capability for top and bottom shootbolts.
- PZ (Distance from center of cylinder to center of handle): 92mm (3-5/8 inches)
- Backset: 40mm (1-9/16 inch)
- Deadbolt Throw: 20mm (3/4 inch)
- Handle Height: 890mm (35 inches)
-
Handle-to-Roller Position:
- Top: 279.5mm (11 inches)
- Bottom: 391mm (15.39 inches)
- Overall Length: 1830mm (72.04 inches)
G-U Europa R2 40/92 Euro Active two roller multipoint lock optional shootbolts
Function: Active
Backset: 1-9/16 inch (40mm)
Deadbolt Throw: 3/4 inch (20mm)
Handle Height: 35”
Lock type: 2-Roller/Optional shootbolts
Overall Length: 72.04" (1830mm)
Handle to Top Roller: 11" (279.5mm)
Handle to Bottom Roller: 15.39" (391mm)
Cylinder Type: Euro
NOTE:
Has alligator / serrated teeth so shootbolts can be attached to top and/or bottom; Shootbolts not include
