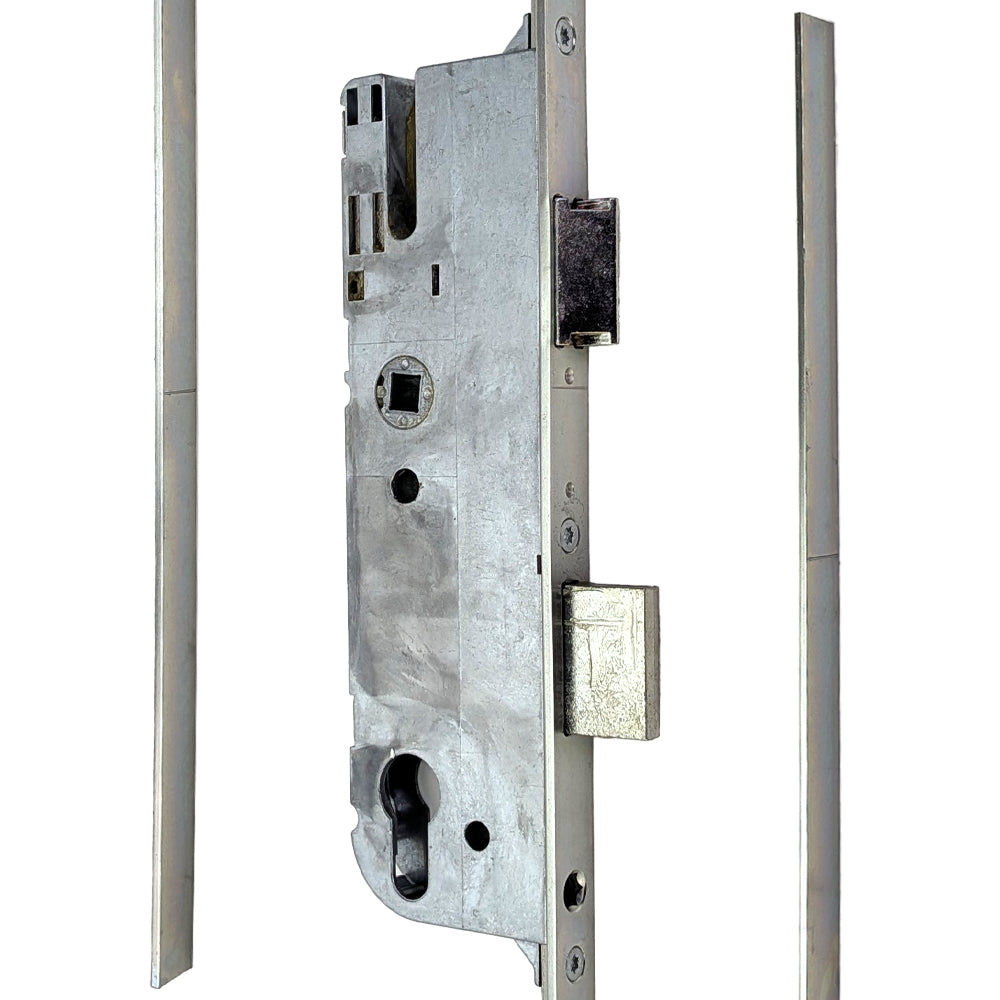

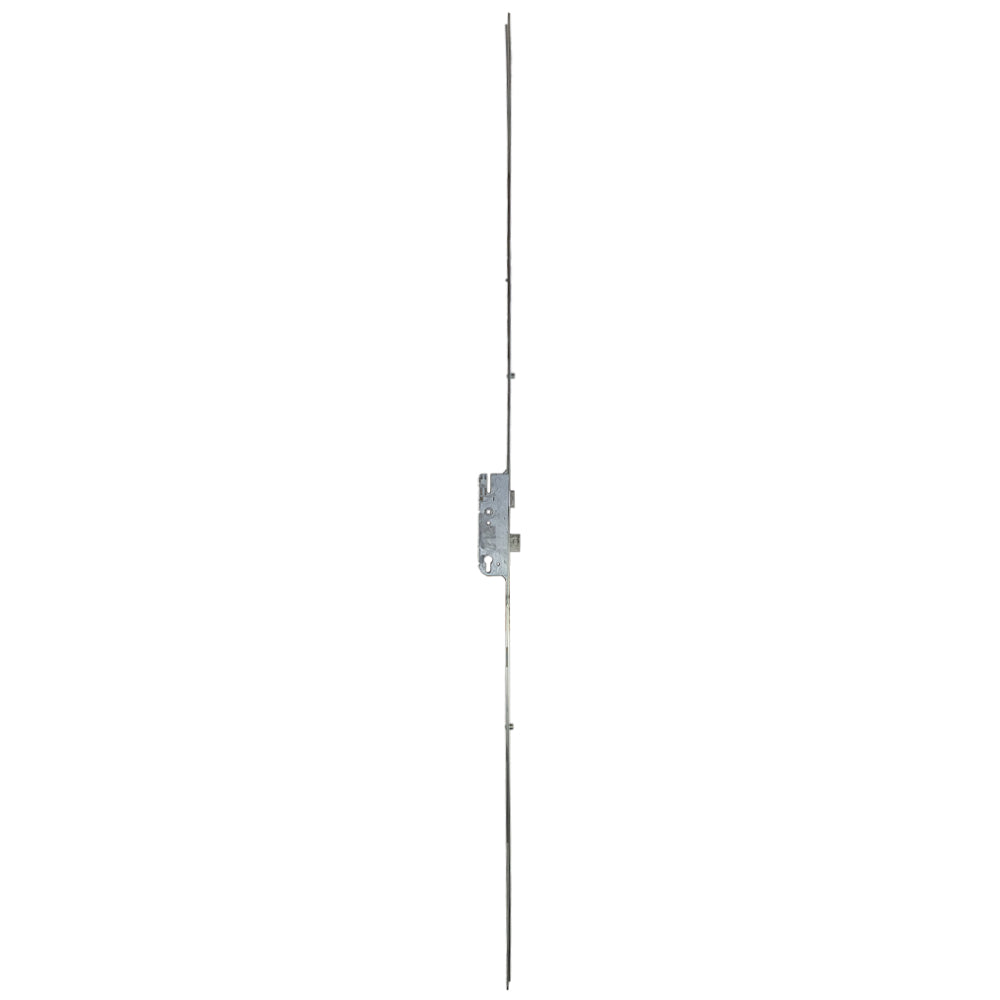

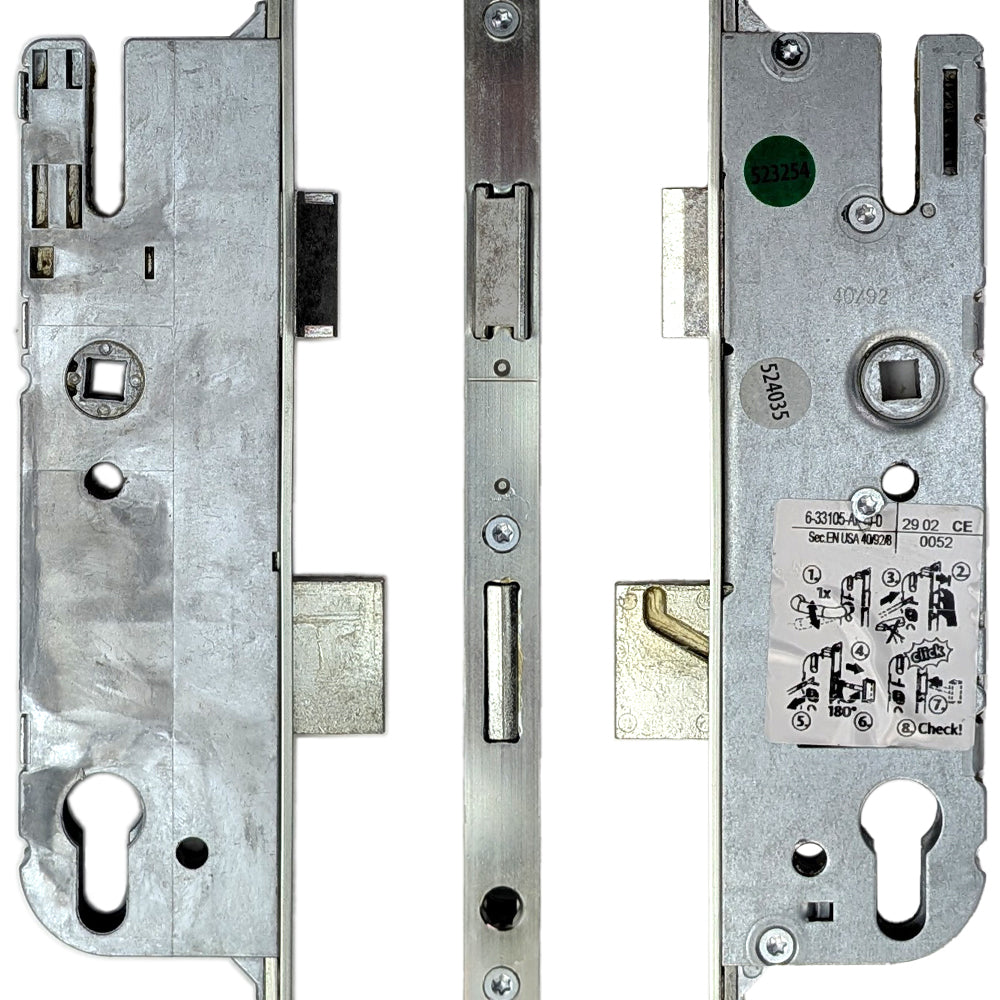

G-U/Ferco Secury Europa R2 Active Two-Roller 40/92 Euro Cylinder Multipoint Lock

Part Number: 6-UA686-40-1-FG Price: $347.36

G-U Europa R2

Active Two-Roller Multipoint Lock

Features serrated “alligator” teeth to support the addition of optional top and/or bottom shootbolts. Shootbolts not included, see related items below.

  • Function: Active
  • Cylinder Type: Euro
  • Lock Type: 2-Roller, with capability for top and bottom shootbolts.
  • PZ (Distance from center of cylinder to center of handle): 92 mm (3-5/8 inches)
  • Backset: 40 mm (1-9/16 inch)
  • Deadbolt Throw: 20 mm (3/4 inch)
  • Handle Height: 890 mm (35 inches)
  • Handle-to-Roller Position:
    • Top: 279.5 mm (11 inches)
    • Bottom: 391 mm (15.39 inches)
  • Overall Length: 1830 mm (72.04 inches)
G-U Europa R2 40/92 Euro Active two roller multipoint lock optional shootbolts<br />
<br />
Function: Active<br />
Backset: 1-9/16 inch (40mm) <br />
Deadbolt Throw: 3/4 inch (20mm) <br />
Handle Height: 35” <br />
Lock type: 2-Roller/Optional shootbolts<br />
Overall Length: 72.04" (1830mm)<br />
Handle to Top Roller: 11" (279.5mm)<br />
Handle to Bottom Roller: 15.39" (391mm)<br />
Cylinder Type: Euro <br />
<br />
NOTE:<br />
Has alligator / serrated teeth so shootbolts can be attached to top and/or bottom; Shootbolts not include <br />
