16mm Manual 45/92 Gear, Shootbolt-Tongue @ 24.41", 1/2" D/B

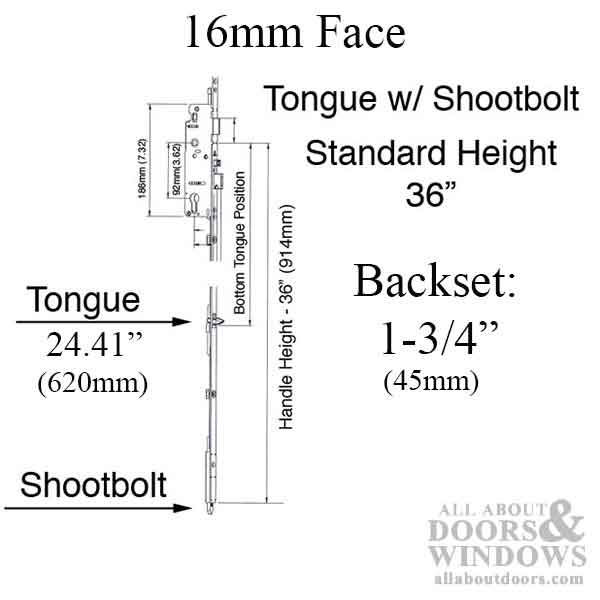

Hoppe HLS9000 Lower Assembly Tongue & Shootbolt version Multi-Point lock ( 1 of 3 Pieces when making a complete 5-point lock )
This is the Bottom/ Lower section of a 5-point lock.  Manual Gear for Active Door.

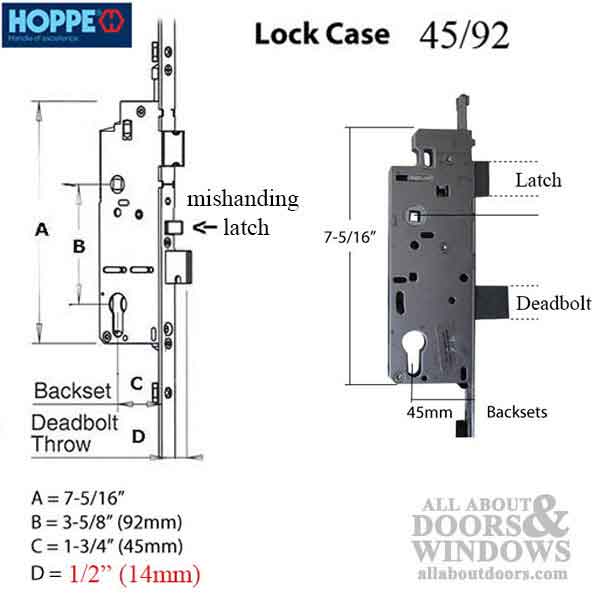

Faceplate width: 5/8 inch (16mm),
Backset: 1-3/4 inch (45mm),
Deadbolt throw: 1/2 inch (14mm) .55 inch
Handle Height: 36 inches (914mm),
Bottom Tongue Position: 24.41 inches (620mm),
Maximum Cutoff: N/A
Number of screws: 6


Note:

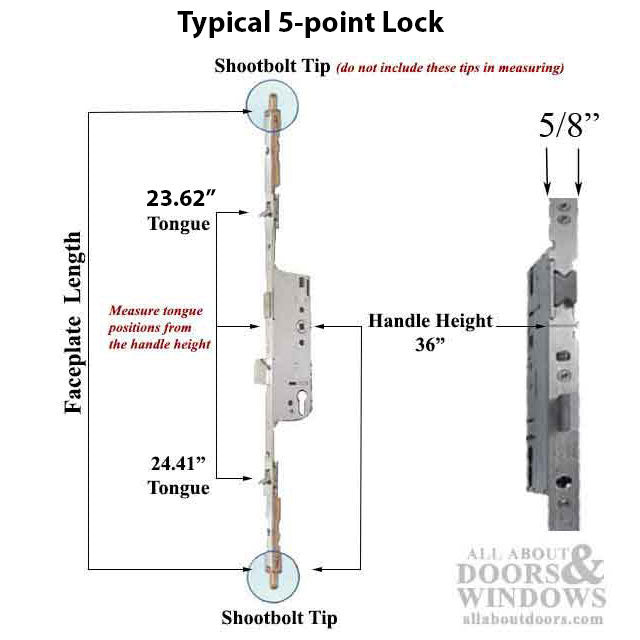

A complete 5-point lock is comprised of a lower assembly, middle extension and top shootbolt
The locking positions change depending on door height and customer needs.
