Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41"

Part Number: 3660426 $344.18

Review our shipping information and returns policy.

Request a Quote
16mm Hoppe Swing Hook and Shootbolt, Bottom Gear Assembly with Shootbolt attached.

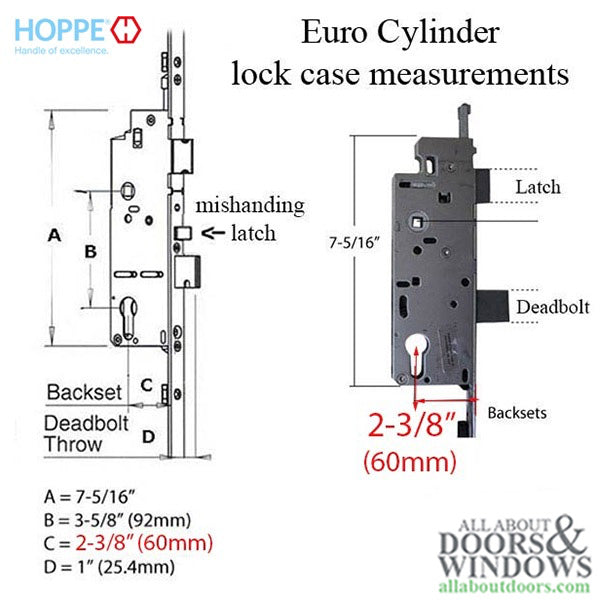

Faceplate: 5/8" (16mm)
Backset: 2-3/8" (60mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 36" (914mm)

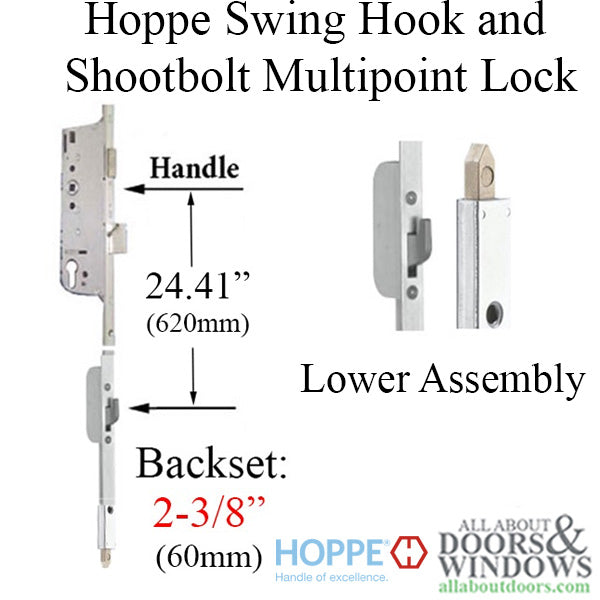

Bottom Swing Hook Position: 24.41" (620mm)
Number of Screws: 4

Related Parts:
3660426 - 2-3/8" Backset, Lower Hook + Shootbolt Assembly
3868761- 2-3/4" Backset, Lower Hook + Shootbolt Assembly
3814747- 1-3/8" Backset, Lower Hook + Shootbolt Assembly
3622876- 1-3/4" Backset, Lower Hook + Shootbolt Assembly
