Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41"

Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41
Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41
Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41
Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41
Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41
Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41

Hoppe HLS 9000 Swing Hook / Shootbolt 16/60/92, hook at 24.41"

Part Number:3660426 Price: $287.71
16mm Hoppe Swing Hook and Shootbolt,  Bottom Gear Assembly with Shootbolt attached.

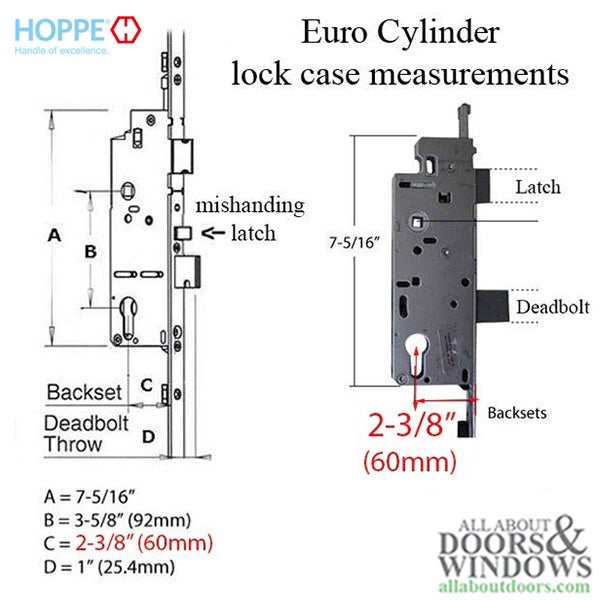

Faceplate: 5/8" (16mm)
Backset: 2-3/8" (60mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 36" (914mm)

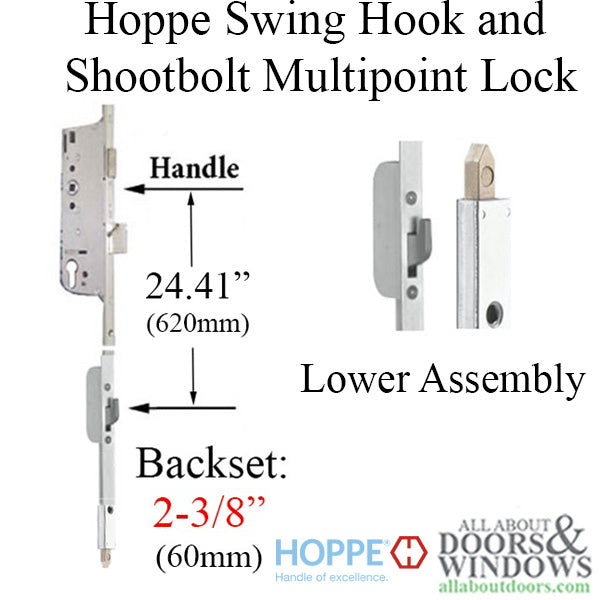

Bottom Swing Hook Position: 24.41" (620mm)
Number of Screws: 4

Related Parts:
3660426 - 2-3/8" Backset, Lower Hook + Shootbolt Assembly
3868761- 2-3/4" Backset, Lower Hook + Shootbolt Assembly
3814747- 1-3/8" Backset, Lower Hook + Shootbolt Assembly
3622876- 1-3/4" Backset, Lower Hook + Shootbolt Assembly

To better understand please see our Multipoint Lock Glossary Of Terms

Hoppe Multipoint Lock Resources:
Multipoint Lock Introduction
How to Rehand a Hoppe HLS9000 MPLock
How to Remove & Install Hoppe 90° Cylinder
How to Remove & Install Hoppe HLS9000 MPLock
How to Trim a Hoppe Multipoint Lock
HOPPE/FUHR Infosheet

Related Videos:
Connecting the Top Extension on a HOPPE Multipoint Lock
How to Convert a HOPPE 90º Cylinder into a 360º Cylinder
How to Rehand HOPPE Multipoint Lock

For further assistance, please fill out the HOPPE Worksheet for your lock and send it to us.
