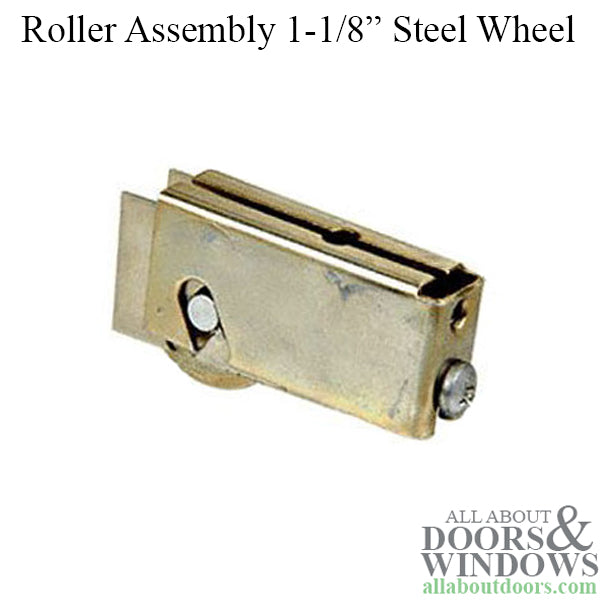

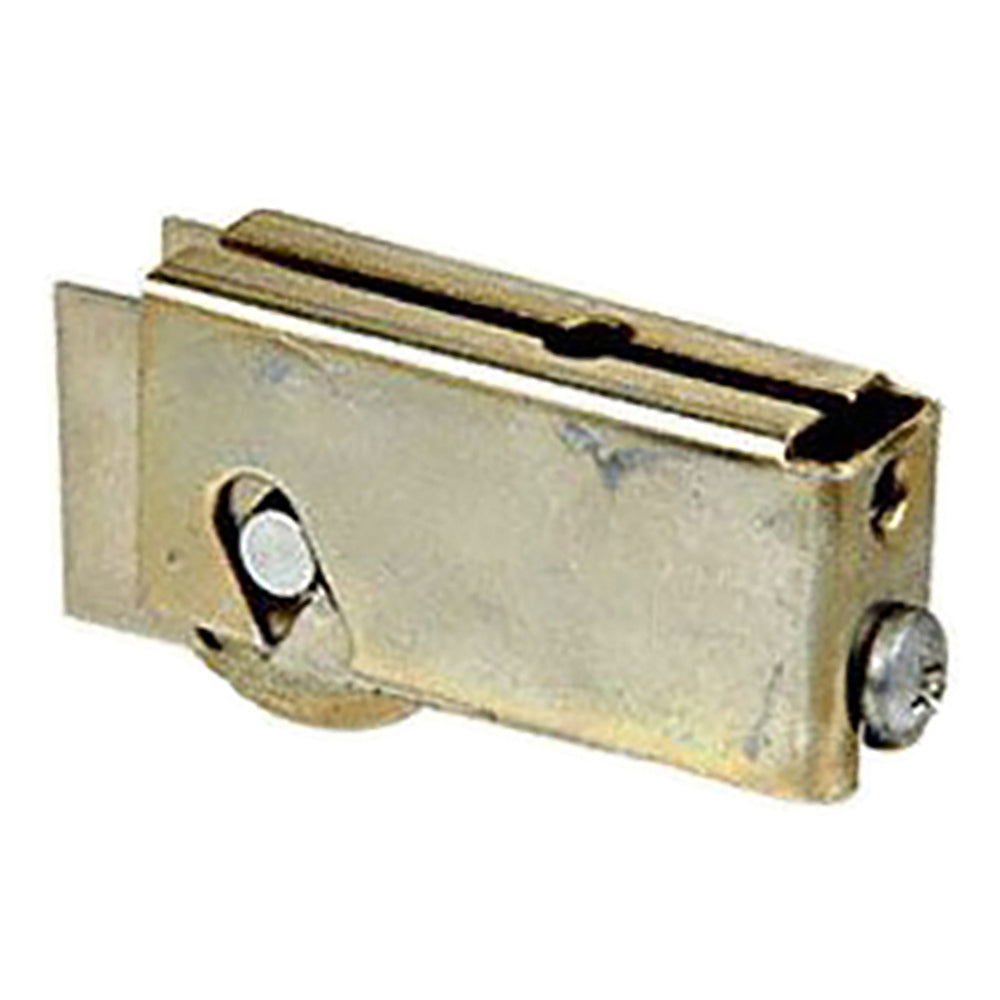

1-1/8 Steel Wheel, Roller Assembly

Part Number: 13103 Price: $12.38
Sold each, priced each

1-1/8 inch steel ball bearing roller
Adjustable steel housing assembly
Designed for Capitol door

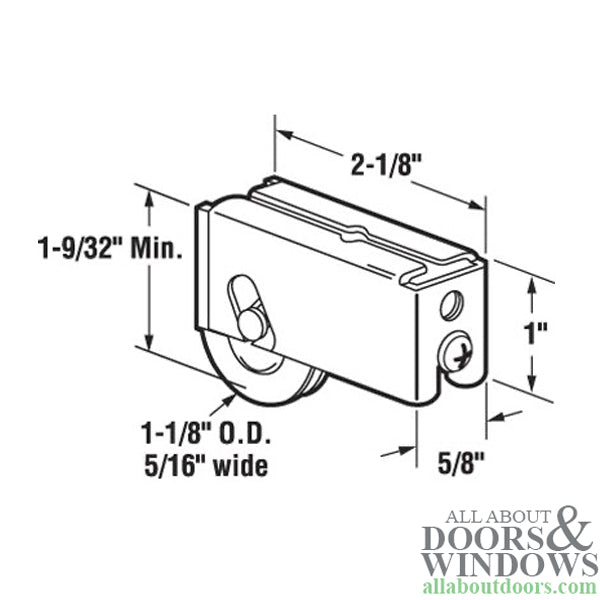

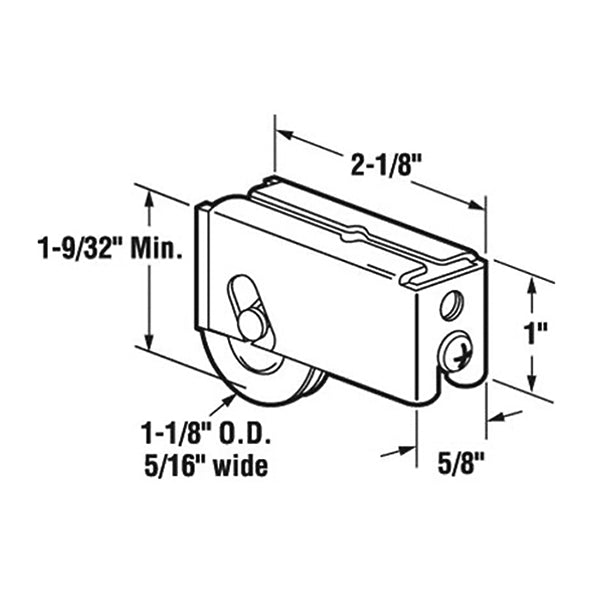

Housing dimensions: thickness, 19/32 inch; length, 2-1/8 inch; height, 1 inch.

NOTE: The rivets stick out past the housing and is thicker at the wheel than the original. Possible convert by using the 13180 Housing and changing the wheel from The 13103 and then using a modified Axle Pin.

Diameter: 1-1/8-inch
Housing Tab Style: Plain Back
Housing Width: 5/8-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 5/8-inch

Helpful Article: How to Replace Rollers in an Aluminum Sliding Glass Door
