1-3/4 Lever Kit: Schlage Keyed Cylinder, 2 screws, 3/4" spin
Part Number: 40081-SC1-BB-175 Price: $27.86Active lever set assembly for 1-3/4 thick Stile w/ Key Cylinder, Cylinder Mounting Screw, Handle Mounting Screws and Spindles
Application: Lever Sets
Spindle Diameter: 5/16" (8mm)
Spindle Length: 3/4 inch (20mm)
Screw Length: 2-1/4 inch
Cylinder: Schlage SC1, 5-Pin with 2 keys
Cylinder Tail Piece Length: 1-3/4 inch (45mm)
Keyway: Schlage C

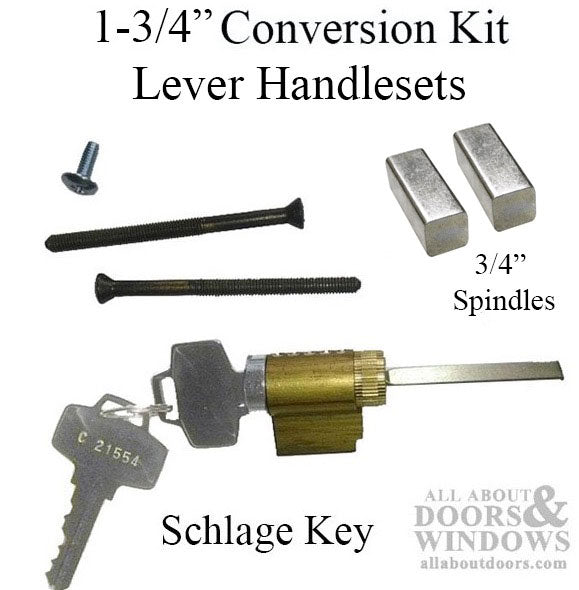

This Kit contains Cylinder with 2 keys, 2 spindles, 2 installation screws, 1 cylinder fixing screw
NOTE: This does not work with the Entrance Handle Sets.
It is compatible with Endura / Trilennium lever sets, including: Eclipse Horizon Pinnacle Rectangular
Application: Lever Sets
Spindle Diameter: 5/16" (8mm)
Spindle Length: 3/4 inch (20mm)
Screw Length: 2-1/4 inch
Cylinder: Schlage SC1, 5-Pin with 2 keys
Cylinder Tail Piece Length: 1-3/4 inch (45mm)
Keyway: Schlage C
This Kit contains Cylinder with 2 keys, 2 spindles, 2 installation screws, 1 cylinder fixing screw
NOTE: This does not work with the Entrance Handle Sets.
It is compatible with Endura / Trilennium lever sets, including: Eclipse Horizon Pinnacle Rectangular
