1-3/4 Lever Kit: Weiser Keyed Cylinder, 2 screws, 3/4" spindles

Part Number: 40081-WR-BB-175
COLOR: - Bright Brass / 1-3/4 inch door
DOOR THICKNESS: - Bright Brass / 1-3/4 inch door

Active lever set assembly for 1-3/4 thick Stile w/ Key Cylinder, Cylinder Mounting Screw, Handle Mounting Screws and Spindles


Application: Lever Sets

Spindle Diameter: 5/16" (8mm)

Spindle Length: 3/4 inch (20mm)

Screw Length: 2-1/4 inch

Screw Color:  Bronze

Cylinder: Weiser, 5-Pin with 2 keys

Cylinder Tail Piece Length: 1-3/4 inch (45mm)

Keyway: Weiser Composite, Fits Weslock, Kwikset and Old Dexter

** Note: Does not fit Dexter by Schlage, which is Schlage SC1 keyway

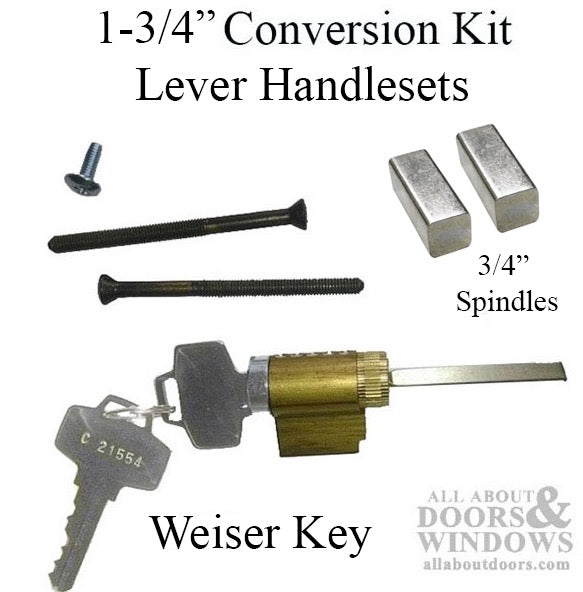

This Kit contains Cylinder with 2 keys, 2 spindles, 2 installation screws, 1 cylinder fixing screw


NOTE: This does not work with the Entrance Handle Sets.

It is compatible only with the Lever Series , including the Eclipse, Horizon, Curved, Pinnacle and Rectangular.
