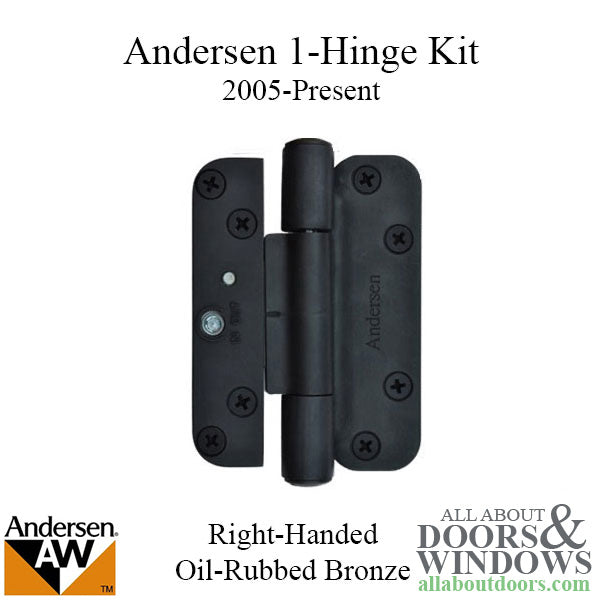

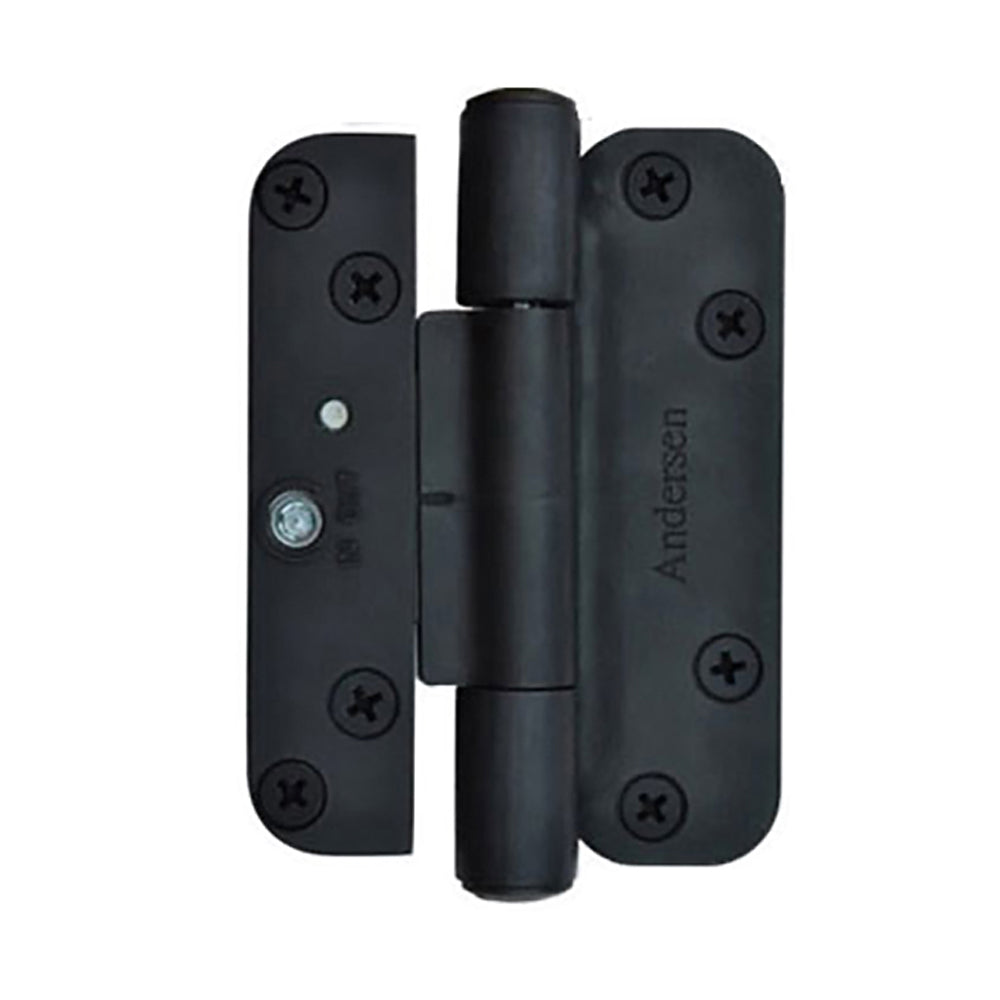

Right-hand Hinge for 400 Series Frenchwood Hinged Patio Doors in Oil Rubbed Bronze Finish

Contents: Includes single hinge (leaf and hinge receiver), screws, and instruction guide.

Specifications:

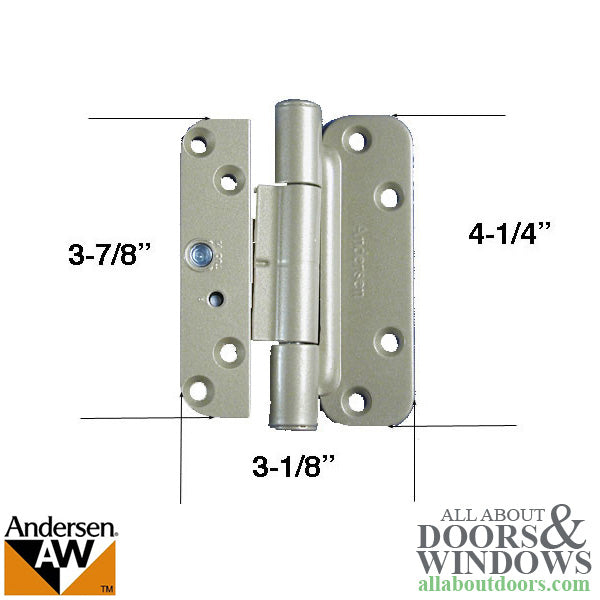

• Overall Width: 3-1/16 Inches
• Door Panel Length: 3-15/16 Inches
• Door Jamb Length: 4-1/4 Inches
• Handed: Yes
• Color(s): Oil Rubbed Bronze

Note:

Andersen had 3 generations of hinges:
1. 1989-1991: These hinges had one hole in the center of the tab.
2. 1992 to November 2005: This generation had two holes.

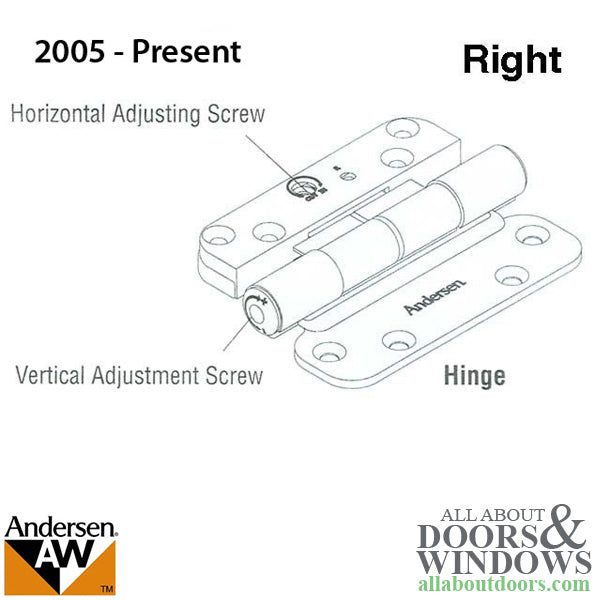

3. November 2005 to present: These hinges are totally different and require modification if being used to replace older hinges.

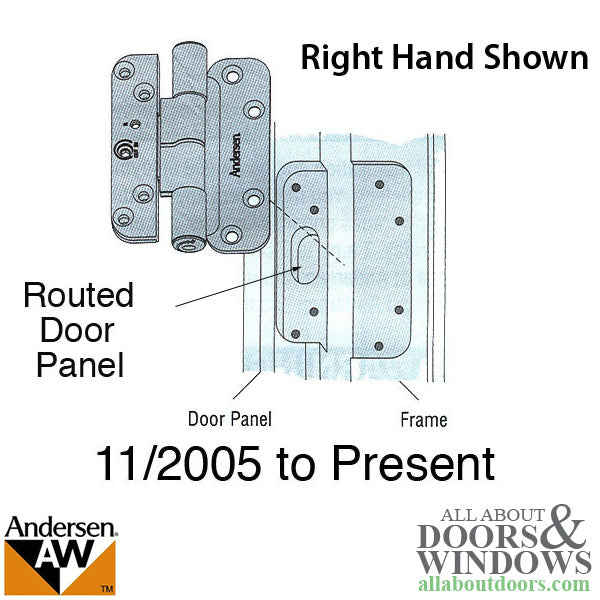

The first two generations of Andersen hinge are interchangeable, but installing the present hinges requires enlarging the receiver hole and routing the door panel (See the first article below).

All About Doors Guide: How to Replace Old-Style Andersen Hinges with New-Style
Manufacturer's Guide 0005105: Adjusting Andersen Hinges Made Pre-November 2005
Manufacturer's Guide 0000127: Adjusting Andersen Hinges Made Post-November 2005
General Information: How to Identify Andersen Hinges
General Information: Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
