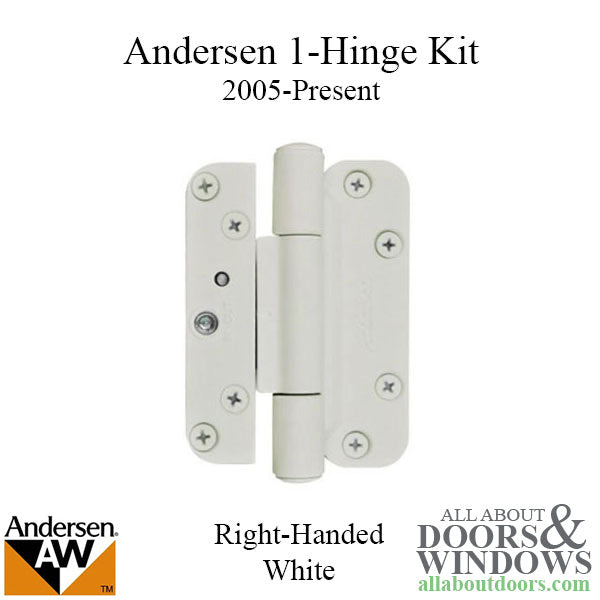

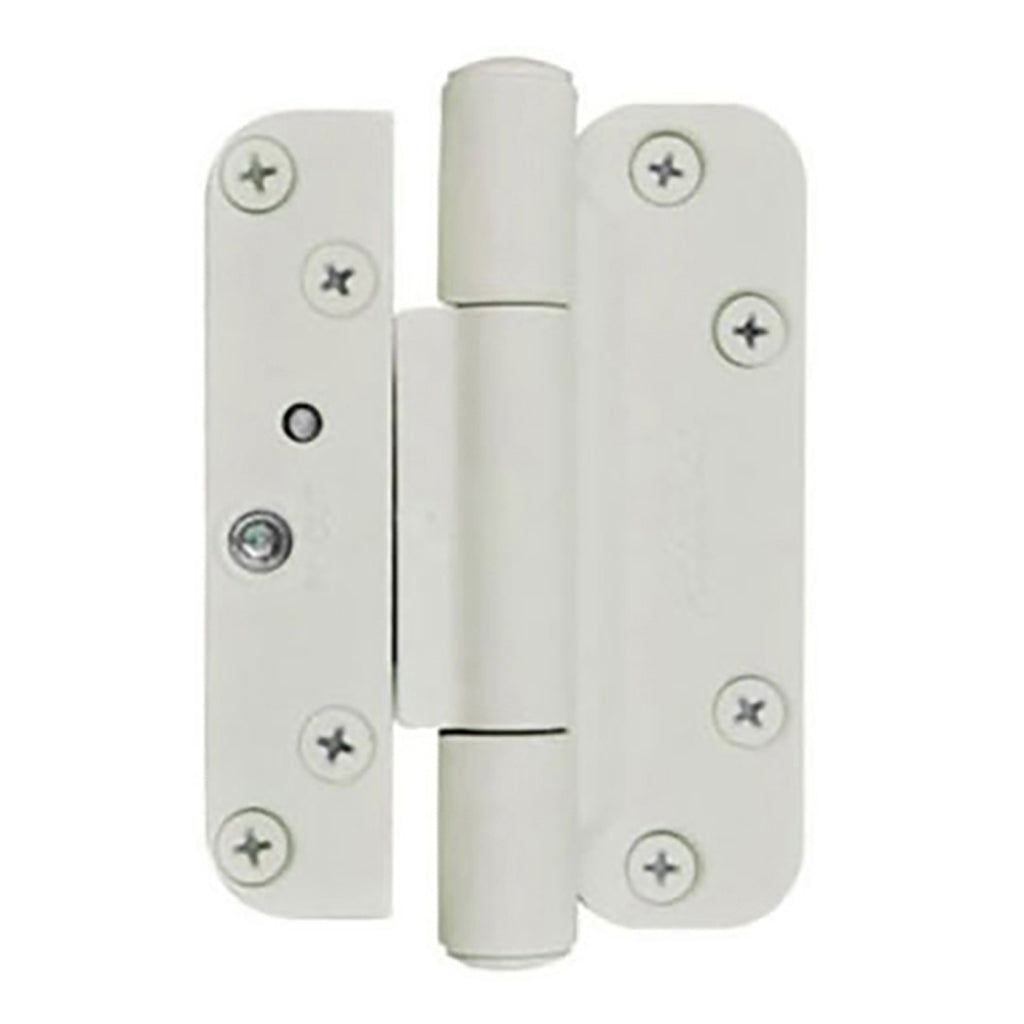

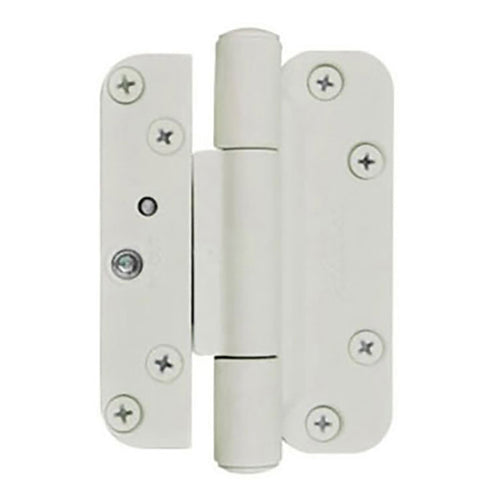

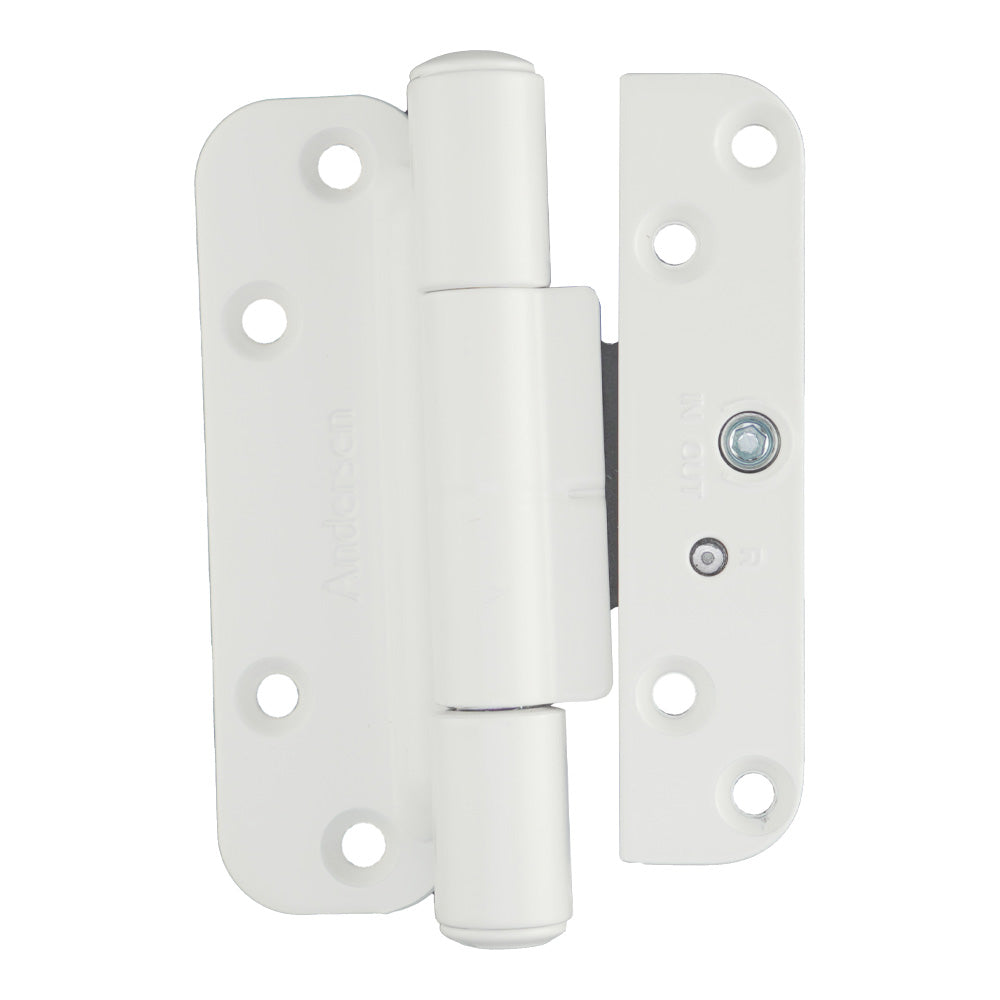

Right-Hand Hinge for 400 Series Frenchwood Hinged Patio Doors in White Finish
Contents: Includes single hinge (leaf and hinge receiver), screws, and instruction guide.

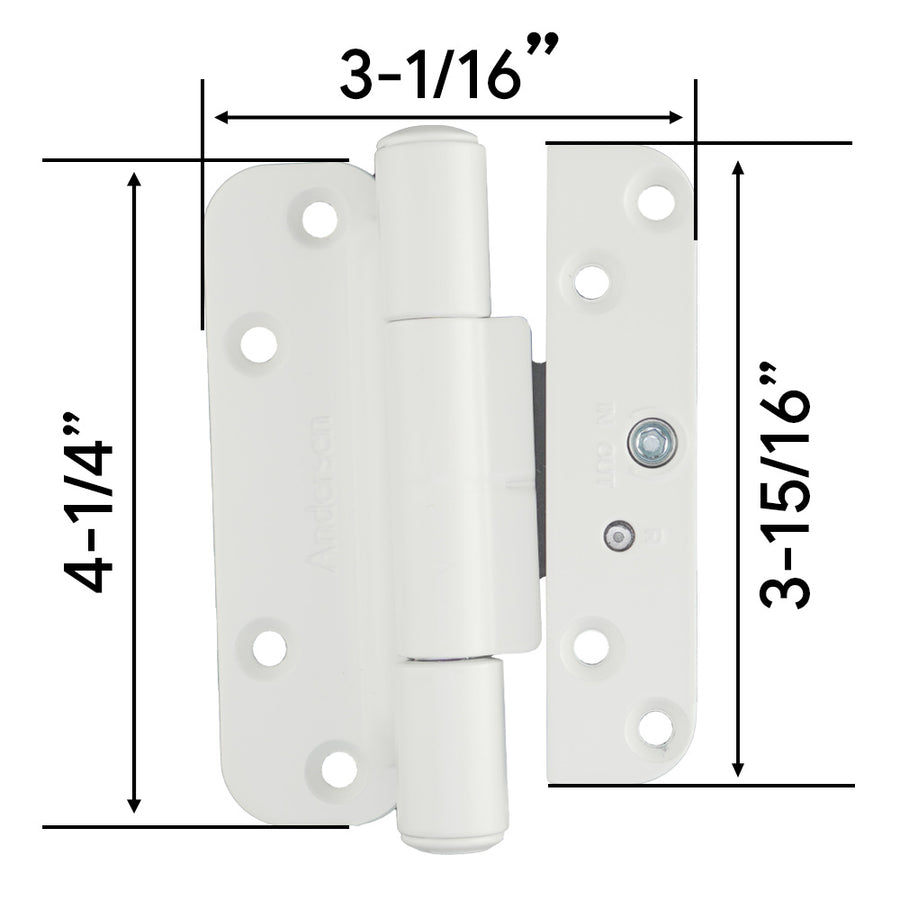

Specifications:
-
Overall Width: 3-1/16 Inches
-
Door Panel Length: 3-15/16 Inches
-
Door Jamb Length: 4-1/4 Inches
-
Handed: Yes
-
Color(s): White
Note:
Andersen had 3 generations of hinges:

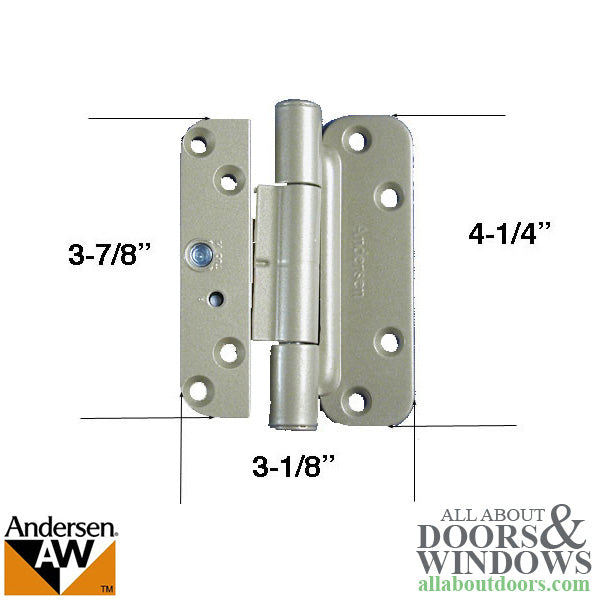

1. 1989-1991: These hinges had one hole in the center of the tab.
2. 1992 to November 2005: This generation had two holes.

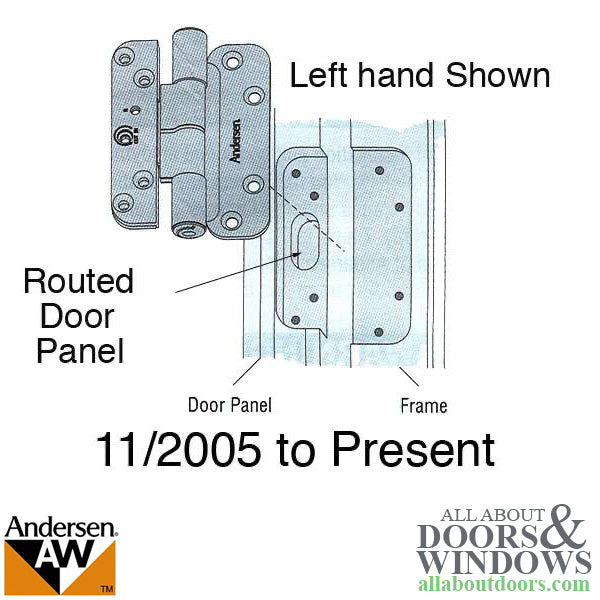

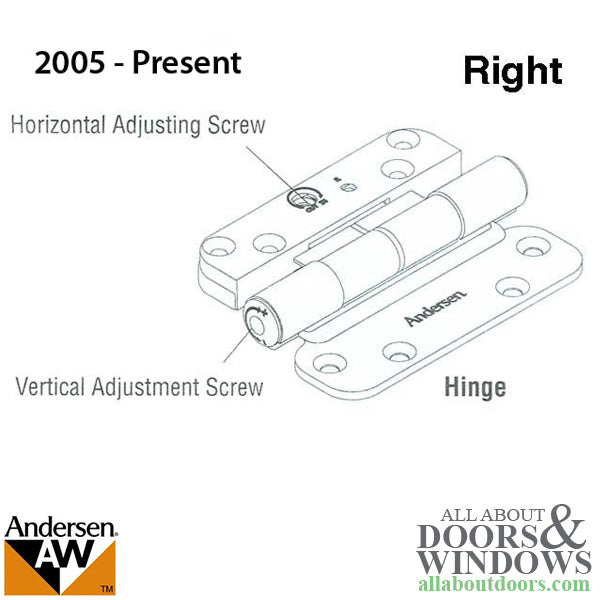

3. November 2005 to present: These hinges are totally different and require modification if being used to replace older hinges.
All About Doors Guide: How to Replace Old-Style Andersen Hinges with New-Style
Manufacturer's Guide 0005105: Adjusting Andersen Hinges Made Pre-November 2005
Manufacturer's Guide 0000127: Adjusting Andersen Hinges Made Post-November 2005
General Information: How to Identify Andersen Hinges
General Information: Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
<p><span style="font-size:18px;">Note: Andersen had 3 generations of hinges:</span><br /><span style="font-size:18px;">1. 1989-1991: These hinges had one hole in the center of the tab.</span><br /><span style="font-size:18px;">2. 1992 to November 2005: This generation had two holes.</span><br /><span style="font-size:18px;">3. November 2005 to present: These hinges are totally different and require modification if being used to replace older hinges.</span><br /><br /><span style="font-size:18px;">The first two generations of Andersen hinge are interchangeable, but installing the present hinges requires enlarging the receiver hole and routing the door panel (See the first article below).</span><br /><br /><span style="font-size:18px;"><strong>All About Doors Guide: </strong></span><a href="https://www.allaboutdoors.com/Article-Replacing-Old-Style-Hinges-on-an-Andersen-Door" target="_blank"><span style="font-size:18px;">How to Replace Old-Style Andersen Hinges with New-Style </span></a><br /><span style="font-size:18px;"><strong>Manufacturer's Guide 0005105: </strong></span><a href="https://www.allaboutdoors.com/Article-Andersen-Frenchwood-Hinge-Adjustment-Pre-November-2005" target="_blank"><span style="font-size:18px;">Adjusting Andersen Hinges Made Pre-November 2005</span></a><br /><span style="font-size:18px;"><strong>Manufacturer's Guide 0000127: </strong></span><a href="https://www.allaboutdoors.com/Article-Andersen-Frenchwood-Hinge-Adjustment-2005-Present" target="_blank"><span style="font-size:18px;">Adjusting Andersen Hinges Made Post-November 2005</span></a><br /><span style="font-size:18px;"><strong>General Information: </strong></span><a href="https://www.allaboutdoors.com/Article-Identifying-Andersen-Frenchwood-Door-Hinges" target="_blank"><span style="font-size:18px;">How to Identify Andersen Hinges</span></a></p>
