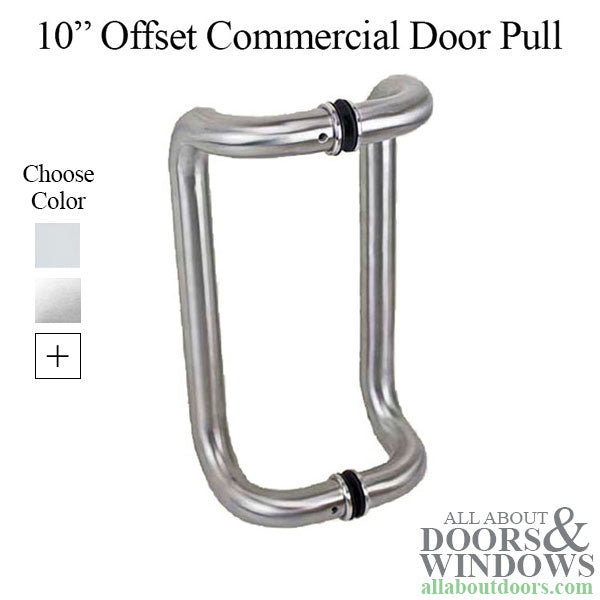

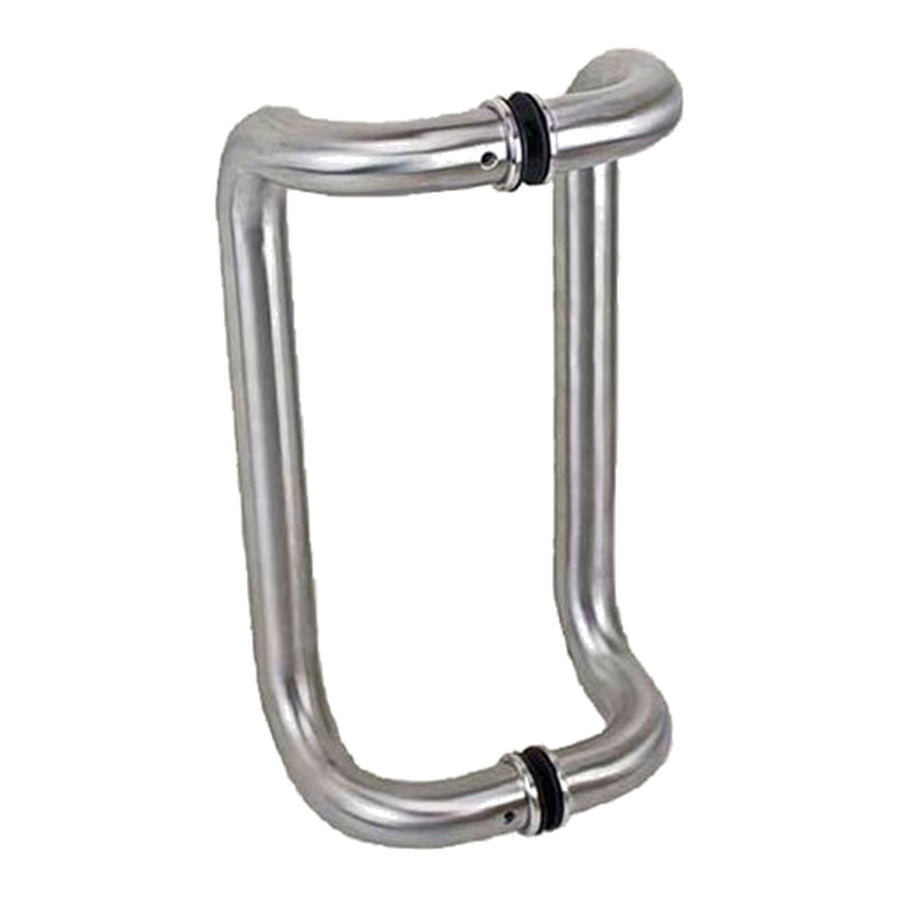

Rockwell Security 10 inch Offset Back to Back Commercial Door Pull

Part Number:380292 Price: $65.00 to $110.09
COLOR: - Bronze

Rockwell Security Contemporary Offset Back to Back Door Pull Handle for Tempered Glass Mount 10 Inch Polished for Commercial Swing Door Hardware

Solid Offset Pull Handles for commercial doors.

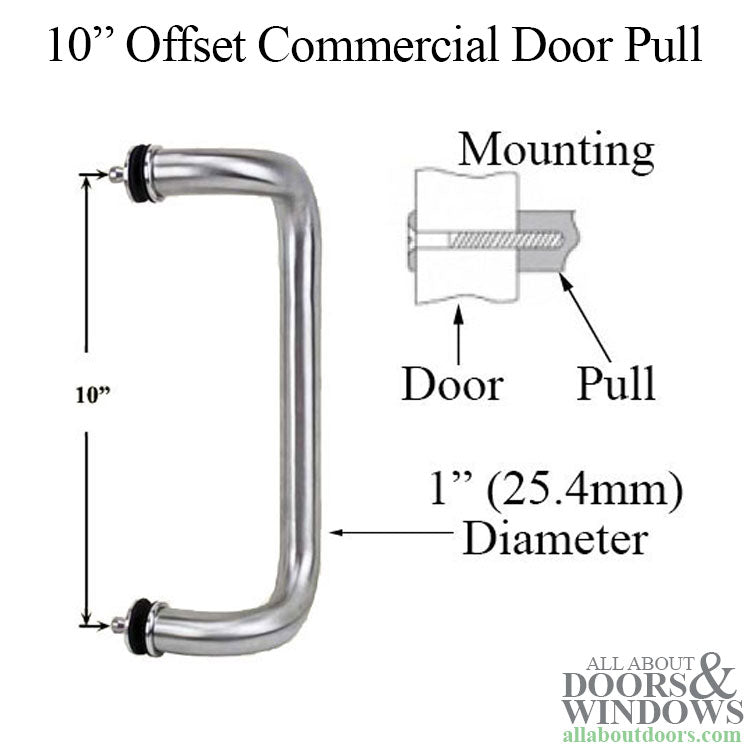

This commercial door pull bolts through the door and into the handle.

Details:
Diameter: 1 inch (25.4mm)
Overall Projection: 3-1/4 inch (83 mm)
Offset Clearance: 2-1/4 inch (57 mm)
Used with 1/4" 20 thru-bolts and finish washers (not Included)
Handle Center: 10 Inch (254 mm)
Handle Diameter: 1 Inch (25 mm)
Overall Projection: 3-1/4 Inch (83 mm)
Door Thickness: 3/8 to 3/4 Inch (9.5mm - 19mm)
Material: Stainless Steel

Color Options:
Brushed Stainless Steel
Polished Stainless Steel
Bronze
Aluminum

Priced and Sold as a Package

All commercial door pull handles are packed individually.

Solid offset pull handles for commercial doors.<BR>Bolts through the door into the handle.&nbsp;<BR><br>Diameter: 1 inch (25.4 mm)<BR>Overall Projection: &nbsp;height of 3-1/4" (83 mm)&nbsp;<BR>Offset Clearance: &nbsp;2-1/4" (57 mm).&nbsp;<BR>Used with 1/4–20 thru-bolts and finish washers (not Included )<BR>All Offset Pulls are packed individually.<BR>Color: Bronze<BR><br>Priced and sold each.&nbsp;<BR>This item is no longer manufactured and is limited to existing inventory.<BR>No returns, refunds or exchanges on this item.
