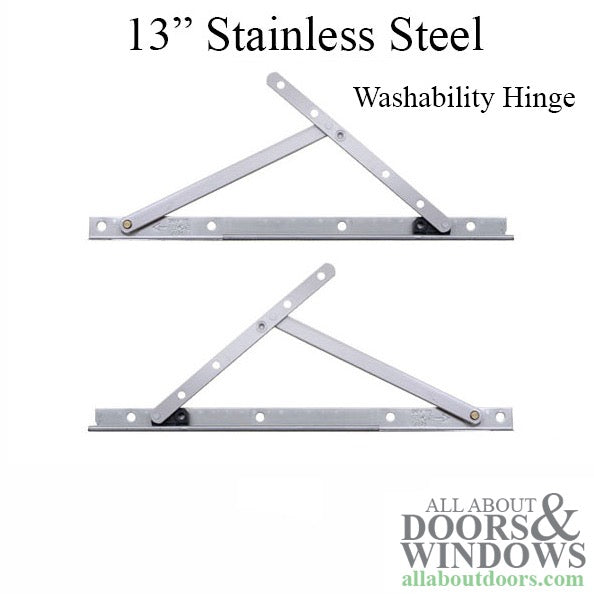

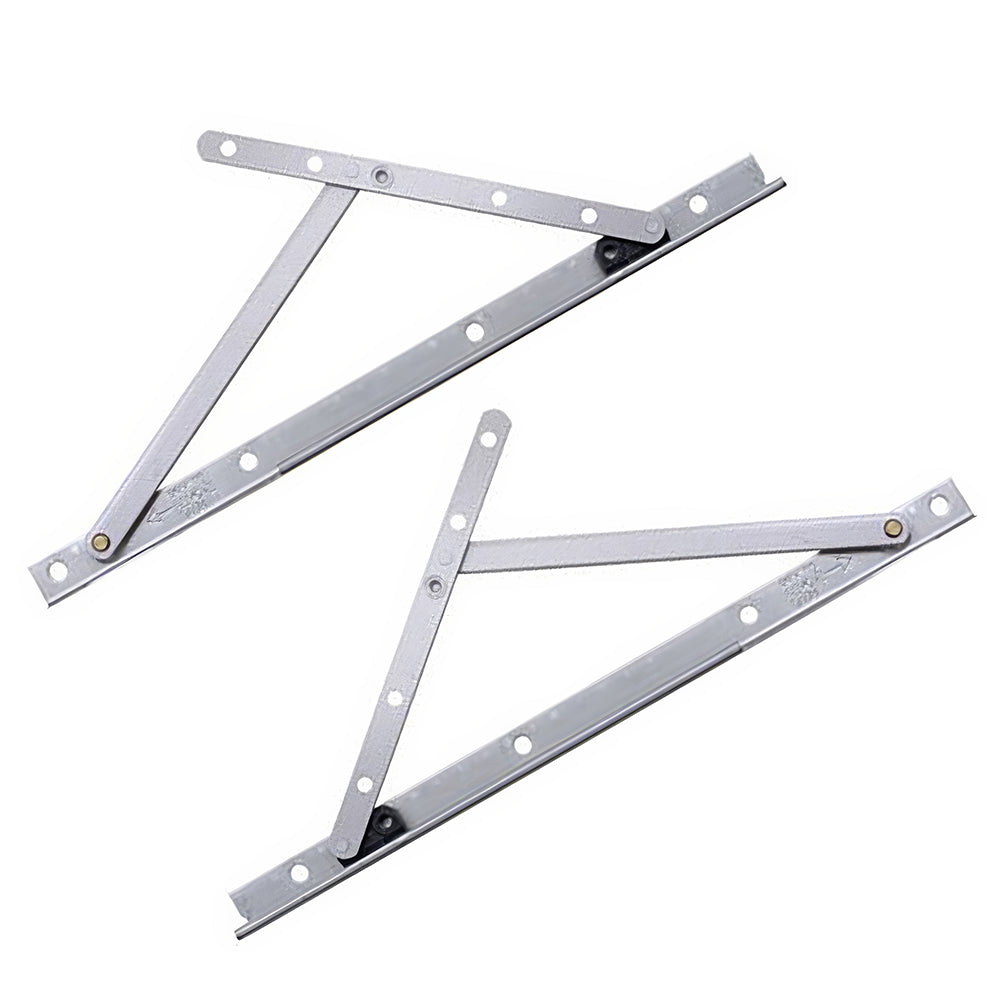

Amesbury Truth 14.97 Maxim 13 inch track with washability Stainless Steel 7-3/8 inch hinge arms

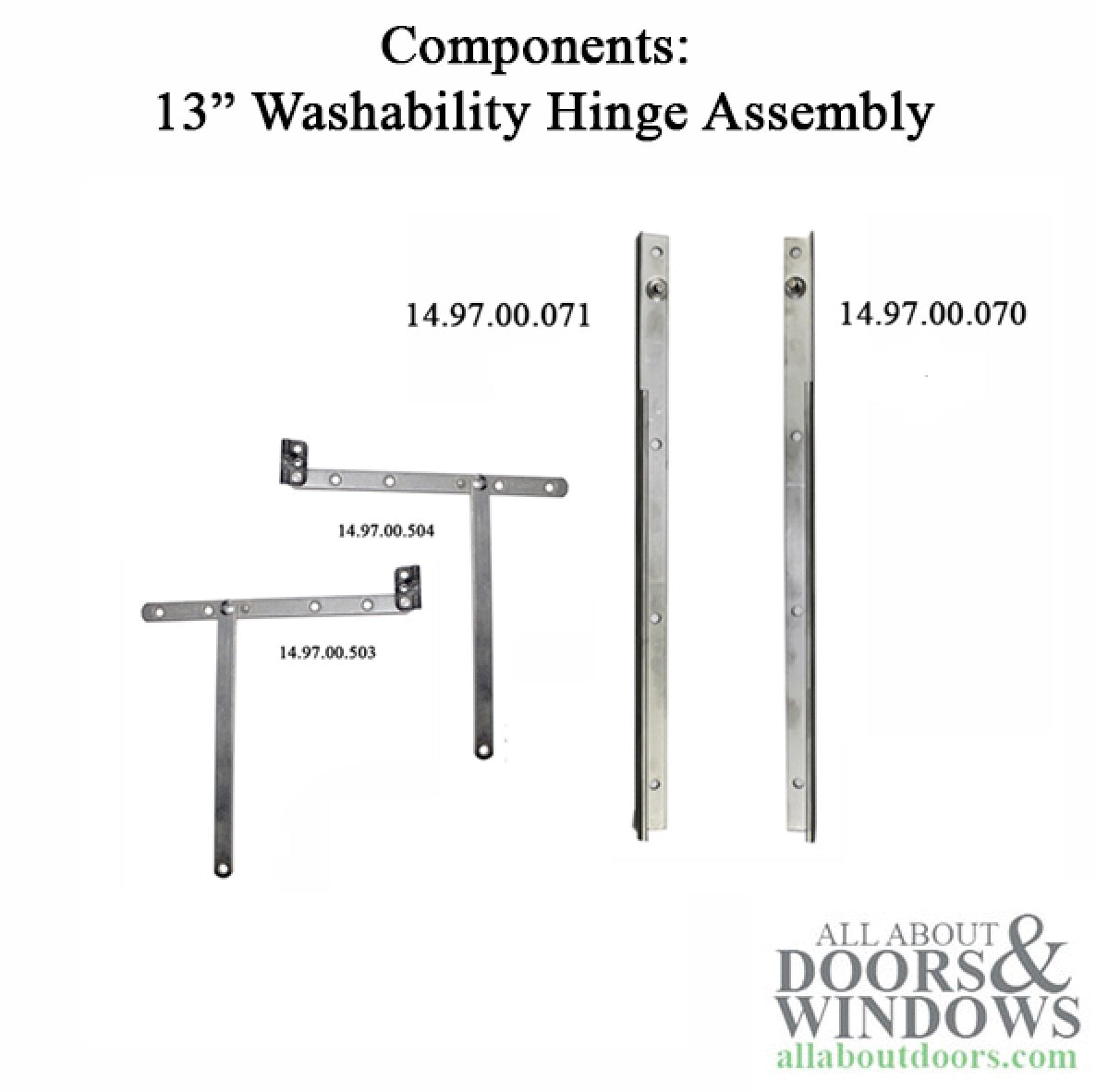

This kit is comprised of four (4) Amesbury Truth components to make a pair of upper and lower hinge assemblies for casement windows
This kit will fit left or right hand casement windows.

Window Hinge Opening: 6-9/16 inch
Track Length: 13 inches
Track Width: 23/32 inch
Track Material: Stainless Steel with Brass Stud
Arm Lengths: Equal, both arms 7-3/8 inch
Hinge Arm: Washability, allows clearance to clean window from inside
Stack Height: 7/16 inch ( 14.92 has 1/2" stack Height )
Arm Material: E-Gard or Stainless Steel
Handed: Yes, Right Hand and Left hand
Screws: are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual size will be determined by application and window material.

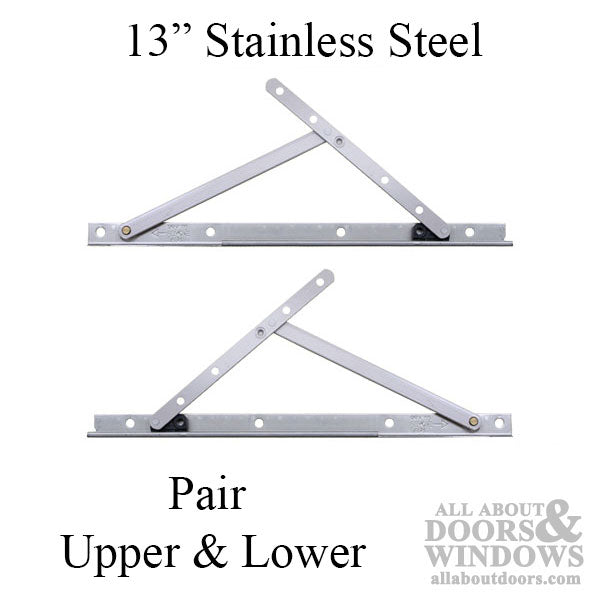

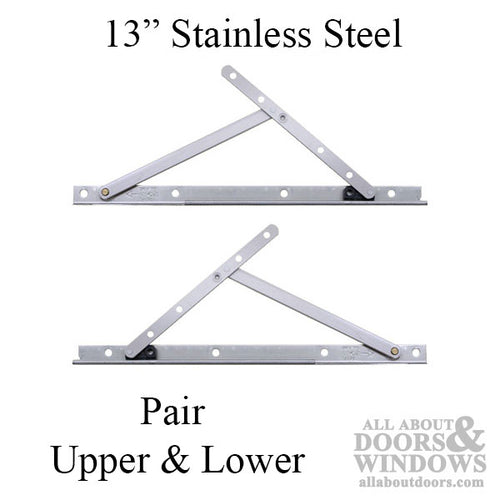

Sold in Pairs: 1 Upper, 1 Lower
NOTE: The Hinges are handed Left and Right, a pair will work on a left or right hand window.

Note 2: Truth’s E-Gard® Hardware has a multi-stage coating process that produces a superior physical and aesthetic finish. Resistant to a wider range of corrosive materials, including industrial cleaning materials and environmental pollutants. Approximately three times better than common zinc plated finishes.

Additional Information:
Maxim Casement Hinges vent large casement windows (up to 40" x 84") and provide 1.5" more washability than Truth's 10" casement hinges for easier cleaning from the inside. An adjustment feature built into the hinge allows for simple realignment. Maxim hinges have a notched track to clear corner welds in vinyl window frames. Available in assembled or knocked down. Designed to complement Maxim and Encore Operators and Locks.
