Active Gear Only with Bottom Shoot-bolt - Needs top shootbolt and middle extension for doors greater than 81"

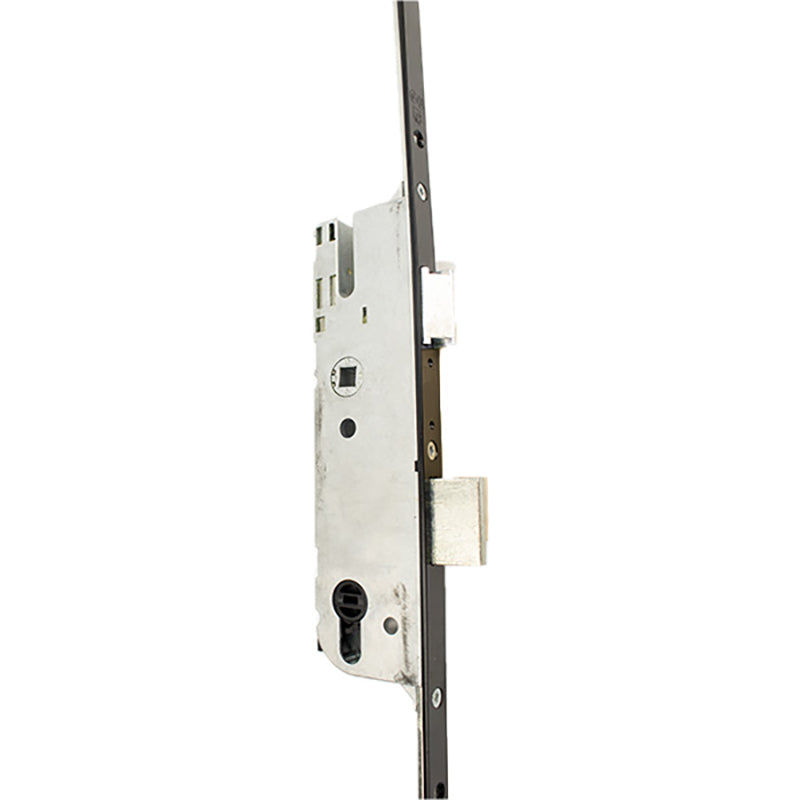

G-U Cremona 3 Point Door Locking Gear with Bottom Shoot-bolt attached
(does not include top Shootbolt or middle extension) - SOLD Separately

Series: Europa - Cremona 3 Point Door Locking Gear with Euro type Key below handle
Handle to Cylinder Spacing (Centers): 3-5/8 inch (92mm)
Cylinder Type : American Cylinder
Handle Position: Key below Handle (Europa)
Backset: 1-3/8 inch (35mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Black Finish - Also available in Stainless Steel

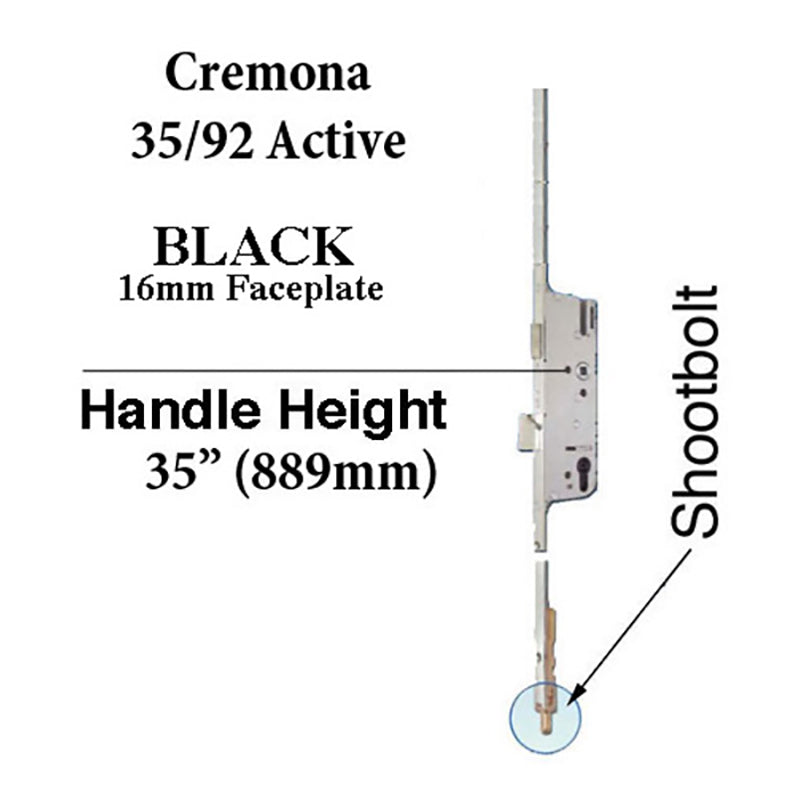

Handle Height: Normally used with 35 Inches (889mm) Handle Height
Spindle Size: 8mm Square

Function: Shootbolt version: Shootbolt locks vertically at top and bottom of door panel
(Top Shootbolt SOLD Separately)
