16mm P1000 Upper/Lower Shootbolt 45/92 Active Assembly, Adjustable Handle Height
Part Number: $249.54Premiere 1000 Series
16mm Upper/Lower 45/92 Shootbolt Active Assembly with Adjustable Handle Height

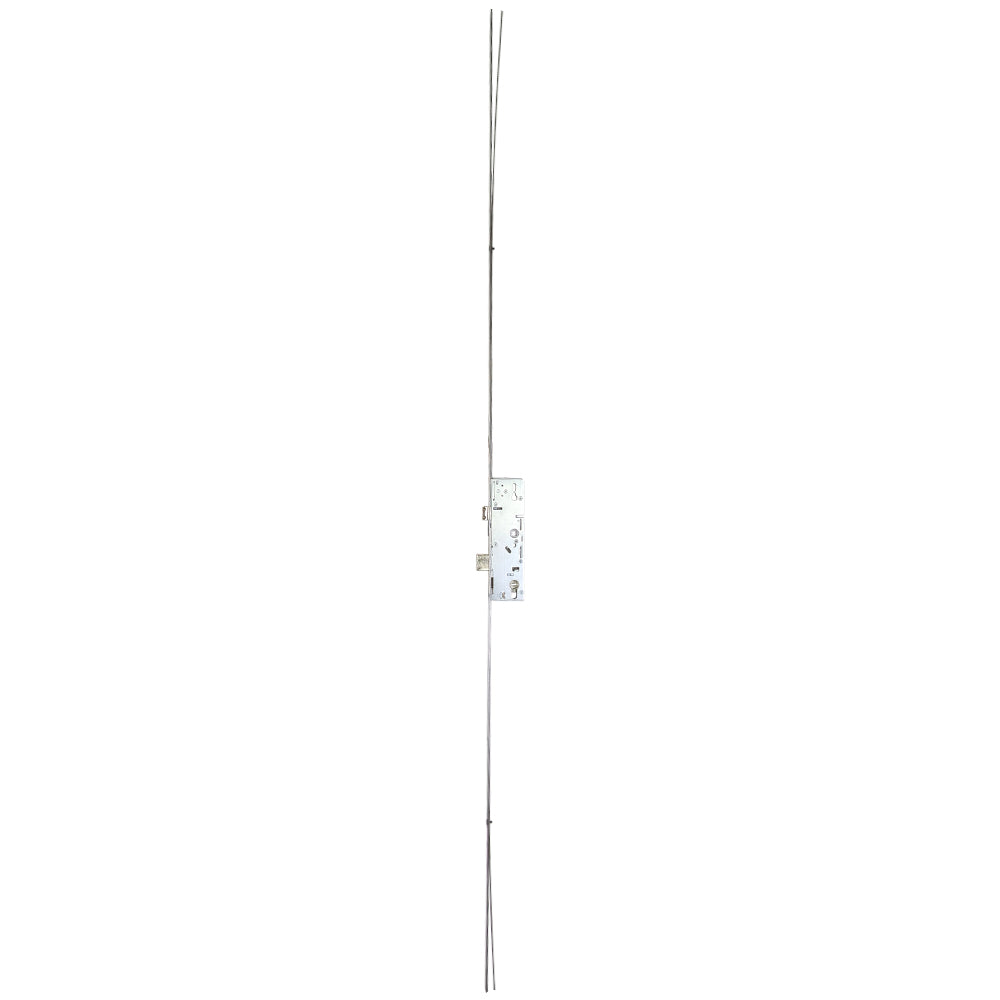

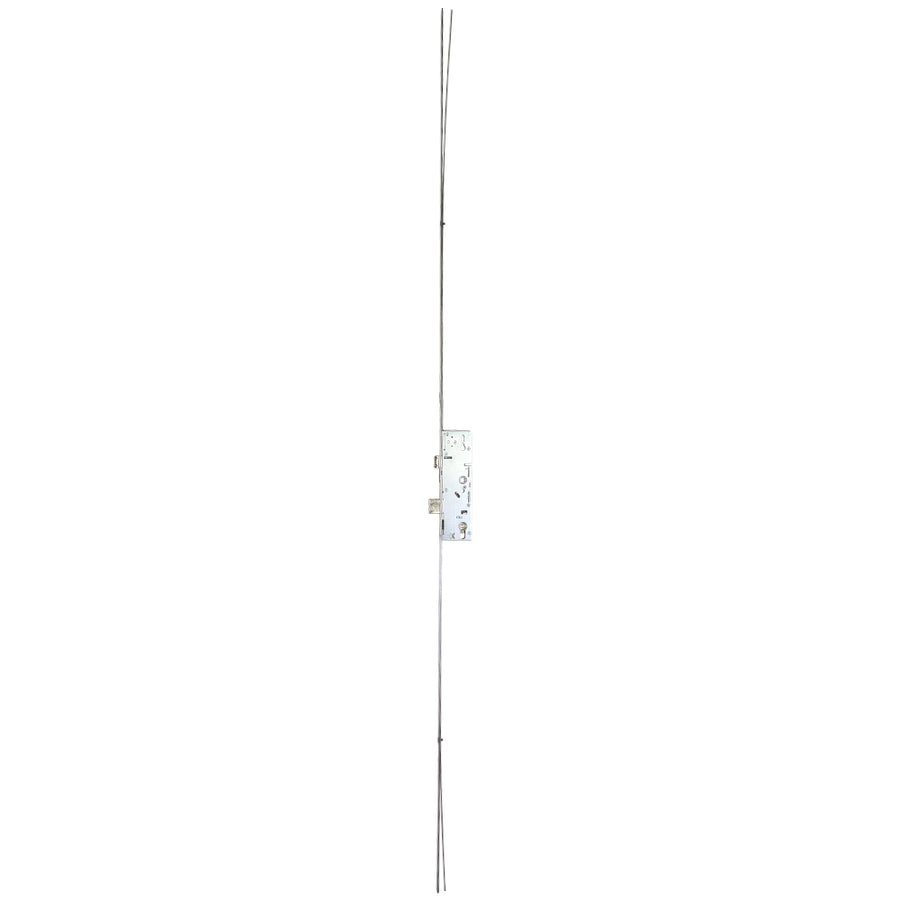

1-piece multipoint lock used with top & bottom shootbolts to achieve a 3-point lock.
- Series: P1000
- Locking Function: Deadbolt with capability for upper & lower shootbolts

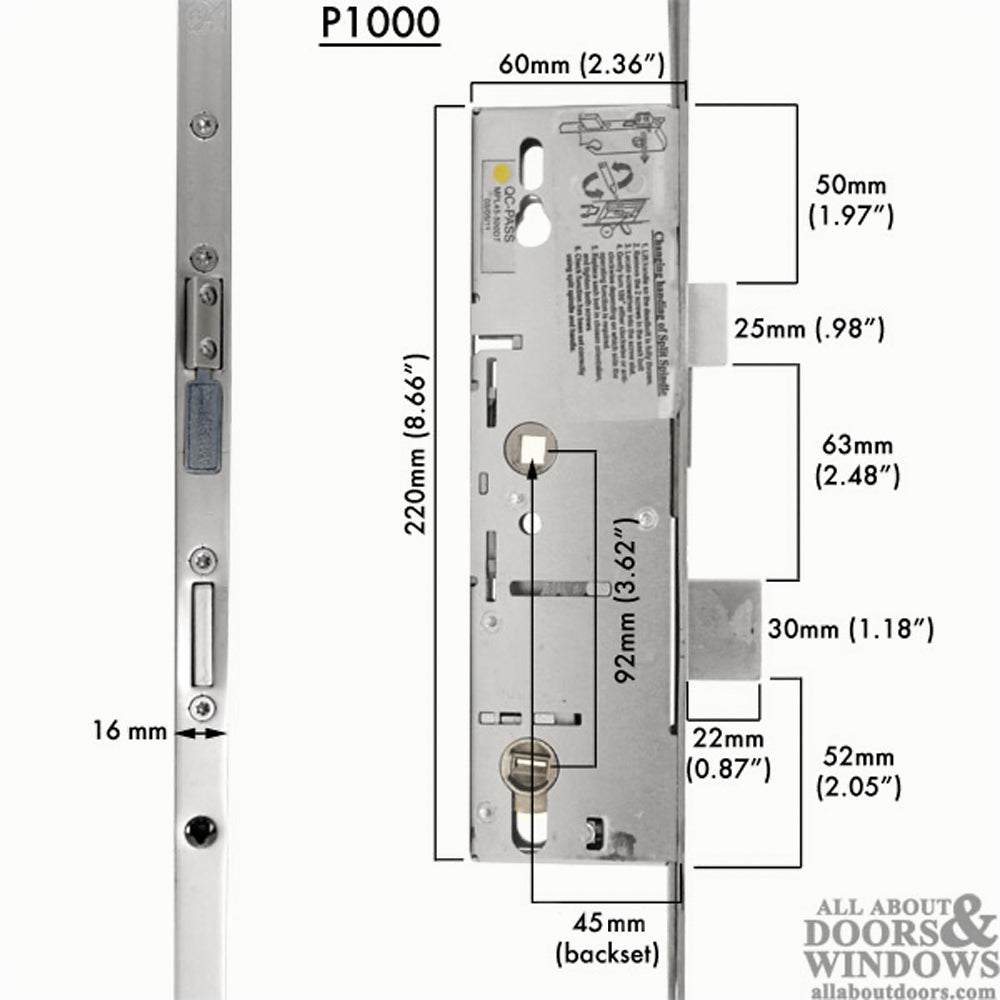

- Overall Length: 68-1/4 inch without shootbolts
- Backset: 1-3/4 inch (45mm)
- Gearbox PZ: American 3-5/8 inch (92mm)
- Faceplate Width: 5/8 inch (16mm)
-
Handle Height:
- Without Shootbolt: 31 inches (Croppable)
- With Shootbolt: 40 inches (Croppable)

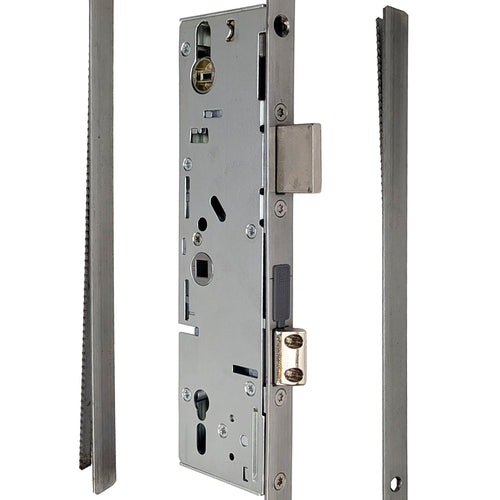

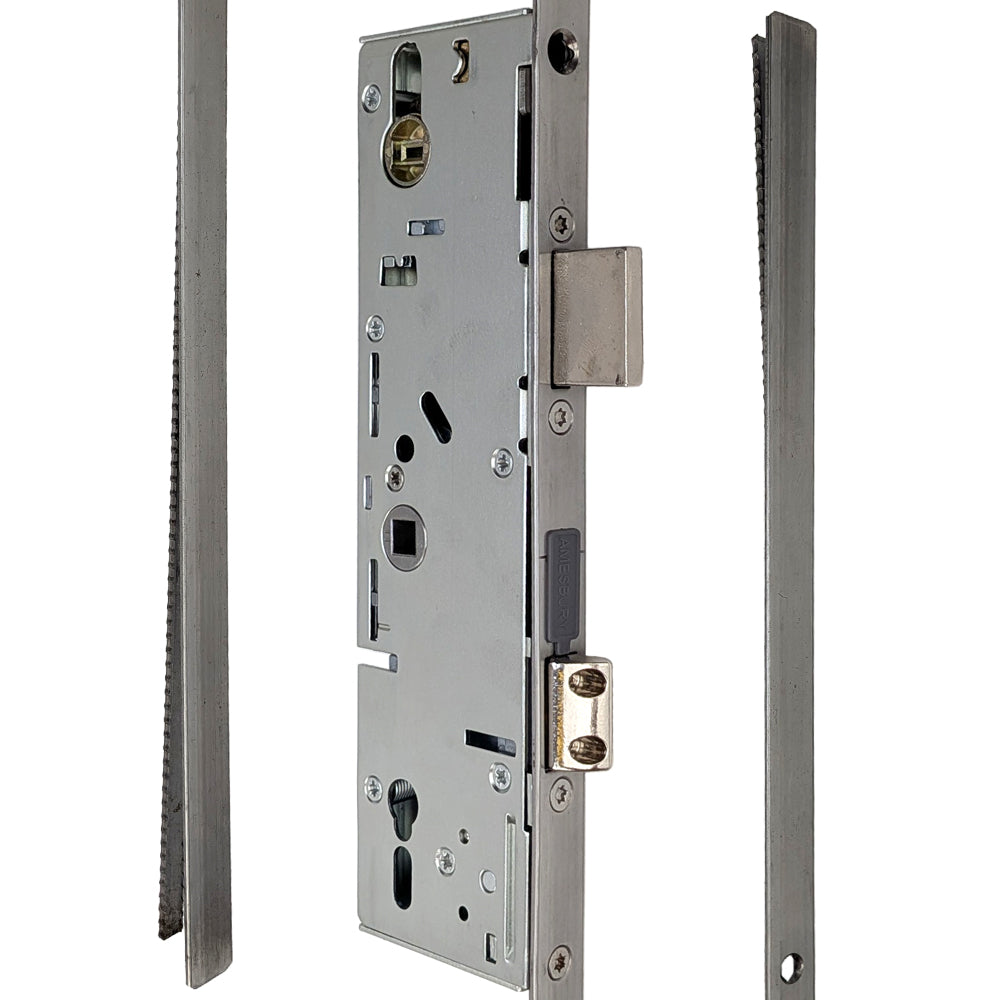

- Shootbolt Teeth: Yes (This can be converted into a 3-point lock by adding shootbolts)
-

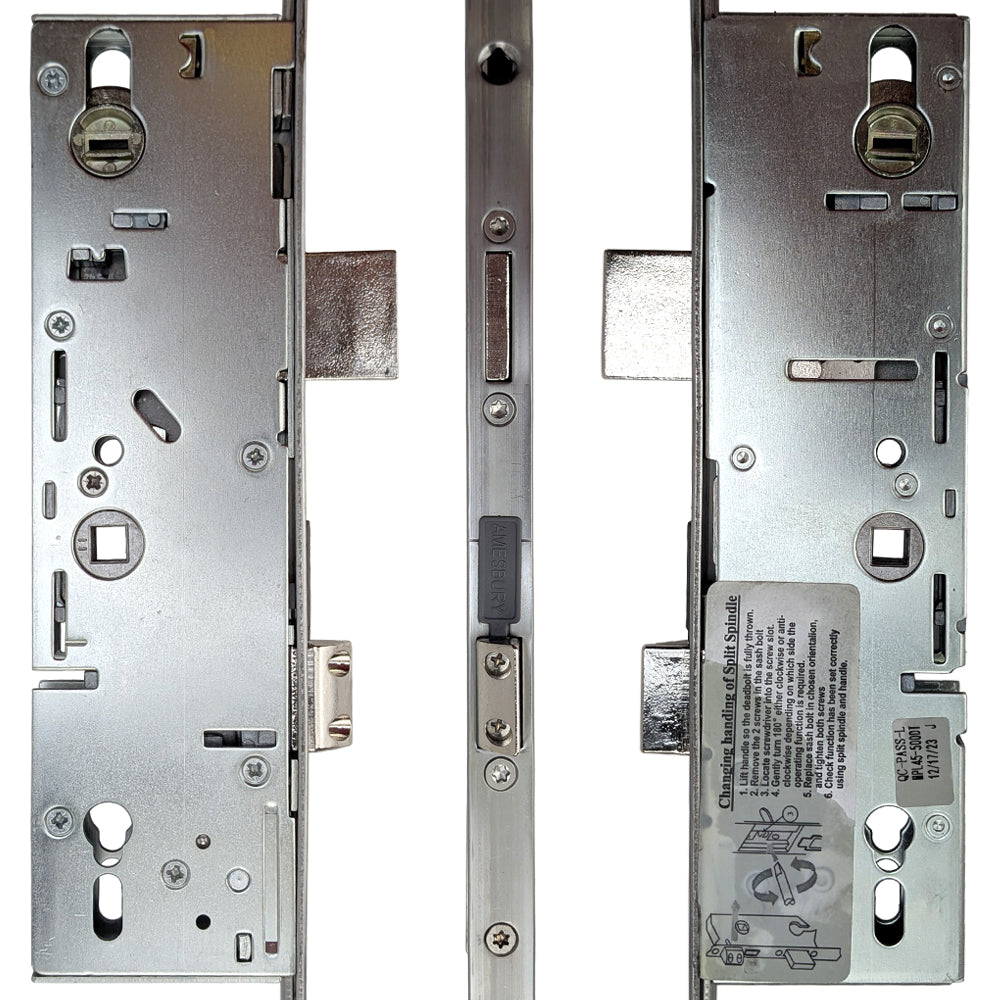

Case Markings:
- Faceplate: 1994
- Back: 1994L 1994U
To Change Handing:Lift handle to fully extend deadbolt. Remove the 2 screws in the latch bolt. Reverse the spring latch tip. Replace the 2 screws back into the latch bolt. Check function before closing door to ensure the lock is working correctly. Lock Operation: To Lock Door: Lift the handle up to lock the door and turn thumbturn to secure in locked position. When the handle is lifted, the deadbolt will extend along with other locking devices.To Unlock Door: Turn thumb turn or key to unlocked position and push down on lever.
