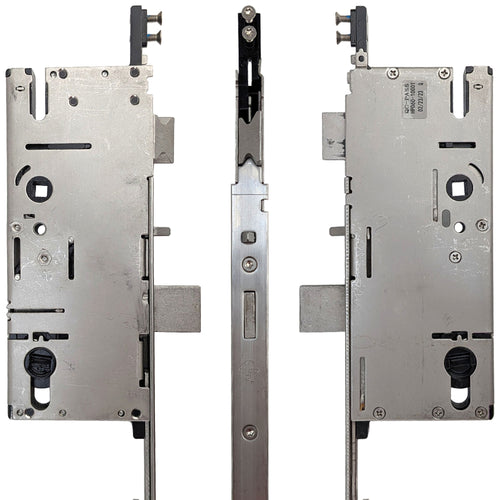

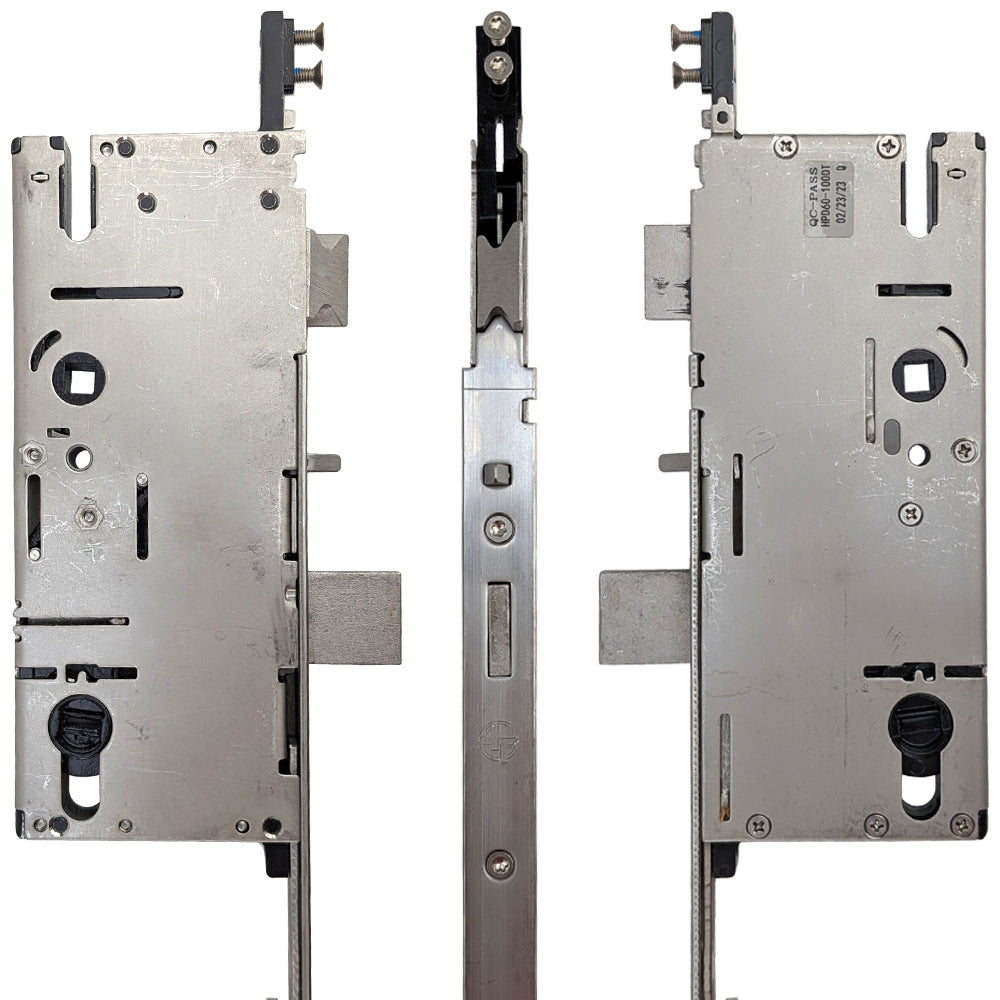

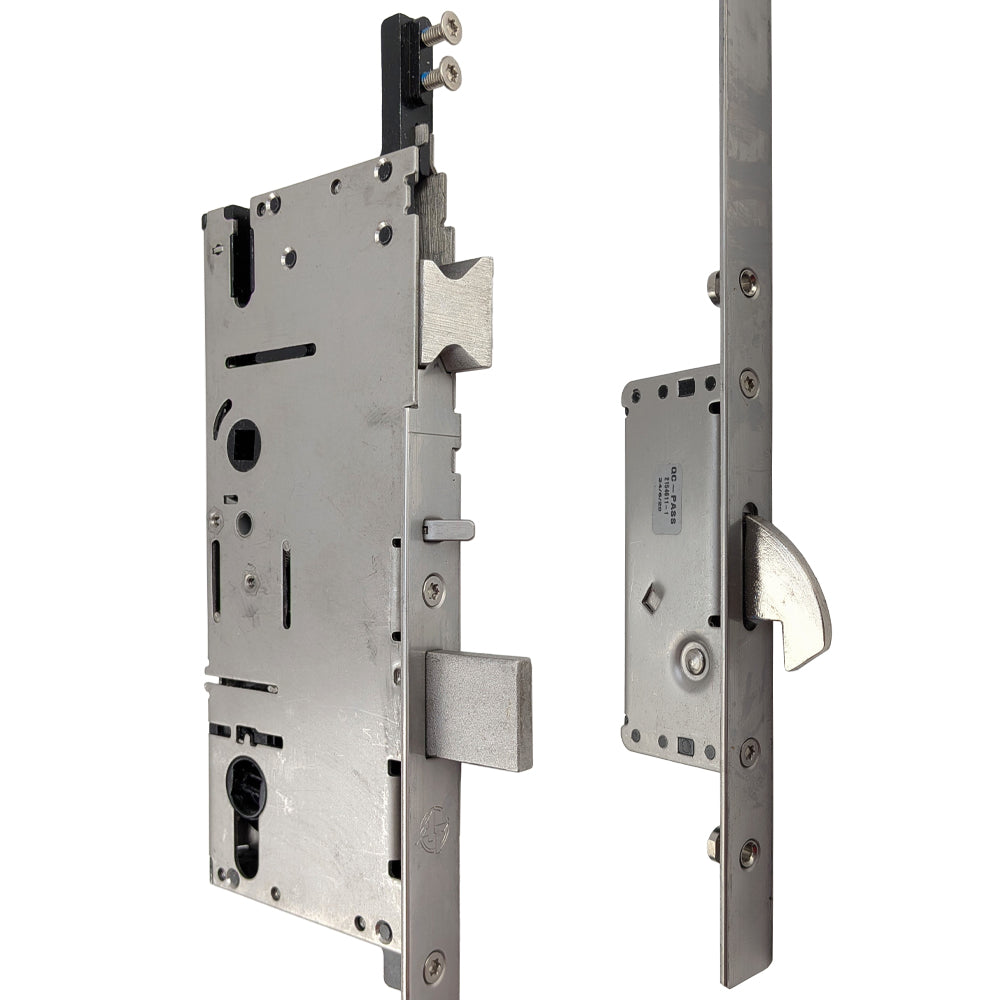

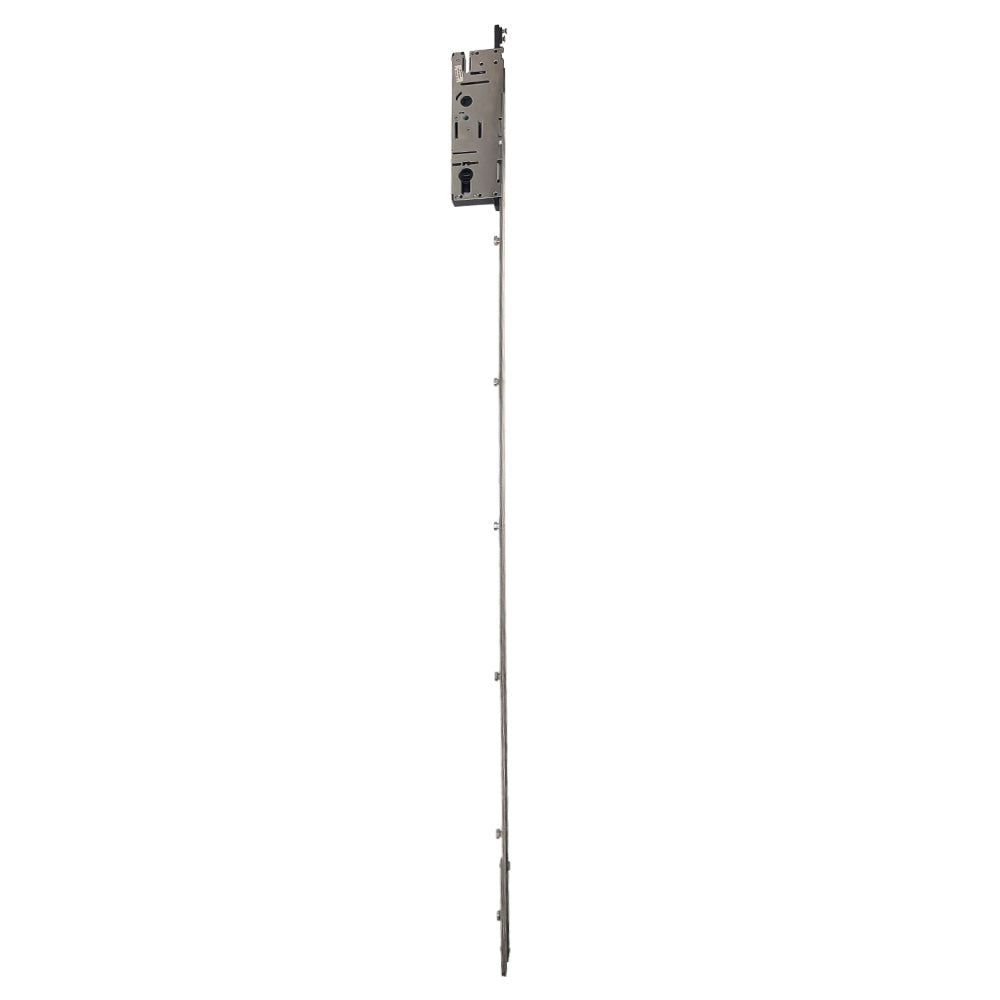

AmesburyTruth Premiere 2000 Passive Lower Assembly

American Cylinder Version with Shootbolt

Bottom gear with shootbolt attached. Top shootbolt and middle extension sold separately, see related items below.

Custom passive gear for use with Winkhaus active hook replacements

This passive gear can be used on doors with or without astragals (when the locks are face to face).

When the active door deadbolt extends into the passive gear box, it restricts movement of the top and bottom shootbolts

• Series:  P2000
• Cylinder Type:  American
• Faceplate Width:  16mm (5/8 inch)
• Backset:  45mm (1.75 inches)
• PZ (Distance from center-of-spindle to center-of-cylinder):  92mm (3-5/8 inches)
• Markings:
  • Front:  LF2037
  • Back:  LD2037
• Handle Height:  38.559" Custom
