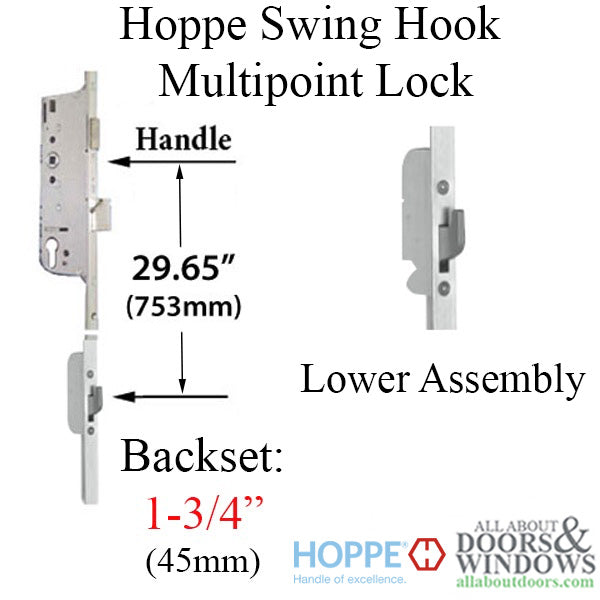

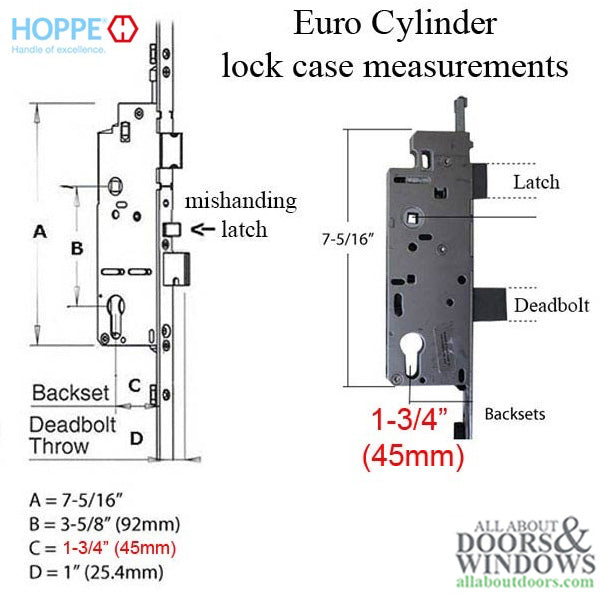

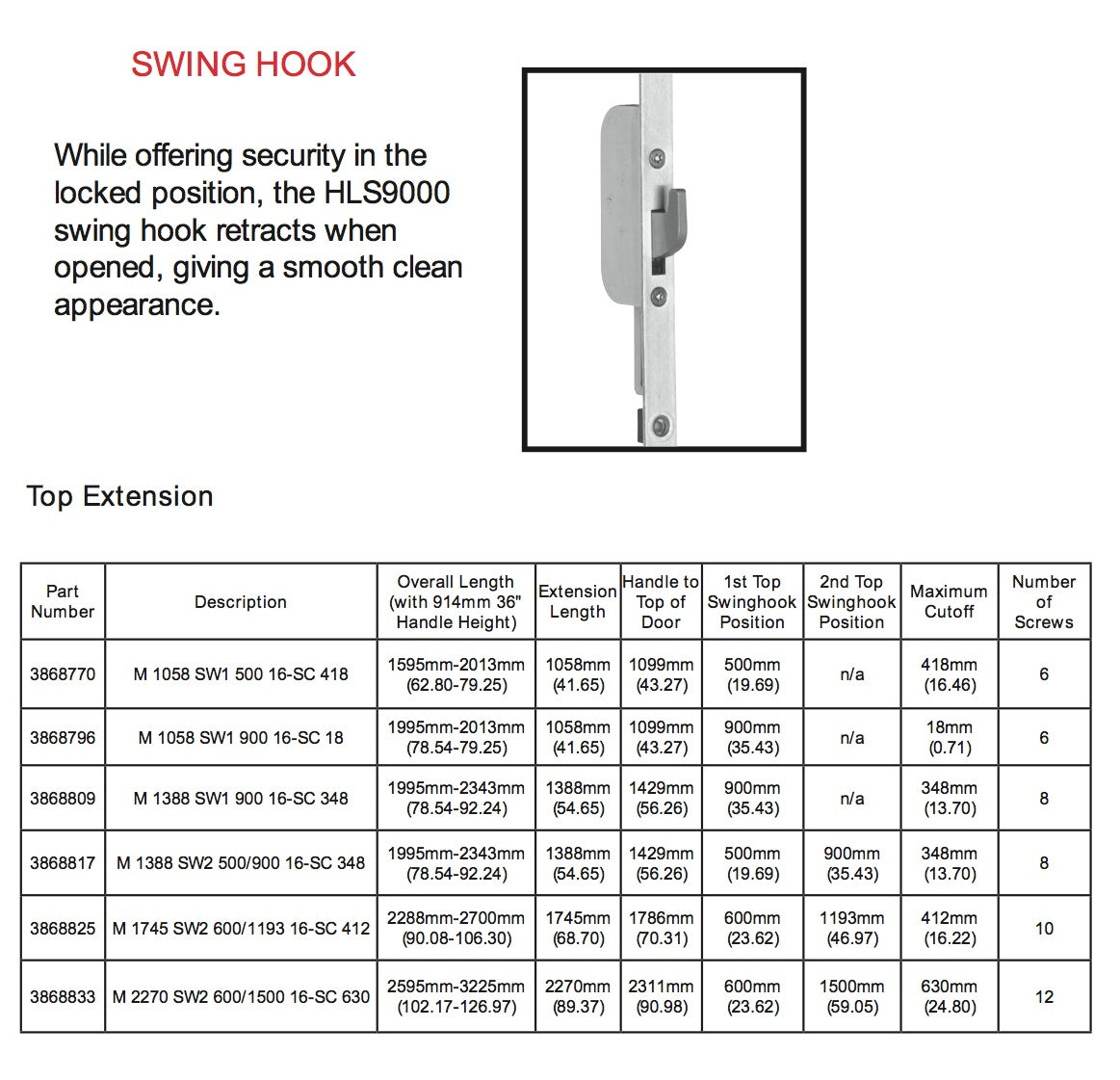

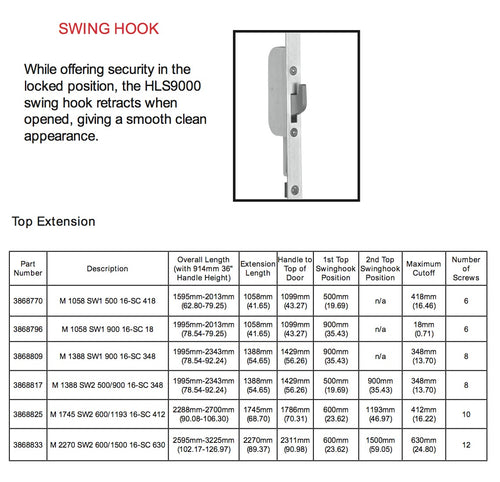

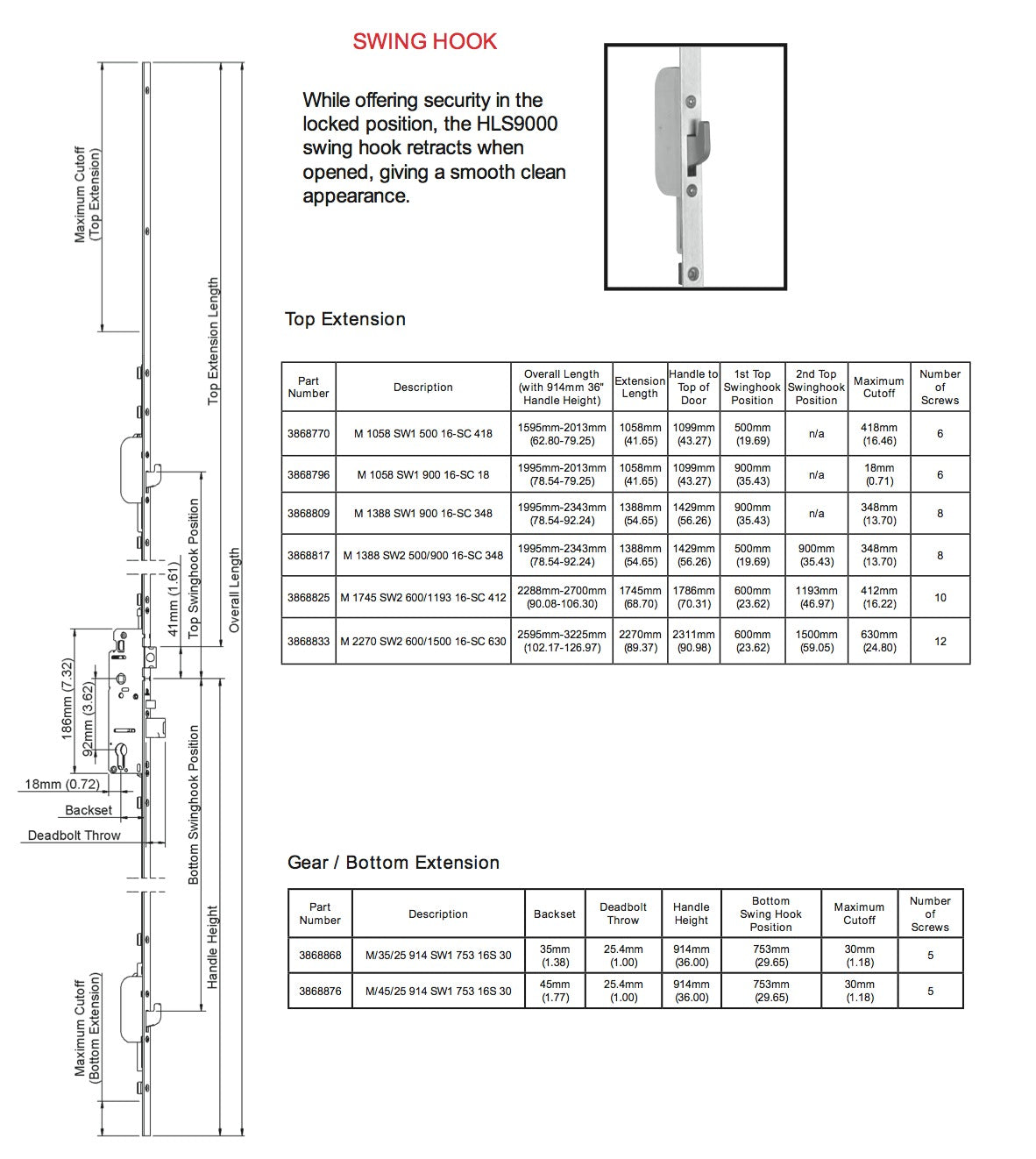

<p>HOPPE M/45/25 914 SW1 753 16S 30<br>16mm Active Swing Hook, 45/92 bottom locking Hook at 29.65<br><br>Backset: 1-3/4" (45mm)<br>Deadbolt Throw: 1" (25.4mm)<br>Handle Height: 36" (914mm)<br>Bottom Swing Hook Position: 29.65" (753mm)<br>Maximum Cutoff: 1-1/8" ( 30mm)<br>Number of Screws: 5<br><br>This is the bottom Gear assembly with swing hook attached.<br>Used with Top Hook Extension to complete a 3-point lock<br><br><strong>Related Parts:</strong><br>Available Bottom Gears: Hook at 29.65"<br><a href="https://www.allaboutdoors.com/16mm-Active-Swing-Hook-35-92-Hook-at-29.65">3868868</a> - 35/92 / 1-3/8" (35mm) Backset<br>3868876 - 45/92 / 1-3/4" (45mm) Backset<br><a href="https://www.allaboutdoors.com/16mm-Active-Swing-Hook-60-92-Hook-at-29-65">3868884</a> - 60/92 / 2-3/8" (60mm) Backset<br><a href="https://www.allaboutdoors.com/16mm-Active-Swing-Hook-70-92-Hook-at-29-65">3868892</a> - 70/92 / 2-3/4" (70mm) Backset<br><br><u>SPECIAL SIZE</u> Hook @ 25.7" / 41.11" Handle Height - <a href="https://www.allaboutdoors.com/16mm-Active-Swing-Hook-60-92-Hook-25.70-handle-height-41.11">3814341</a><br><br>Available Top Extensions<br>Part Number Doors Panels Height: Hook Position <br><a href="https://www.allaboutdoors.com/16mm-Top-Extension-Doors-62.80-79.25-Swing-Hook-19.69">3868770</a> - Doors 62.80-79.25” hook @ 19.69“<br><a href="https://www.allaboutdoors.com/16mm-Top-Extension-Doors-78.54-79.25-Swing-Hook-35.43">3868796</a> - Doors 78.54-79.25” hook @ 35.43“<br><a href="https://www.allaboutdoors.com/Top-Extension-Doors-78.54-92.24-Swing-Hook-35.43">3868809</a> - Doors 78.54-92.24” hook @ 35.43“<br><a href="https://www.allaboutdoors.com/16mm-Top-Extension-Swing-Hook-19-69-35-43">3868817</a> - Doors 78.54-92.24” hook @ 19.69“ & 35.43”<br><a href="https://www.allaboutdoors.com/16mm-Top-Extension-Swing-Hook-23-62-46-97">3868825</a> - Doors 90.08-106.30" hook @ 23.62“ & 46.97”<br><a href="https://www.allaboutdoors.com/16mm-Top-Extension-Swing-Hook-23.62-59.05">3868833</a> - Doors 102.17 - 126.97” hook @ 23.62“ & 59.05”<br><br>To better understand please see our <a href="https://www.allaboutdoors.com/Article-Multipoint-Lock-Glossary-of-Terms" target="_blank">Multipoint Lock Glossary Of Terms</a><br><br><strong>Hoppe Multipoint Lock Resources:</strong><br><a href="https://www.allaboutdoors.com/Article-Multipoint-Lock-Introduction" target="_blank">Multipoint Lock Introduction</a><br><a href="https://youtu.be/0l9w2W90jZk" target="_self">How to Rehand a Hoppe HLS9000 MPLock</a><br><a href="https://www.youtube.com/watch?v=-iYGy4irYi8" target="_blank">How to Remove & Install Hoppe 90° Cylinder</a><br><a href="https://www.youtube.com/watch?v=mJ0qeEO2IoU" target="_blank">How to Remove & Install Hoppe HLS9000 MPLock</a><br><a href="https://www.allaboutdoors.com/Article-Guide-to-Trimming-HOPPE-Multipoint-Locks" target="_blank">How to Trim a Hoppe Multipoint Lock</a><br><a href="https://www.allaboutdoors.com/Articles/Multipoint-Lock-Articles/Fuhr-Multi-Point-Locks" target="_blank">HOPPE/FUHR Infosheet</a><br><br><strong>Related Videos:</strong><br><a href="https://www.allaboutdoors.com/video-connecting-the-top-extension-on-a-hoppe-multipoint-lock">Connecting the Top Extension on a HOPPE Multipoint Lock</a><br><a href="https://www.allaboutdoors.com/video-how-to-convert-a-hoppe-90-cylinder-into-a-360-cylinder">How to Convert a HOPPE 90º Cylinder into a 360º Cylinder</a><br><a href="https://www.allaboutdoors.com/video-how-to-rehand-hoppe-multipoint-lock">How to Rehand HOPPE Multipoint Lock</a><br><br>For further assistance, please fill out the <a href="https://www.allaboutdoors.com/pdf/articles/hoppeworksheet.pdf" target="_blank">HOPPE Worksheet</a> for your lock and <a href="https://www.allaboutdoors.com/contact-us" target="_blank">send it to us.</a><br> </p>
