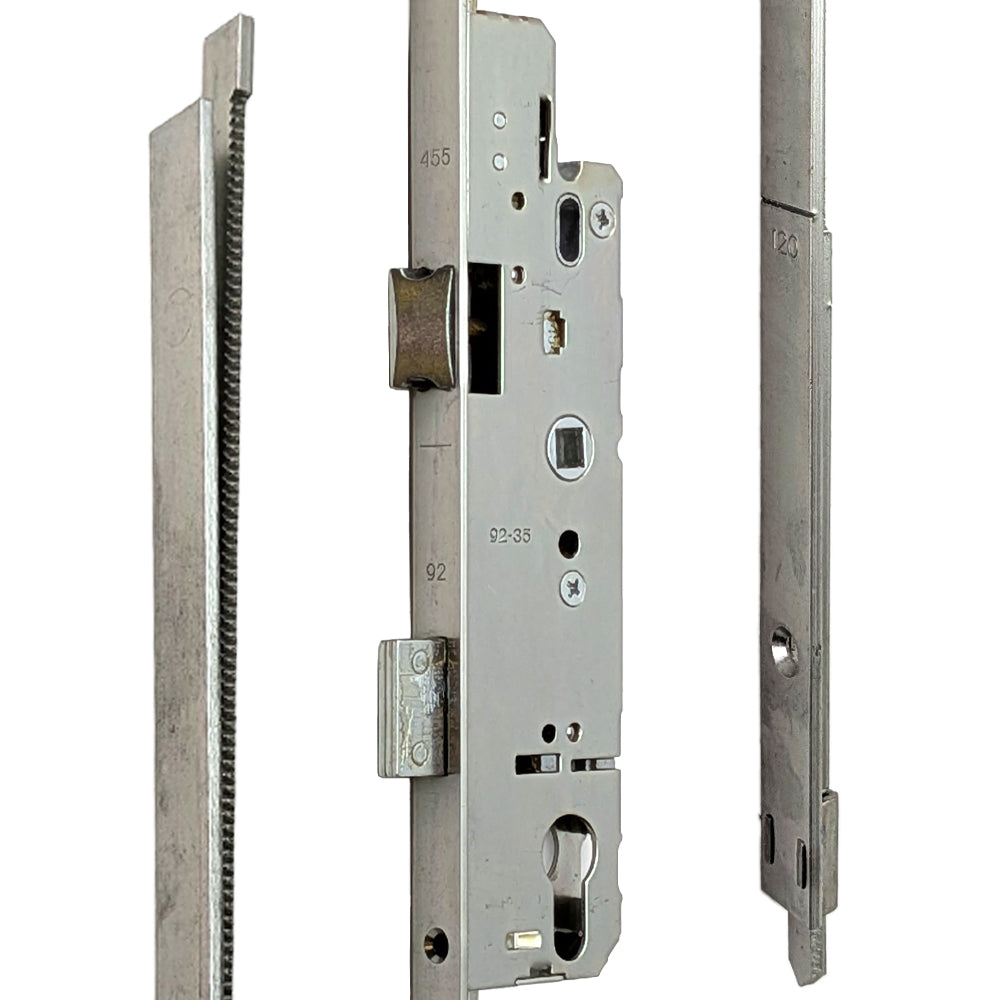

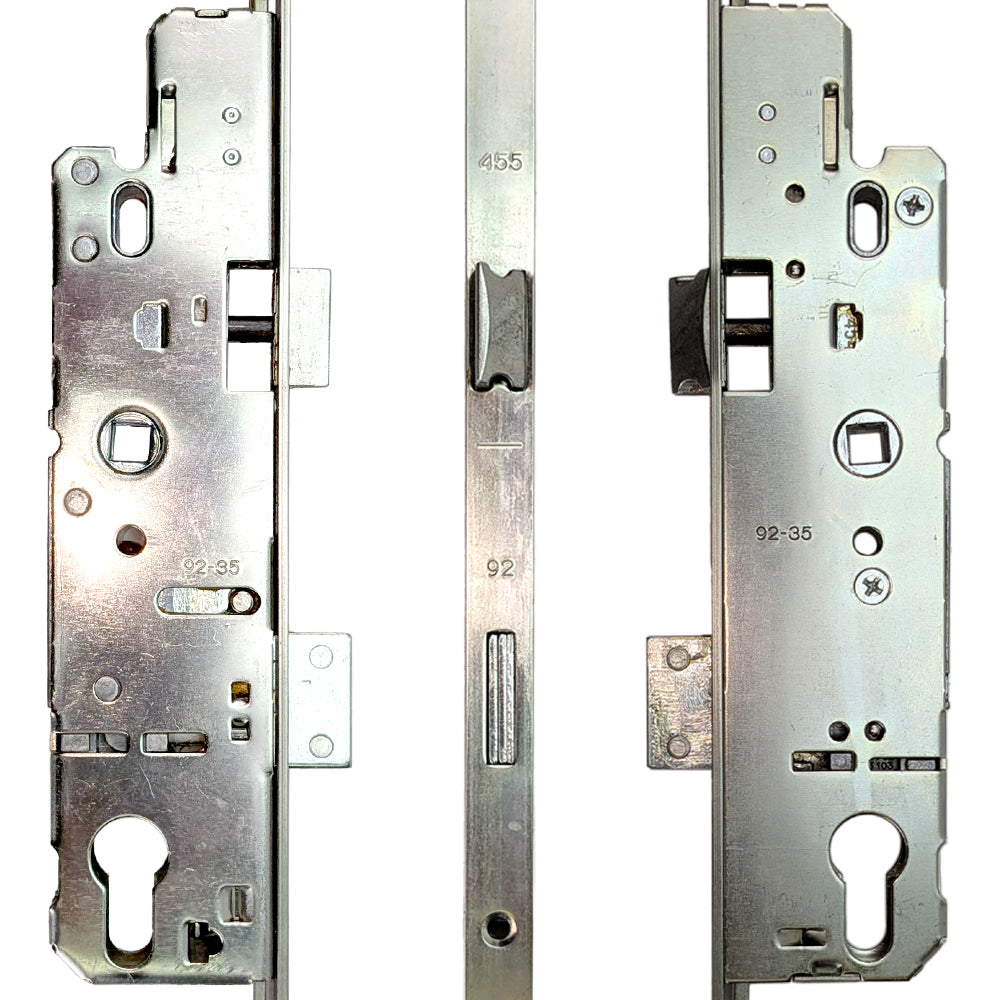

AGB Unitop Multipoint Lock

Lift handle to activate, extending the deadbolt simultaneously with the top and bottom shootbolts.


• Brand: AGB
• Model: Unitop 3-point lock
• Locking Points:
  • Deadbolt
  • Top Shootbolt
  • Bottom Shootbolt
• Faceplate Width: 16 mm (5/8 inch)
• Cylinder Type: Euro Profile
• Backset: 35mm (1-3/8 inches)
• PZ (Distance from handle to cylinder): 92 mm (3-5/8 inches)
• Door Height: 1800-2100 mm (70-7/8 - 82-11/16 inches)
• Handle Height: 1050 mm (41-5/16 inches)
  • Standard: 1050 mm (41-5/16 inches) with shootbolt attached
  • Minimum: 948 mm (37-5/16 inches) by cutting lock face and adding bottom shootbolt
  • Maximum: 1150 mm (45-5/16 inches) by adding shootbolt

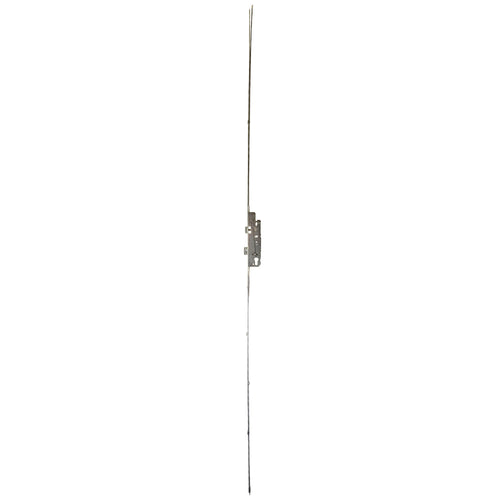

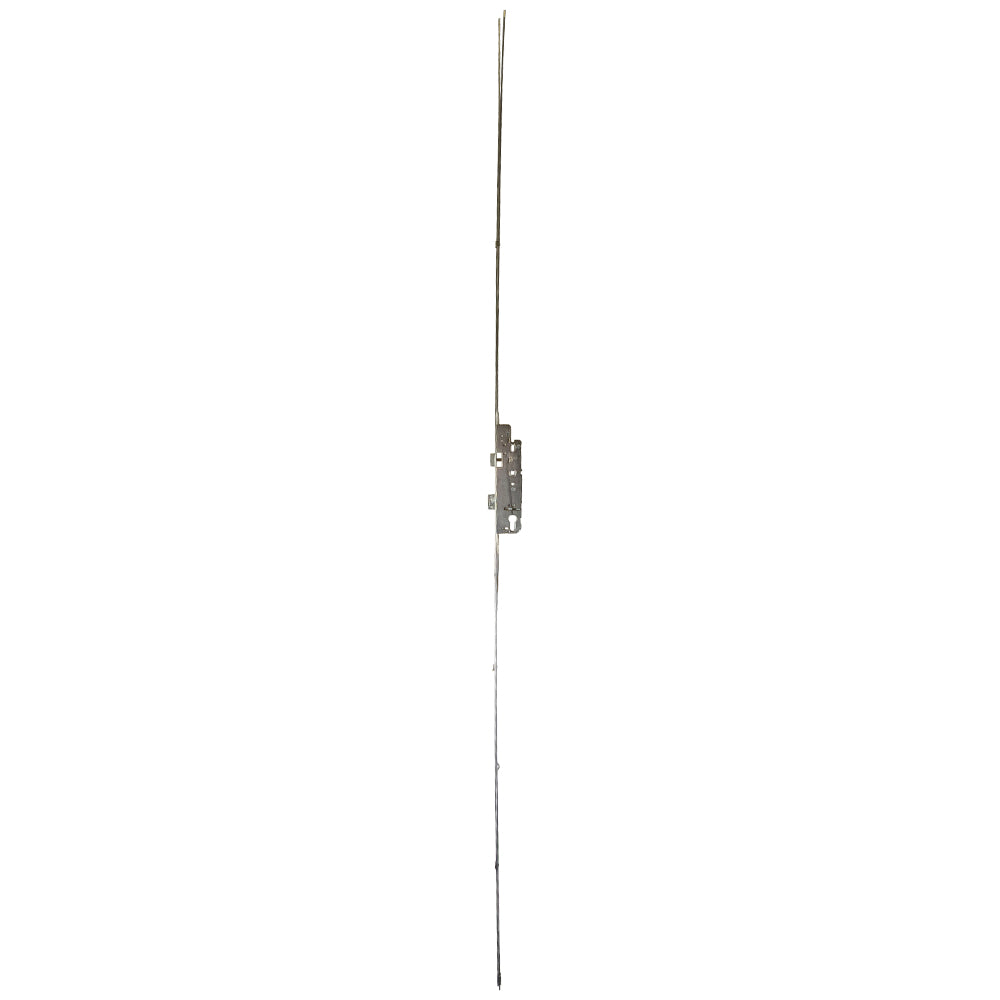

• Overall Faceplate Length: 1920 mm (75-5/8 inches)
• Key Position: Below lever
