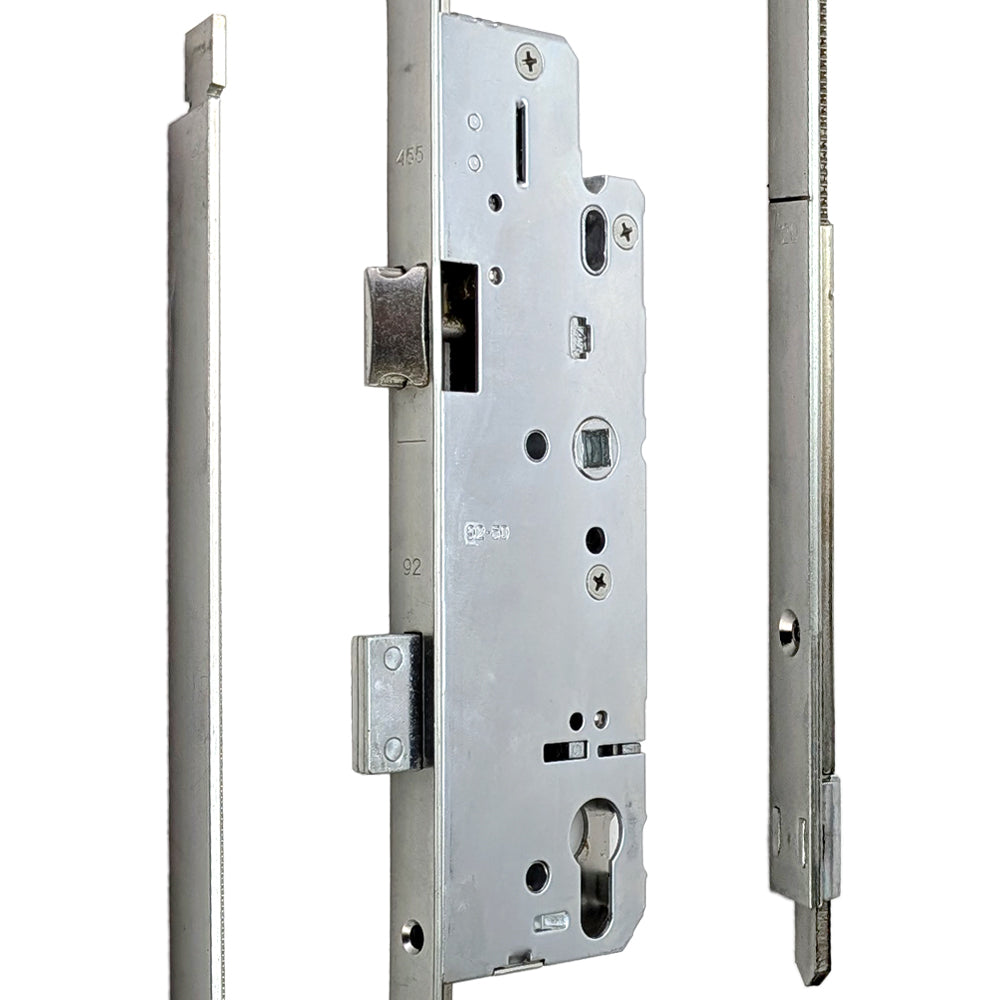

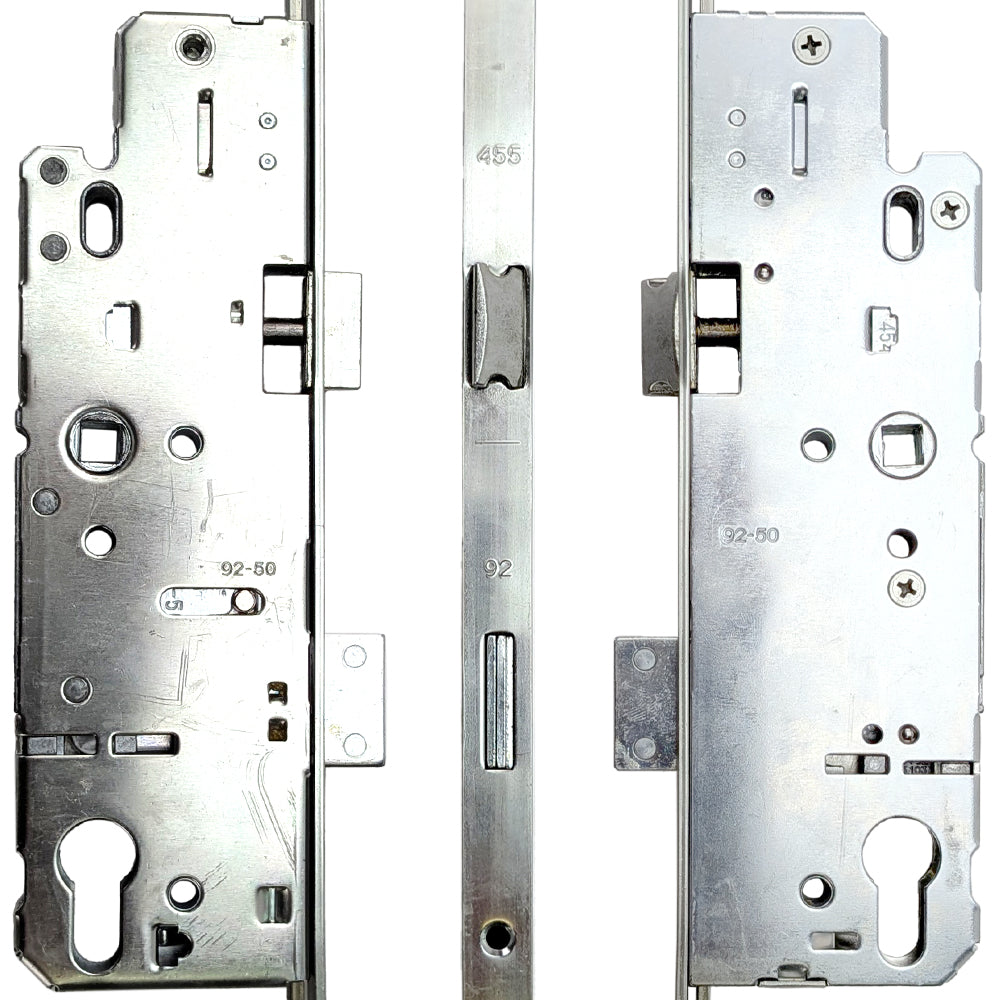

AGB Unitop 16mm Multipoint Lock 50/92 Active Assembly with Shootbolts, 41-5/16 inch handle height - Silver

AGB Unitop Multipoint Lock

Lift handle to activate, extending the deadbolt simultaneously with the top and bottom shootbolts.

• Brand: AGB
• Model: Unitop 3-point lock
• Locking Points:
  • Deadbolt
  • Top Shootbolt
  • Bottom Shootbolt
• Faceplate Width: 16mm (5/8 inch)
• Cylinder Type: Euro Profile
• Backset: 50mm (2 inches)
• PZ (Distance from handle to cylinder): 92mm (3-5/8 inches)
• Handle Height: 1050mm (41-5/16 inches)
  • Standard: 1050mm (41-5/16 inches) with shootbolt attached
  • Minimum: 948mm (37-5/16 inches) by cutting lock face and adding bottom shootbolt
  • Maximum: 1150mm (45-5/16 inches) by adding shootbolt
• Overall Faceplate Length: 1920mm (75-5/8 inches)
• Key Position: Below lever

The bottom has a built in shootbolt that can be cut off. It will cut off about 1-1/4" from the bottom and use the screw hole at 1-3/4" from the bottom. You can see the serrated teeth for adding a bottom shootbolt at different heights
