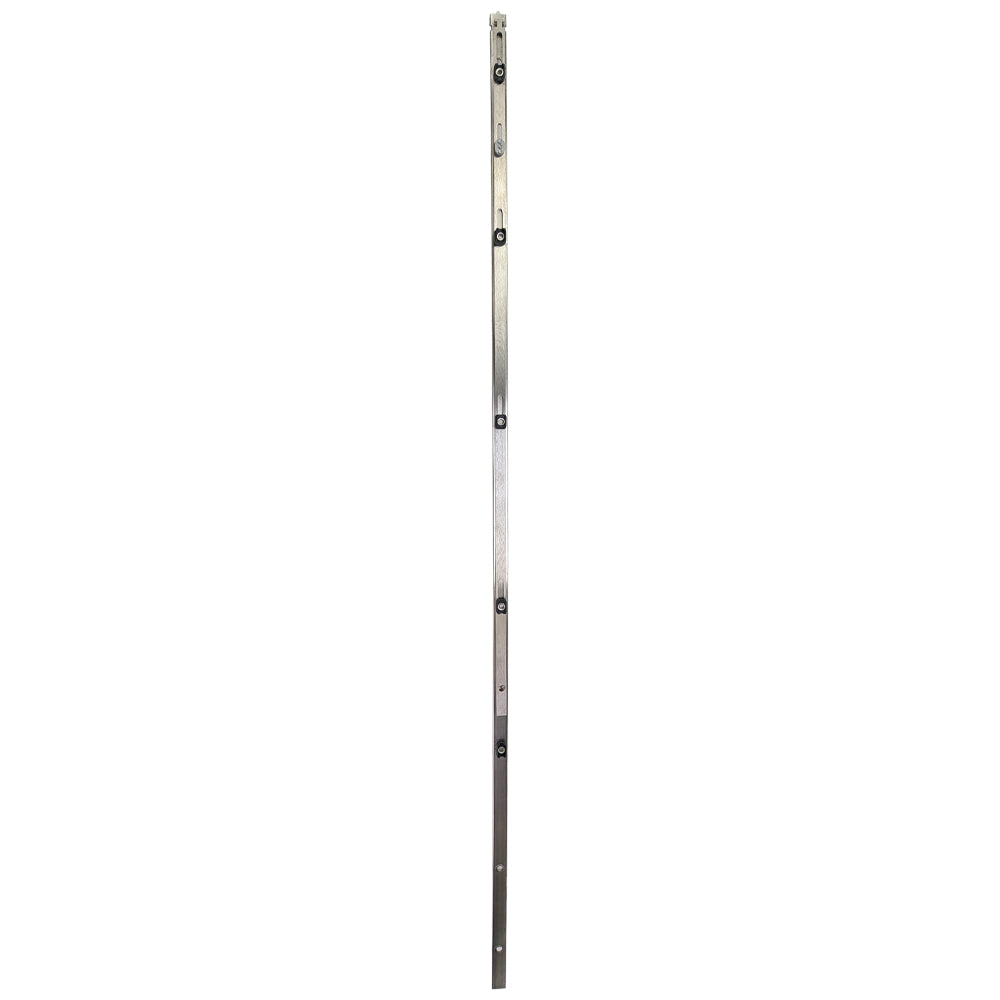

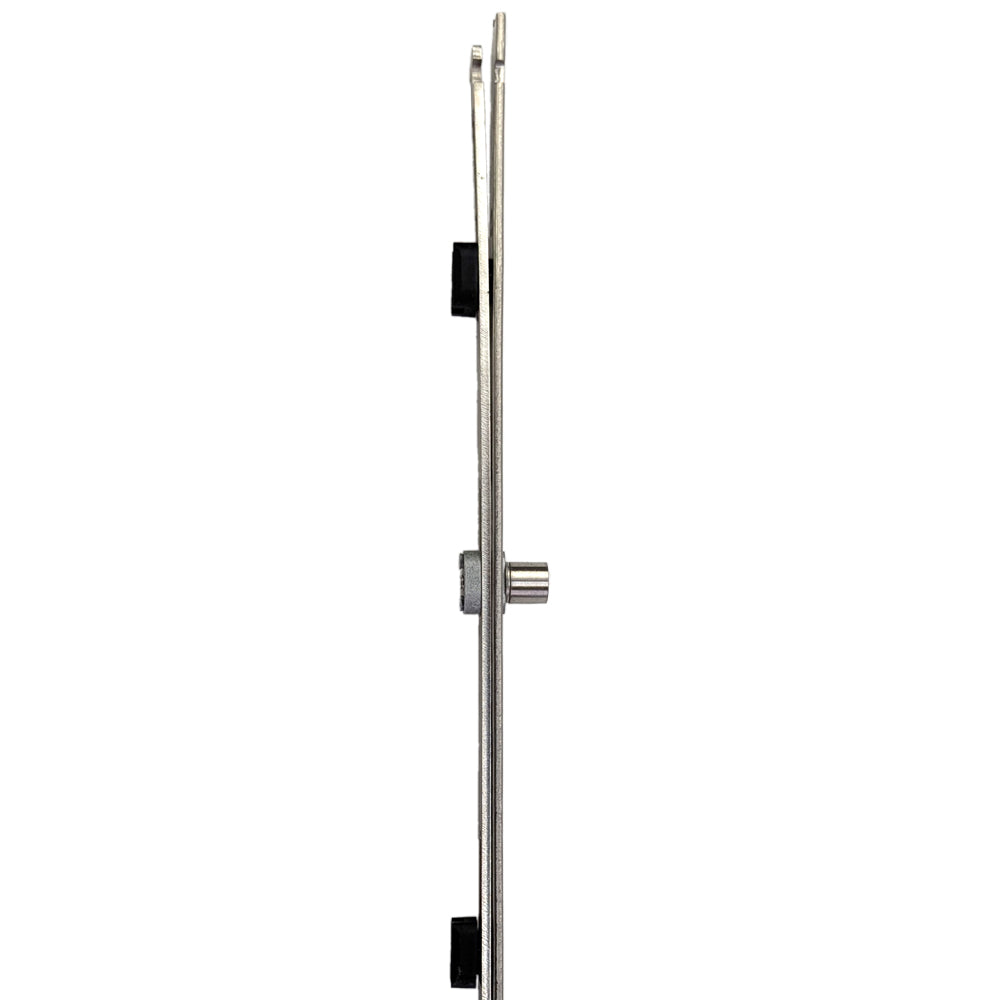

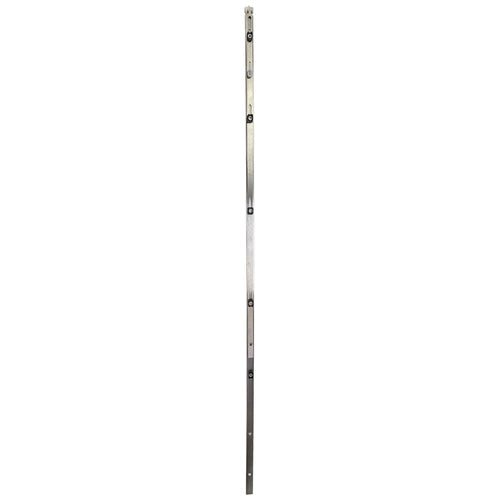

HLS9000 Two Roller Top Extension
Automatic Locking Version
- Function: Automatic Roller

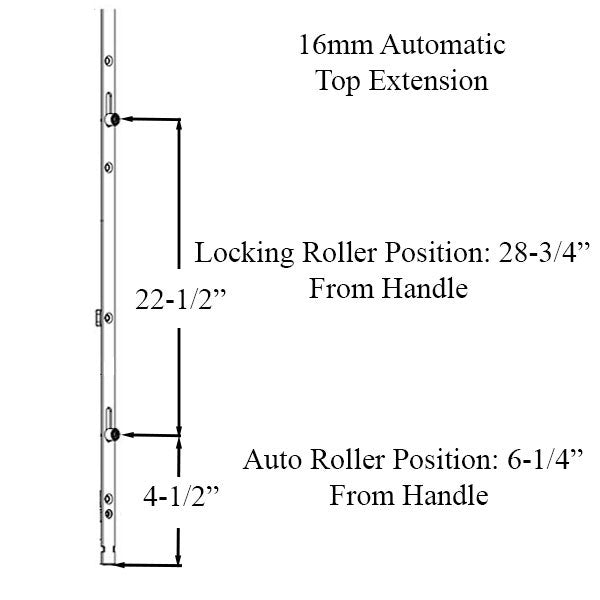

- Auto Roller Position: 6.54 inches above handle
- Faceplate Width: 5/8 inch (16mm)
- Fits Overall Length (with 36 inch handle Height): 67.91-78.74 inches

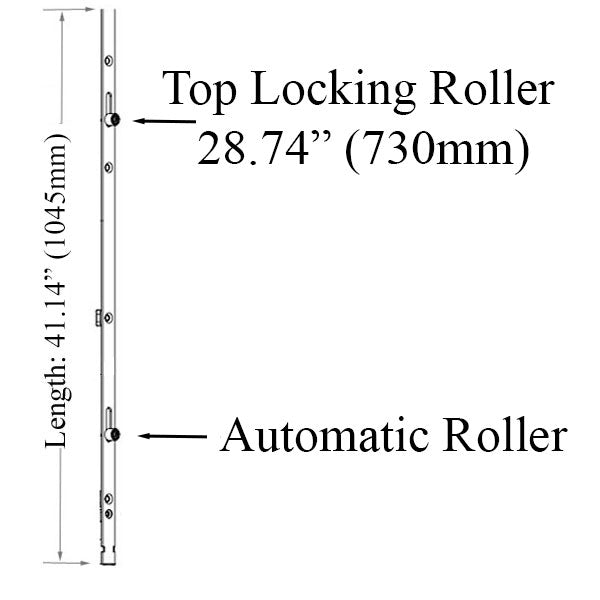

- Extension Length: 41.14 inches
- Handle Height:
- To top of door: 42.76 inches
- To bottom of door: 36 inches.
- Top Roller Position: 28.74 inches
- Maximum Cut-off: 10.83 inches.
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Top Extension, HLS9000 Two Roller, Automatic Locking Version. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Faceplate Width: 5/8 inch (16mm) </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Fits Overall Length (with 36 inch handle Height) 67.91-78.74 inches </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Extension Length: 41.14 inches. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Handle Height: to top of door, 42.76 inches. </p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Handle Height: to Bottom of door, 36 inches.</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Top Roller Position 28.74</p>
<p style="margin: 0px; font-size: 12px; line-height: normal; font-family: Arial;">Maximum cut off: 10.83 inches.</p>
