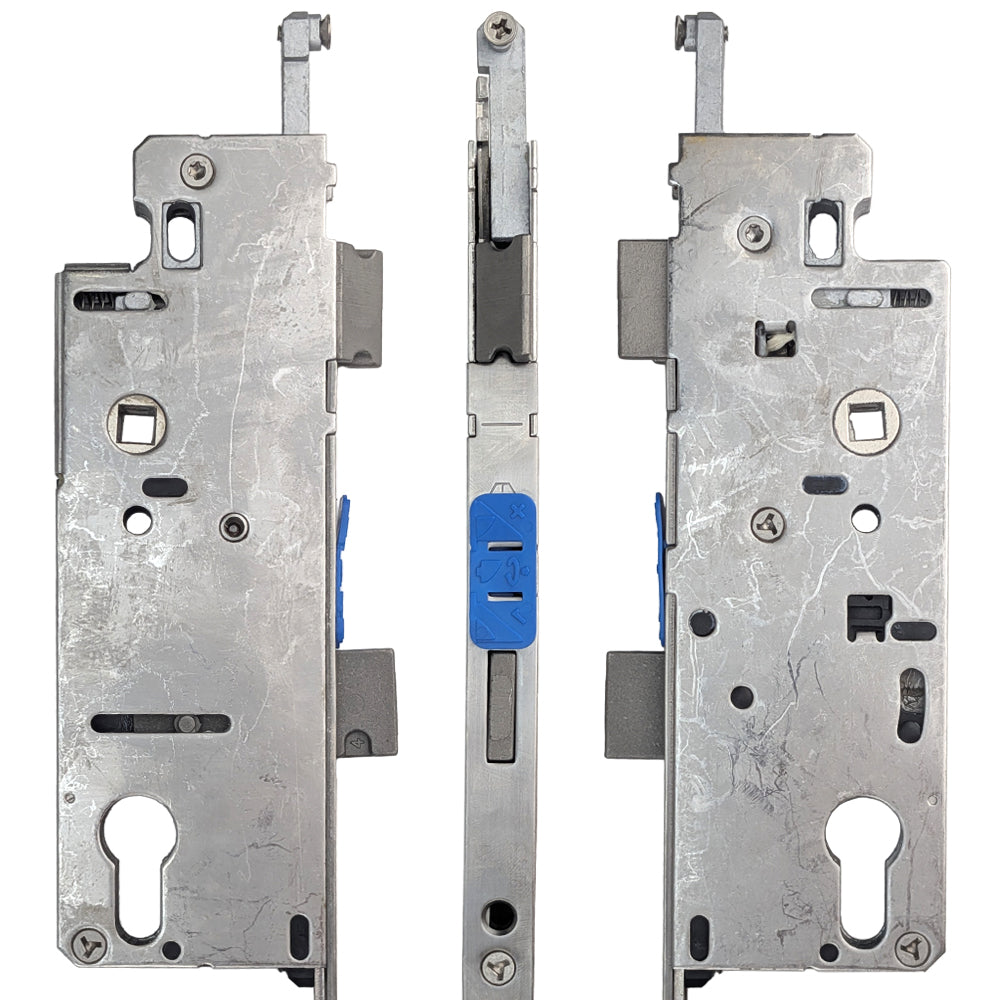

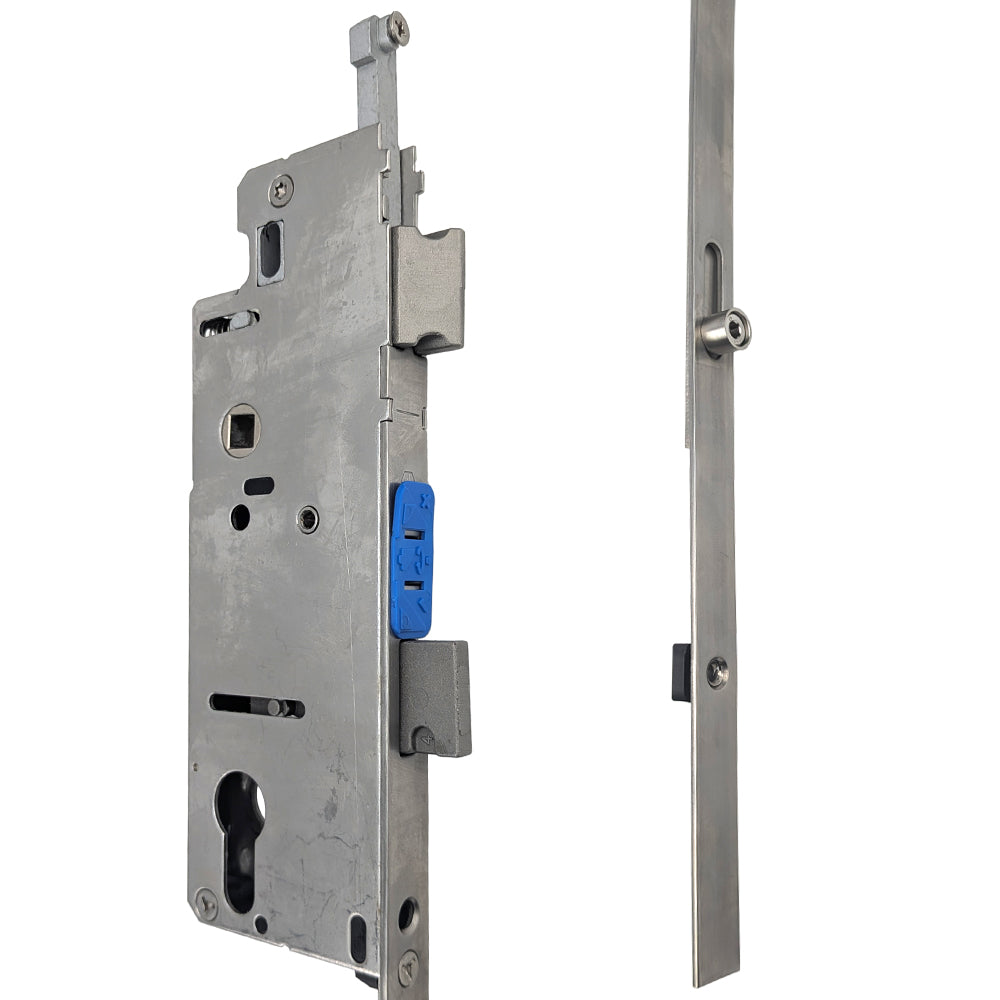

HOPPE 16mm Bottom Gear

Active 45/92 Gear – Four Roller Version

The four-roller version offers the same benefits as the two-roller version, plus two additional locking points for stronger security and tighter weather sealing.

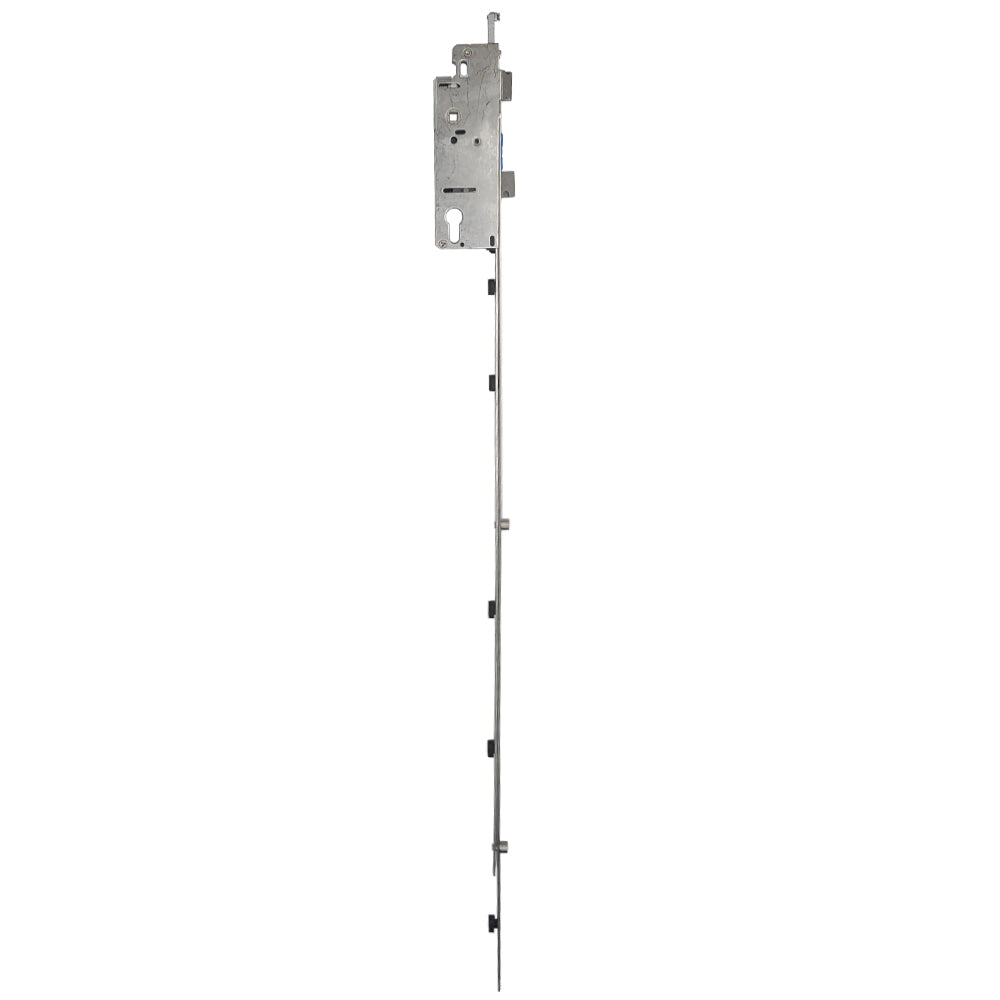

This lower gear includes the two bottom rollers; the two upper rollers will be part of a top extension – sold separately to accommodate various door heights. Please see Related Items below for possible options to construct your HOPPE multi-point lock.

Specifications:

• Faceplate Width:  16 mm (5/8 inch)
• Backset:  45 mm (1-3/4 inches)
• PZ (Distance from center-of-spindle to center-of-cylinder):  92 mm (3-5/8 inches)
• Deadbolt Throw:  14 mm (9/16 inch)

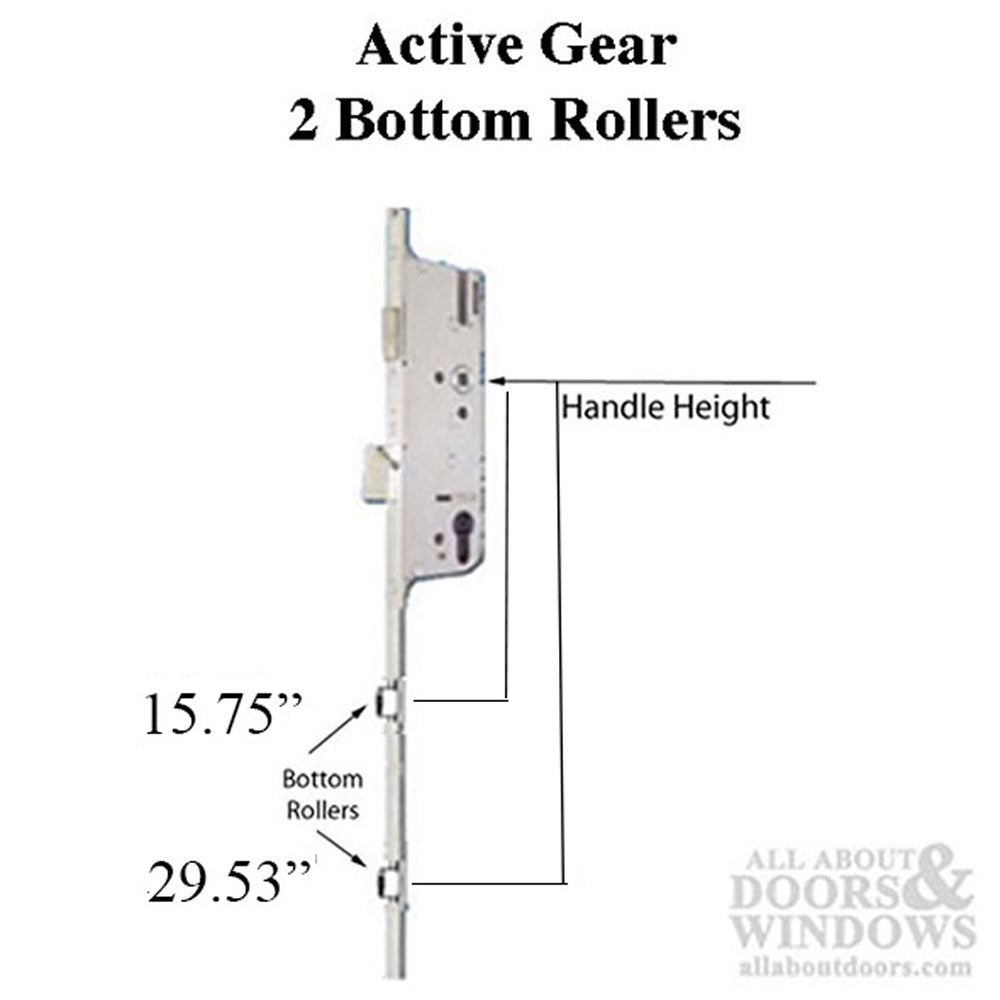

• Roller Positions (From Spindle):
  • Lower Roller #1:  400 mm (15-3/4 inches)
  • Lower Roller #2:  750 mm (29-17/32 inches)
• Maximum Cutoff:  60 mm (2-3/8 inches)
• Number of Screws:  5
• Handle Height:  914 mm (36 inches)
