Fuhr Multisafe Manual Gear with 2 Hooks 77-7/8" Door
Manual One-Piece System with Gear and Top Extension attached.
Specifications:
-
Application: Special Size, FUHR replacement
-

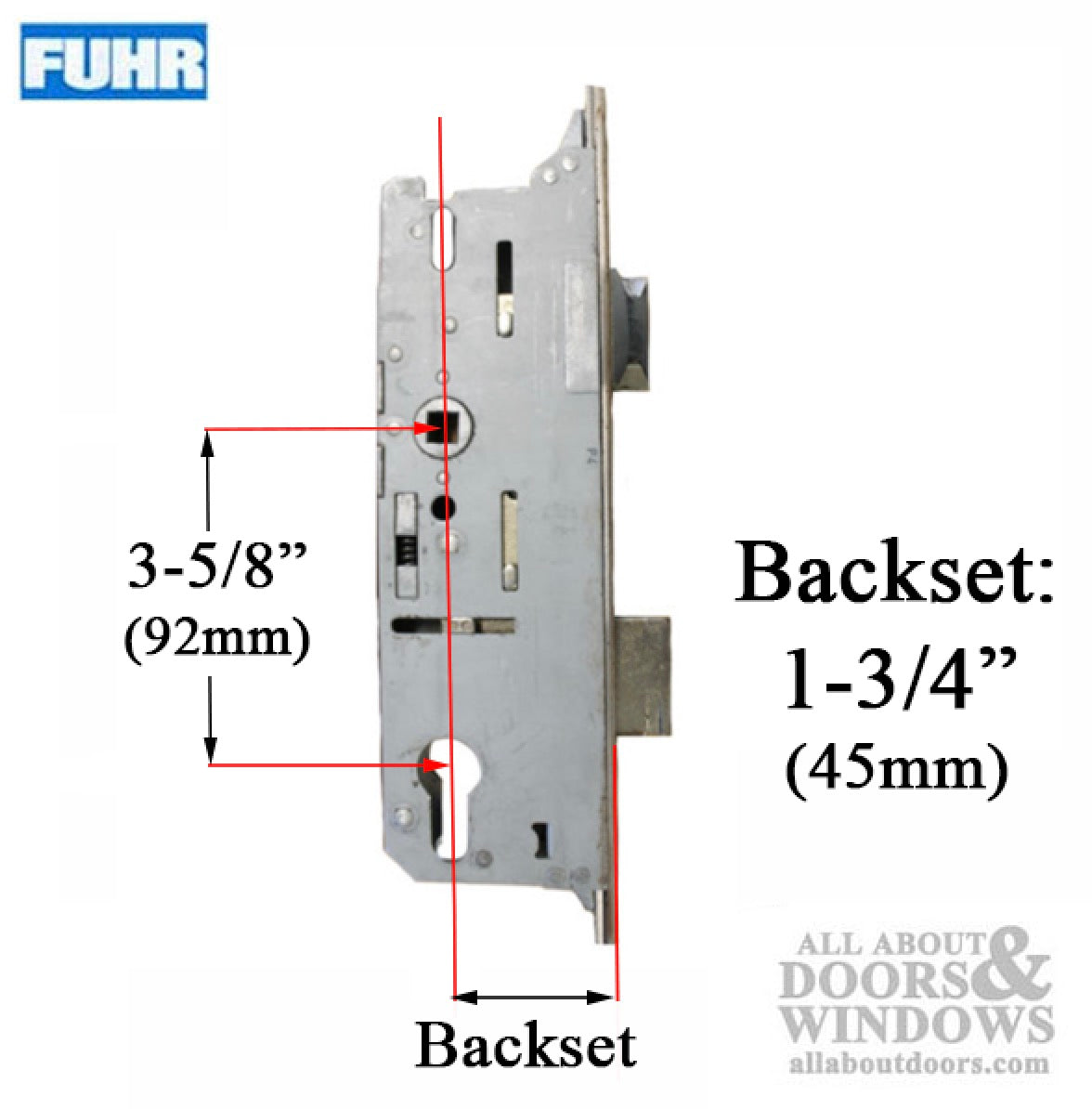

Backset: 1-3/4 inch (45mm)
-
Deadbolt Throw: 1 inch ( 25.4mm)
-
Faceplate Width: 5/8 inch (16mm)
-
Handle to cylinder PZ: 3-5/8 inch (92mm)
-
Cylinder Type: Euro Profile
-

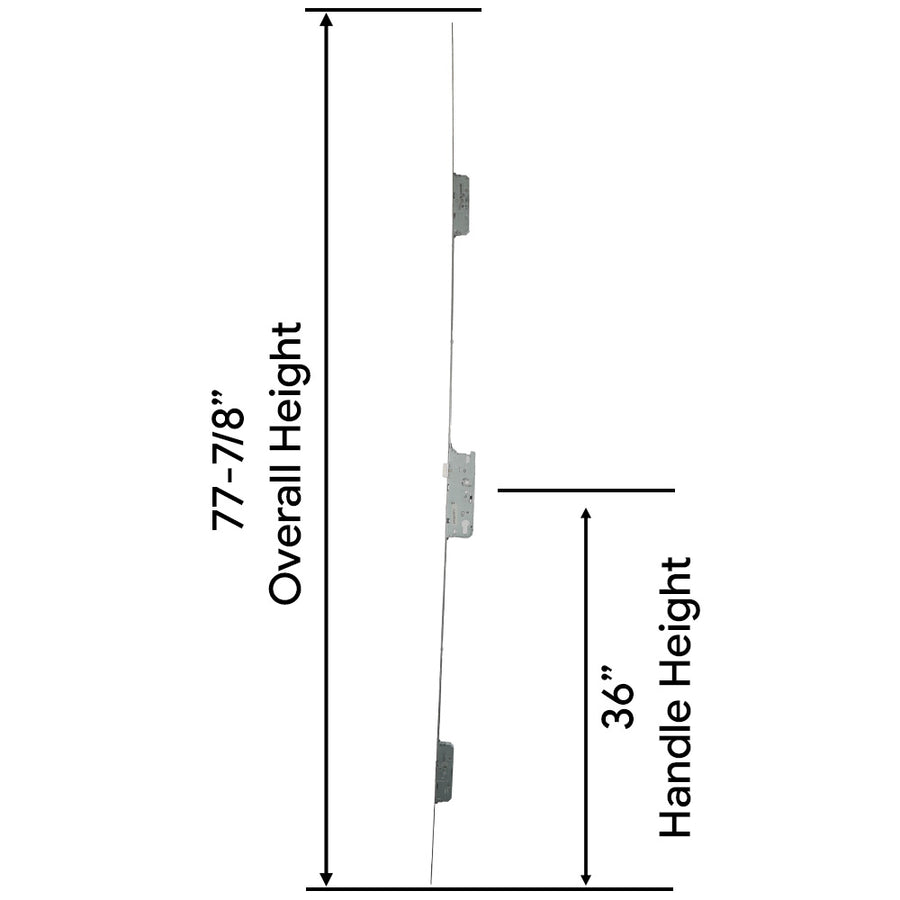

Handle Height: 36 inch (914mm)
-

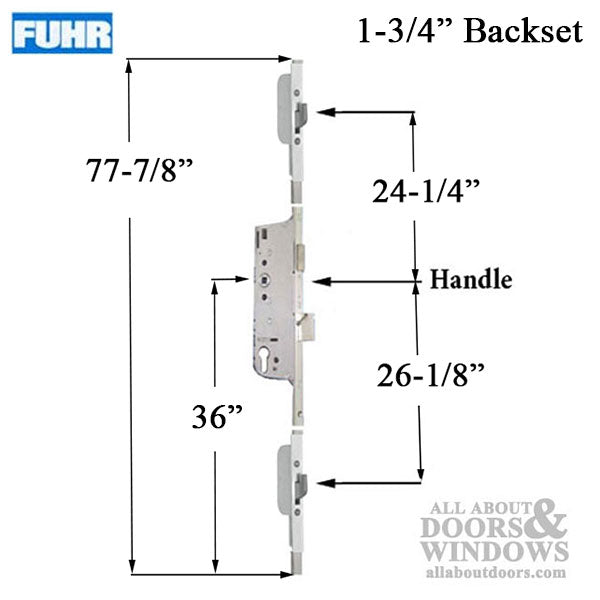

Upper Hook Position: 24-1/4 inch (615mm) 24.21"
-
Lower Hook Position: 26-1/8 inch (664mm) 26.14"
-
Overall Length: 77-7/8 inch (1978mm) 77.87"
Note: This one piece Fuhr multipoint lock is made for a specific door height of 77-7/8 inches

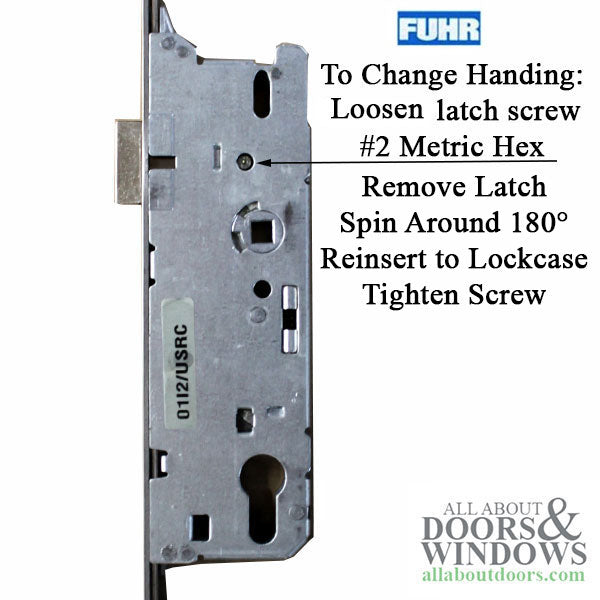

Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
