16mm G-U Europa R2 30/92 Euro Active Two Roller Multipoint Lock Optional Shootbolts

Part Number:6-UA686-30-1-FG Price: $224.90

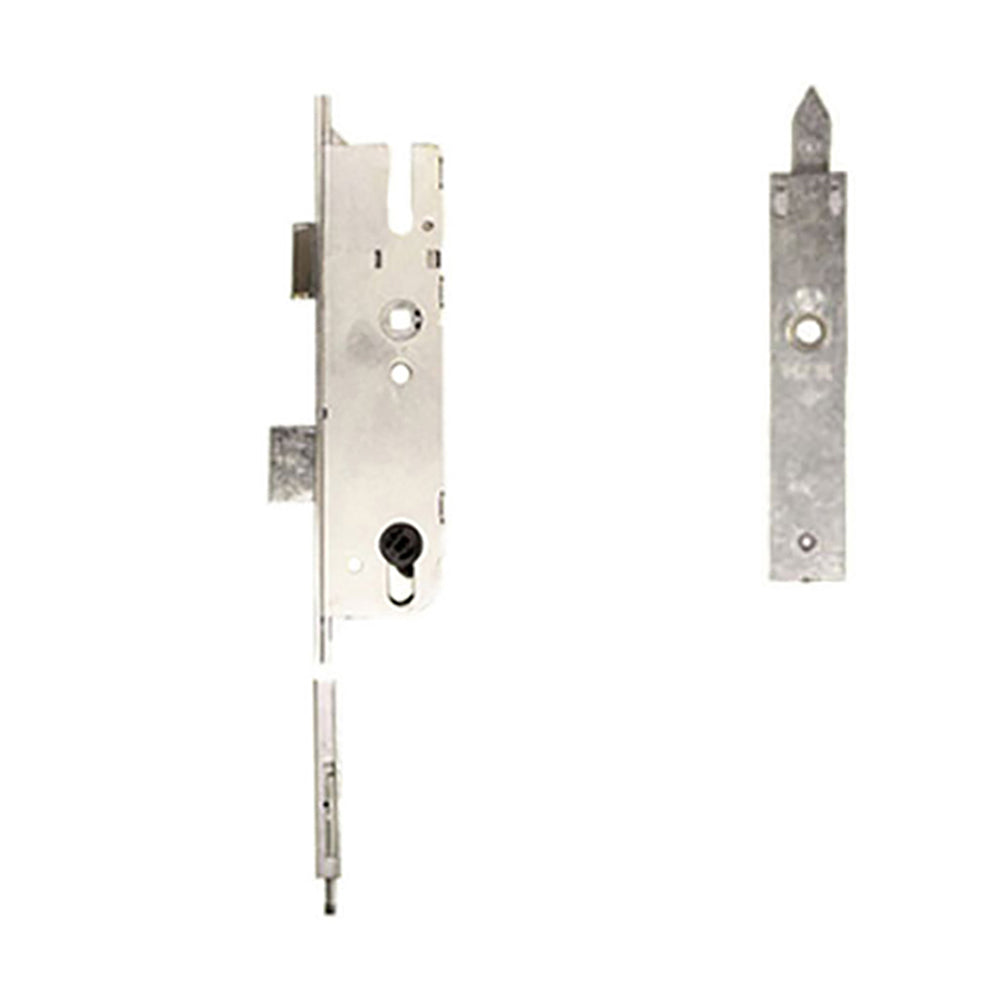

G-U Europa R2 Multipoint Lock

16mm Active Two-Roller with Optional Shootbolt

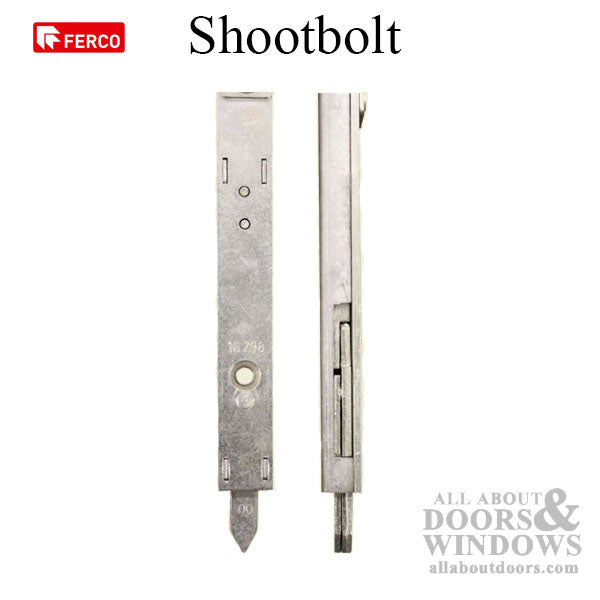

Has alligator teeth so shootbolts can be easily attached to the top and/or bottom to construct a multi-point lock. Shootbolts not included. Shootbolts and extensions are available for purchase separately.

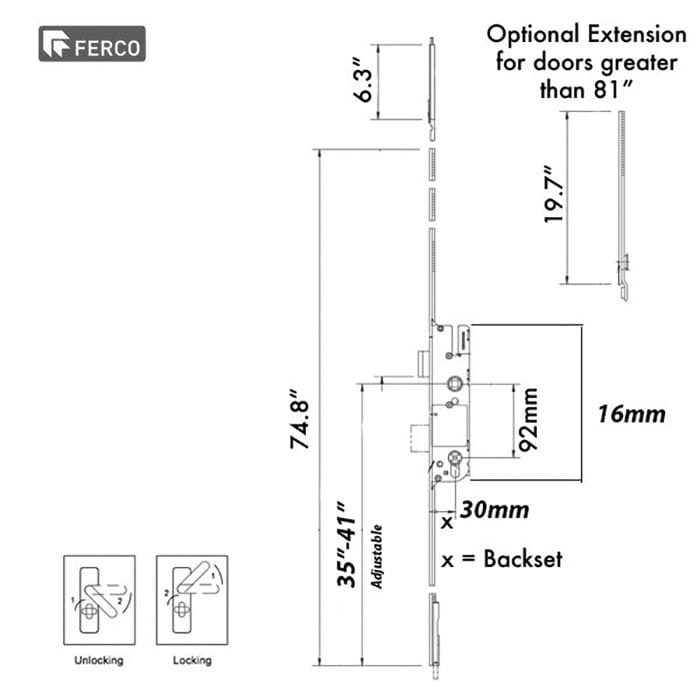

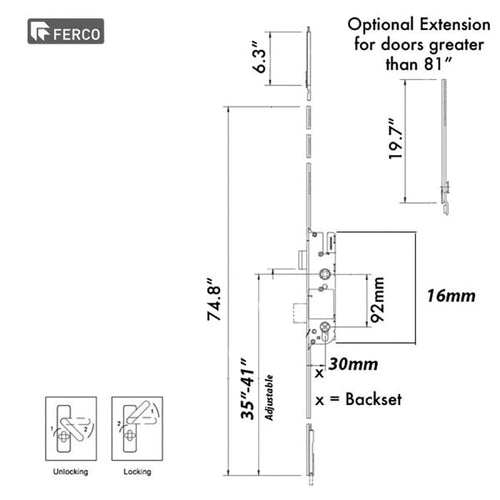

Specifications:

  • PZ (Distance from center-of-spindle to center-of-cylinder):  3-5/8 inch (92mm)
  • Cylinder Type:  Euro Cylinder
  • Backset:  1-3/16 inch (30mm)
  • Faceplate Width:  5/8 inch (16mm)
  • Faceplate Finish:  Silver FerGUard
  • Lock Case Dimensions:  2.08 inches × 7.68 inches
  • Handle Height:  35 inches (890mm)
  • Overall Length:  72.04 inches (1830mm)
  • Handle to Top Roller:  11 inches (279.5mm)
  • Handle to Bottom Roller:  15.39 inches (391mm)
16mm G-U Europa R2 Active Multipoint Lock - 2 Roller with Optional Shootbolt<BR><br><a href="https://www.allaboutdoors.com/backset" target="_blank">Handle to Cylinder Spacing</a>&nbsp;(Centers): 3-5/8 inch (92mm)<br><a href="https://www.allaboutdoors.com/american-or-euro-cylinder" target="_blank">Cylinder Type</a>: Euro Cylinder<br><a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 1-3/16 inch (30mm)<br><a href="https://www.allaboutdoors.com/multipoint-lock-faceplate" target="_blank">Faceplate</a>&nbsp;Width: 5/8 inch (16mm)<br>
Faceplate Finish: Silver Fergard<br><a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank">Lock Case</a>&nbsp;Dimensions: 2.08" x 7.68"<br><a href="https://www.allaboutdoors.com/handle-height" target="_blank">Handle Height</a>: 35" (890mm)<BR>Overall Length: 72.04" (1830mm)<BR>Handle to Top Roller: 11" (279.5mm)<BR>Handle to Bottom Roller: 15.39" (391mm)<BR><br>Has alligator teeth so shootbolts can be attached to top and/or bottom; shootbolts not included
