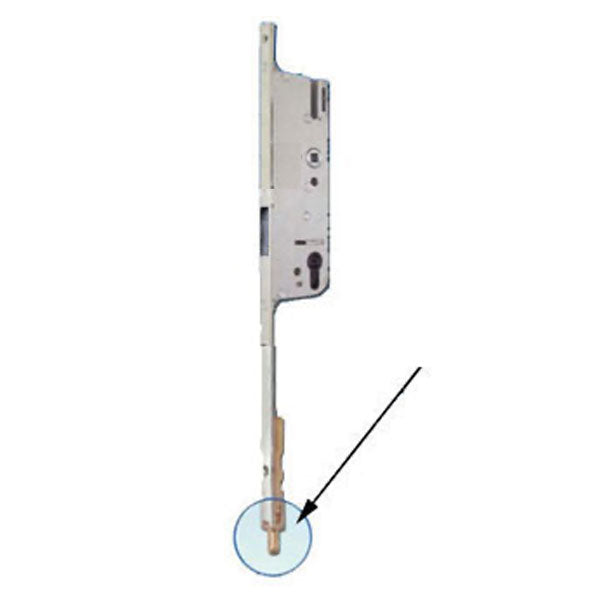

HOPPE Inactive Passive Gear 16mm with Bottom Shootbolt Throw 20mm
Use the arrows or swipe left to view all images for this product
HOPPE Inactive Passive Gear 16mm with Bottom Shootbolt Throw 20mm
Part Number: $213.62Hoppe Inactive / Passive door lower assembly 1-3/8 Gear with bottom shootbolt

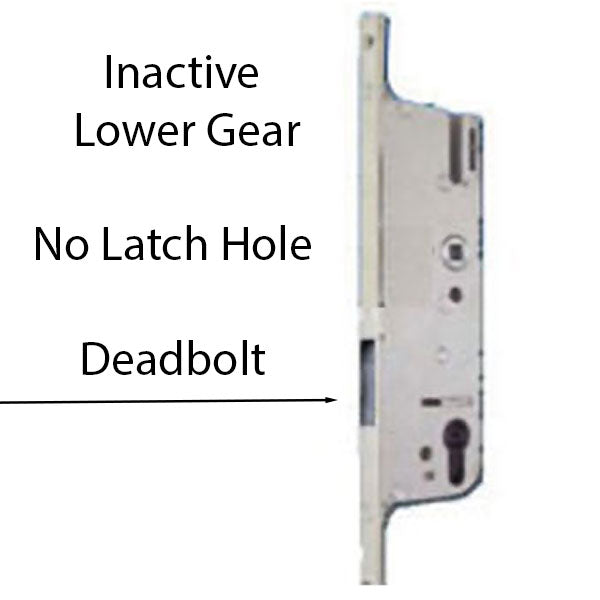

The Inactive assembly has a hole for dead bolt, but not the spring latch. The lock requires a minimum 3/4 inch wide astragal.
Application: Secondary Inactive door 2-point lock
Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/8 inch (35mm) 20mm Shootbolt Throw
Shootbolt Throw: 3/4" (20mm)
Handle Height: 36 inch (914mm)

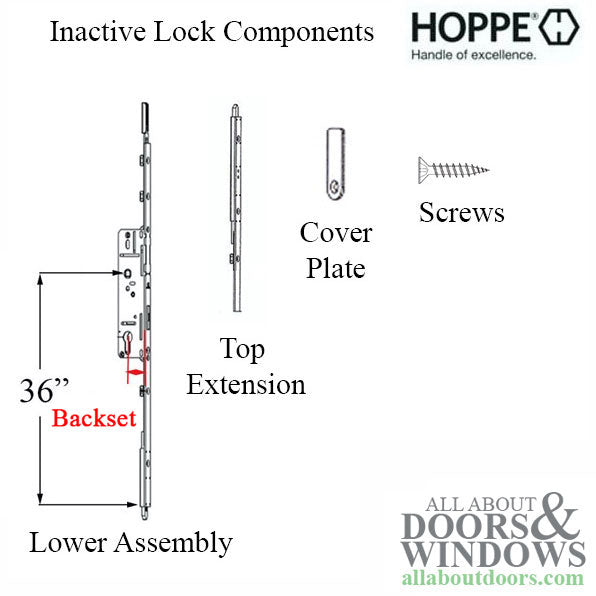

Note: This is the lower assembly of a 2-point lock, the upper extension is needed to complete lock. The upper extensions are available in assorted lengths to match door panel height.
Related Hoppe Parts
2875118 5/8 inch wide Cover plate for connection
8785695 1-3/8 inch (35mm) stainless steel Installation screw
2024962 Brass Socket Strike, 1 inch throw shootbolt
The Inactive assembly has a hole for dead bolt, but not the spring latch. The lock requires a minimum 3/4 inch wide astragal.
Application: Secondary Inactive door 2-point lock
Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/8 inch (35mm) 20mm Shootbolt Throw
Shootbolt Throw: 3/4" (20mm)
Handle Height: 36 inch (914mm)
Note: This is the lower assembly of a 2-point lock, the upper extension is needed to complete lock. The upper extensions are available in assorted lengths to match door panel height.
Related Hoppe Parts
2875118 5/8 inch wide Cover plate for connection
8785695 1-3/8 inch (35mm) stainless steel Installation screw
2024962 Brass Socket Strike, 1 inch throw shootbolt
Backset: 1-3/8 inch (35mm) 20mm Shootbolt Throw16mm faceplate
