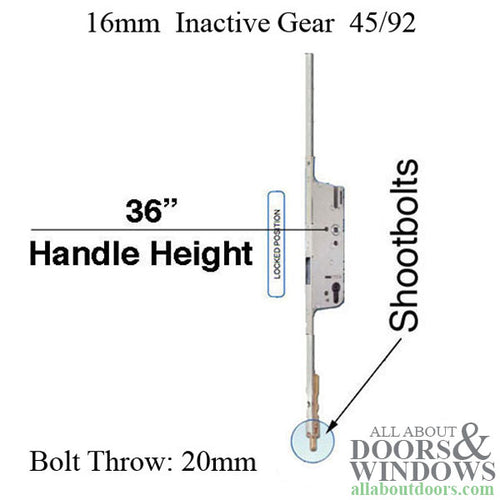

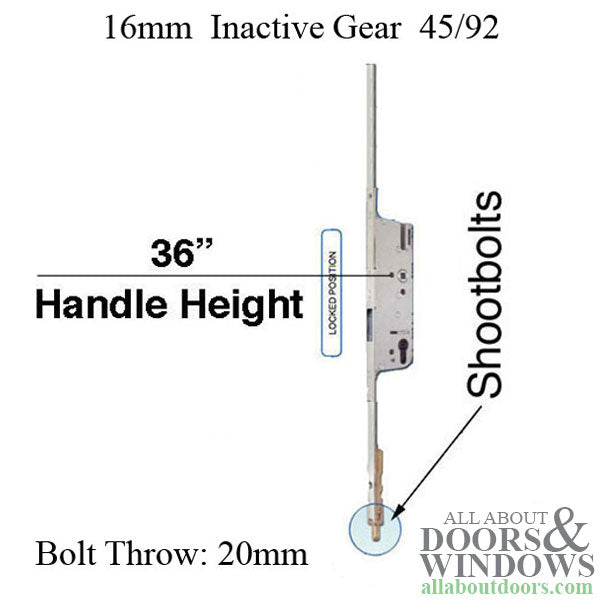

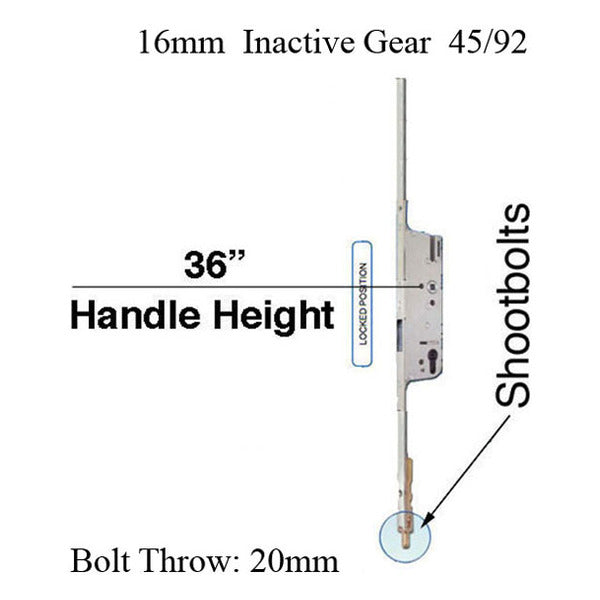

Hoppe Bottom Gear for 16/20 Inactive version; Part of 2-Piece Multipoint lock that uses shootbolt with 25/32 inch (20mm) throw;
This is the bottom gear for 2 piece version
needs 1 top extension and 1 cover plates to complete Inactive Shootbolt.
This 2 piece bottom gear is for sizes with standard 36 inch handle height.
Faceplate: 5/8 inch (16mm)
Backset: 1.77 (45mm)
Handle Height: 36 inch (914mm)
Type: Bottom Gear with shootbolt attached
Shootbolt Throw: 25/32 inch (20mm)
Number of Screws: 9
This is the bottom gear for 2 piece version
needs 1 top extension and 1 cover plates to complete Inactive Shootbolt.
This 2 piece bottom gear is for sizes with standard 36 inch handle height.
Faceplate: 5/8 inch (16mm)
Backset: 1.77 (45mm)
Handle Height: 36 inch (914mm)
Type: Bottom Gear with shootbolt attached
Shootbolt Throw: 25/32 inch (20mm)
Number of Screws: 9
