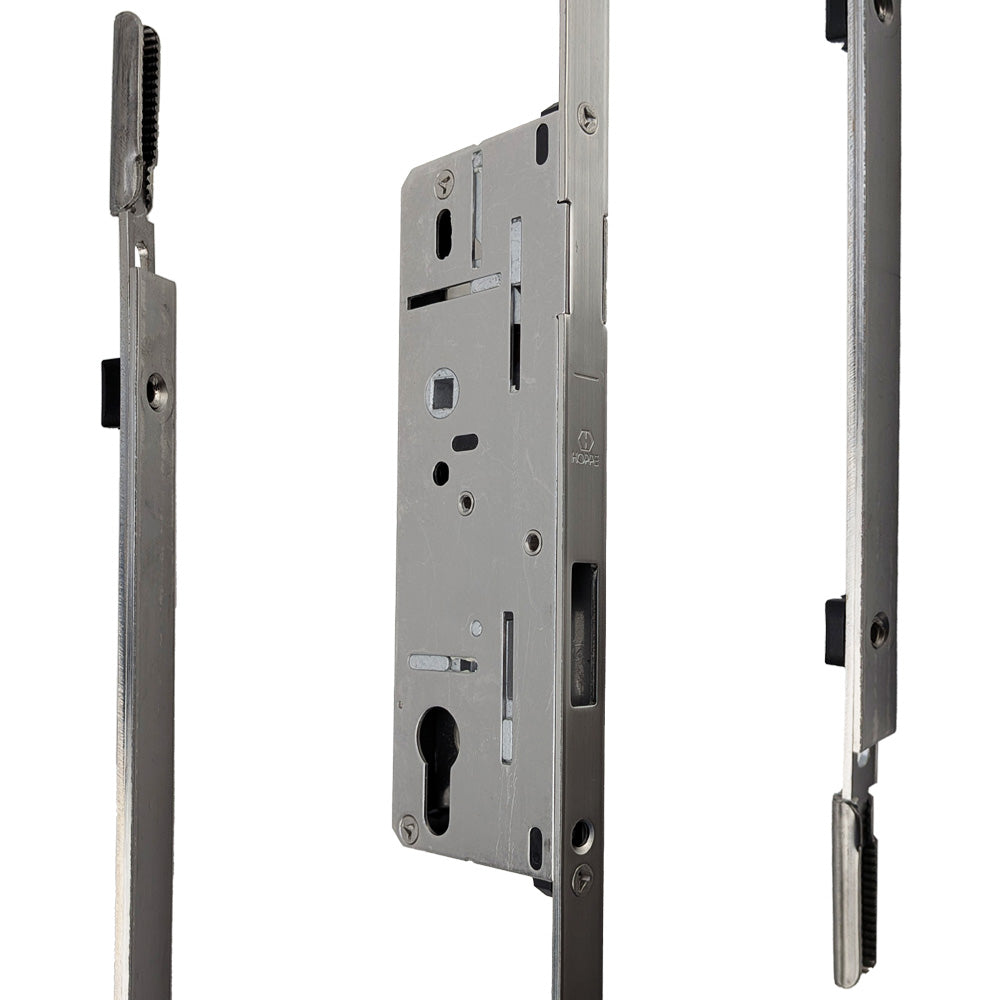

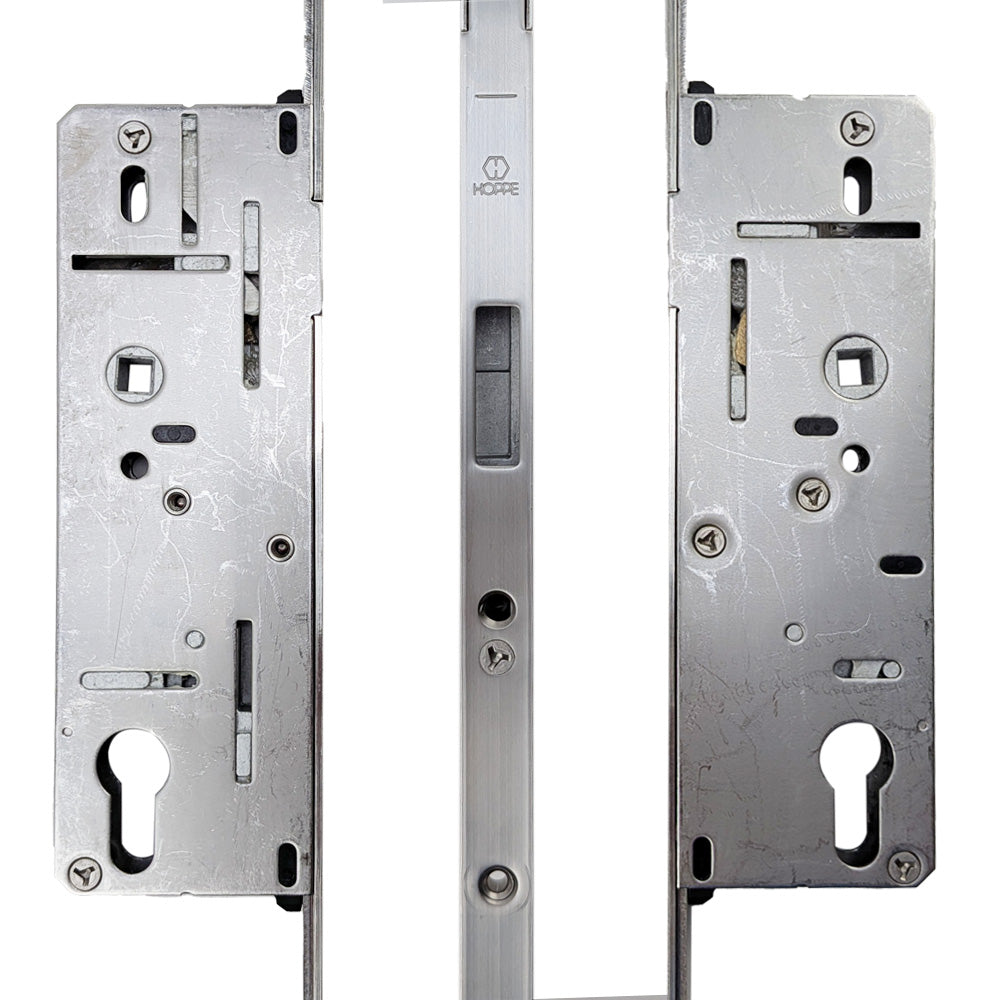

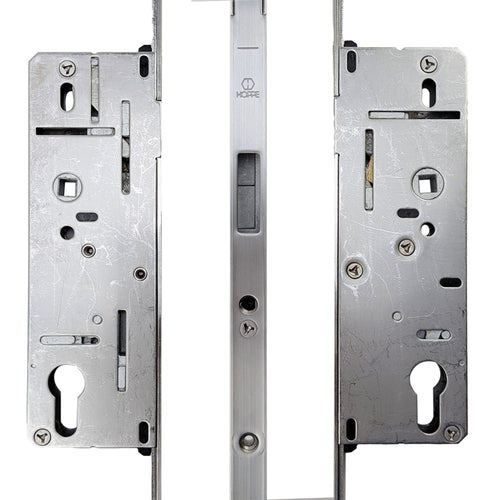

16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw

16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw - 16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw
16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw - 16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw
16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw - 16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw
16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw - 16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw
16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw - 16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw
16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw - 16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw

16mm Inactive 45/92 Gear, Adjustable Handle Height, 20/25mm Shootbolt Throw

Part Number:8778443 Price: $151.52

Hoppe Inactive Gear

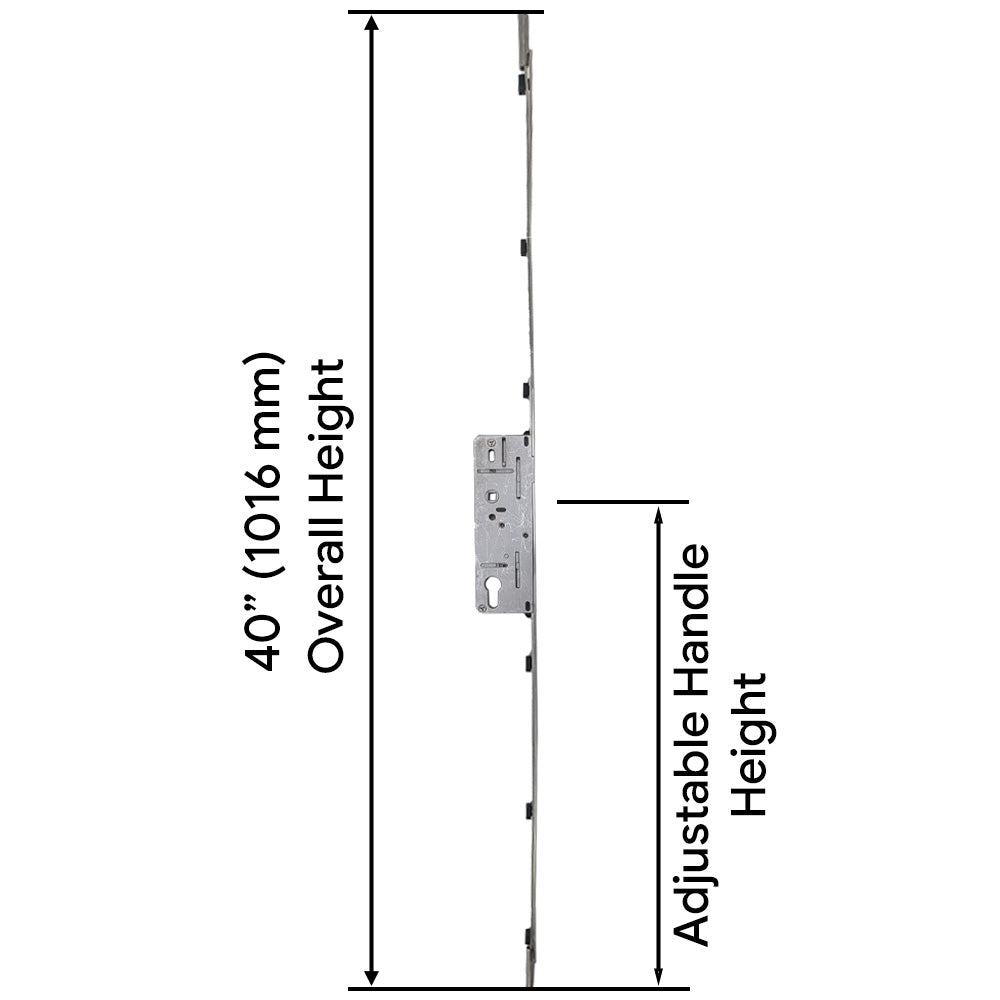

Adjustable Handle Height

Combine top extension and bottom extension with gear for complete lock. Top extensions can be used as bottom extensions. Use cover plates to cover seam between gear and each extension. See Related Items below for extensions to achieve your desired handle height, screws, and cover plates.



Specifications:

  • Faceplate Width:  16mm (5/8 inch)
  • Lock Backset:  1.77 (45mm)

  • Gear Type:  Gear with partial extensions; no shootbolts attached.



No latch hole for spring latch – The metal flat bar travels about 1 inch. With the bolt locked, the bar travels upward. When unlocked, it travels down toward the deadbolt about 1 inch.

The maximum depth to cut for a latch would be the thickness of the metal faceplate 1/16th inch. Therefore, this lock requires an astragal between door panels.

<h4>Related Parts:</h4><ul style="list-style-type:disc;"><li><p class="p1">8787583 – Bottom extension to achieve 36 inch (914mm) handle height</p></li><li><p class="p1">2875118 – Cover plate for connections</p></li><li><p class="p1">8785695 – 35mm Wooden Door Installation Screws, Stainless Steel 8mm head</p></li></ul><p class="p5"> </p>
