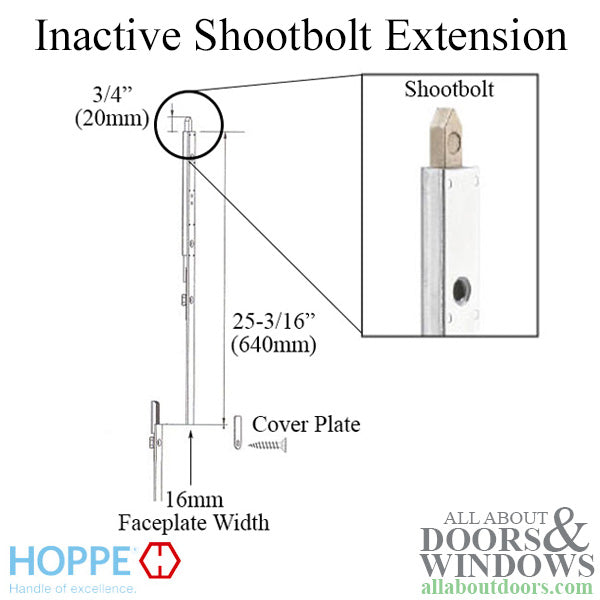

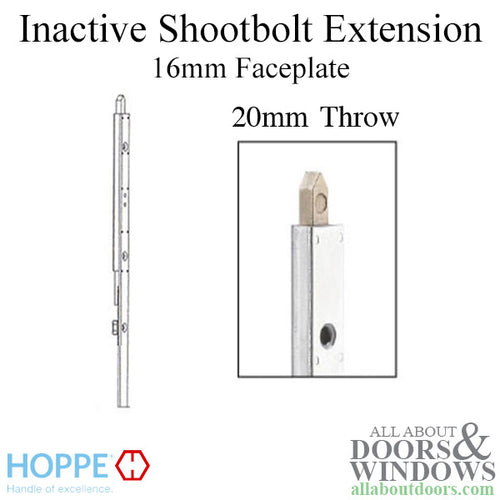

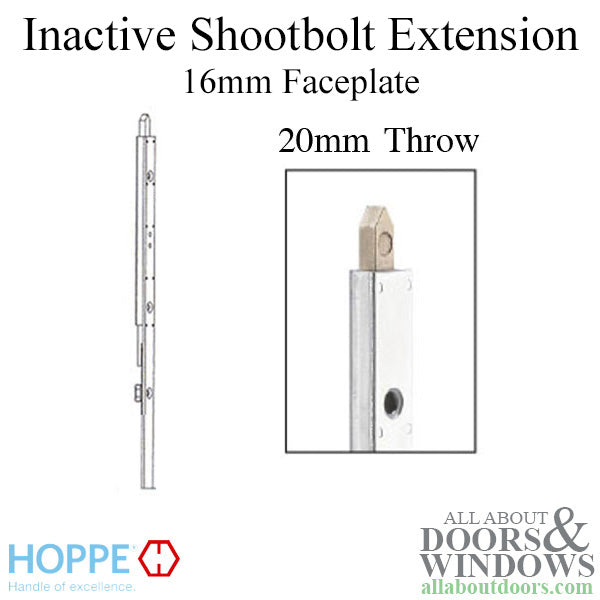

16mm Inactive Top Extension, 20mm Shootbolt Throw, 25.20" Length
Part Number: Price: $67.47Hoppe Top Extension for Inactive Version 2 & 3 piece Shootbolt - Used on Inactive / Passive door
The shootbolt tip attaches to the extension to complete a 2 or 3 piece Multipoint lock
Faceplate Width: 5/8" (16mm)
Shootbolt Throw: 3/4" ( 20mm)
Extension length: 25.20" (640mm)
maximum cut off: 3-15/16"
Number of Screws: 4 - 8mm x 35mm stainless steel screws
Fits Door heights: 75-3/4" - 79-11/16" with 36" (914mm) handle height
Use 2875118 Cover plate and screw when making connections
SPECIAL NOTE: Top Extensions for Active doors do not work the same as the Inactive top extensions
ACTIVE top extensions are reversing gear, when pulling down on the serrated teeth drive bar the top shoot bolt Extends
INACTIVE top extensions, when pulling down on the serrated teeth drive bar, the top shoot bolt Retracts.
Inactive shootbolts Push to Extend Bolt
Active shootbolts Pull to Extend bolt
