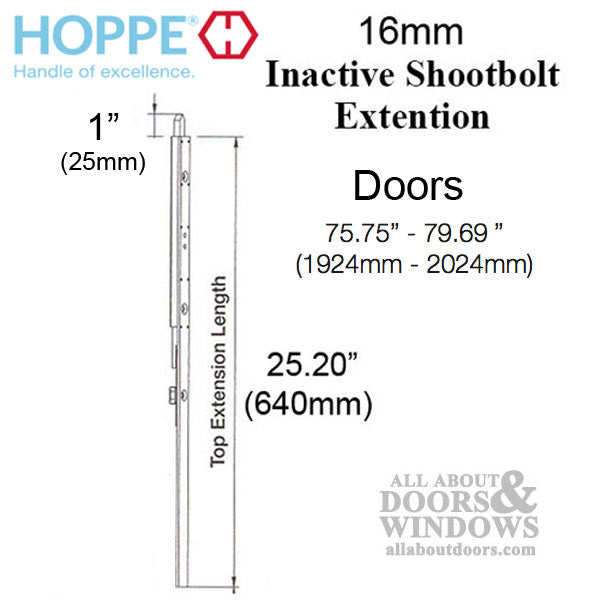

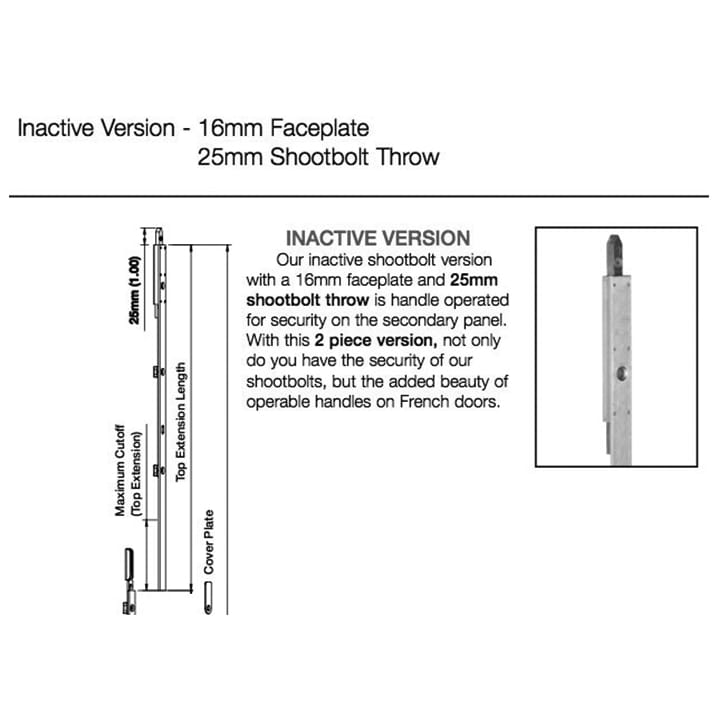

16mm Inactive Top Extension, 25mm Shootbolt Throw, 25.20" Length
Part Number: Price: $79.30In-Active Top Extension for Shootbolts with 1 inch (25mm) Throw
used on 2 and 3 piece Inactive/ Passive door Version Shootbolts
Fits Door Heights: 75.75 to 79.69 inch (1924-2024mm) when used with 36 inch handle height
Faceplate Width: 5/8 inch ( 16mm)
Extension Length: 25.20 inches (640mm)
Handle to Top of Door: 43.70 inches (1110mm)
Maximum Cutoff: 3.94 inches (100mm)
Number of installation screws: 4
Note:
Inactive and Active shootbolt extensions work differently and are NOT interchangeable.
Inactive shootbolts Push to Extend Bolt
Active shootbolts Pull to Extend bolt
used on 2 and 3 piece Inactive/ Passive door Version Shootbolts
Fits Door Heights: 75.75 to 79.69 inch (1924-2024mm) when used with 36 inch handle height
Faceplate Width: 5/8 inch ( 16mm)
Extension Length: 25.20 inches (640mm)
Handle to Top of Door: 43.70 inches (1110mm)
Maximum Cutoff: 3.94 inches (100mm)
Number of installation screws: 4
Note:
Inactive and Active shootbolt extensions work differently and are NOT interchangeable.
Inactive shootbolts Push to Extend Bolt
Active shootbolts Pull to Extend bolt
