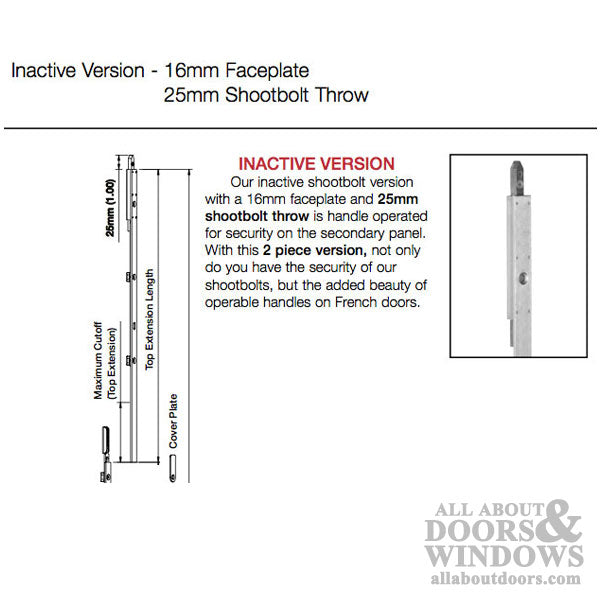

16mm Inactive Top Extension, 25mm Shootbolt Throw, 28.15" length
Use the arrows or swipe left to view all images for this product
16mm Inactive Top Extension, 25mm Shootbolt Throw, 28.15" length
Part Number: $92.20In-Active Top Extension for Shootbolts with 1 inch (25mm) Throw.
Used on 2 and 3 piece Inactive/ Passive door Version Shootbolts
Fits Door Heights: 78.70 to 82.64 inch (1999-2099mm) when used with 36 inch handle height
Faceplate Width: 5/8 inch ( 16mm)
Extension Length: 28.15 inches (715mm)
Handle to Top of Door: 46.65 inches (1185mm)
Maximum Cutoff: 3.94 inches (100mm)
Number of installation screws: 4
Used on 2 and 3 piece Inactive/ Passive door Version Shootbolts
Fits Door Heights: 78.70 to 82.64 inch (1999-2099mm) when used with 36 inch handle height
Faceplate Width: 5/8 inch ( 16mm)
Extension Length: 28.15 inches (715mm)
Handle to Top of Door: 46.65 inches (1185mm)
Maximum Cutoff: 3.94 inches (100mm)
Number of installation screws: 4
In-Active Top Extension for Shootbolts with 1 inch (25mm) Throw.
Used on 2 and 3 piece Inactive/ Passive door Version ShootboltsFits Door Heights: 78.70 to 82.64 inch (1999-2099mm) when used with 36 inch handle heightFaceplate Width: 5/8 inch ( 16mm) Extension Length: 28.15 inches (715mm)Handle to Top of Door: 46.65 inches (1185mm)Maximum Cutoff: 3.94 inches (100mm)Number of installation screws: 4
