HOPPE  Active Manual Lower Gear with Two Bottom Rollers

Specially Sized 664mm/26.14" Handle Height for Kawnee Terrace Door

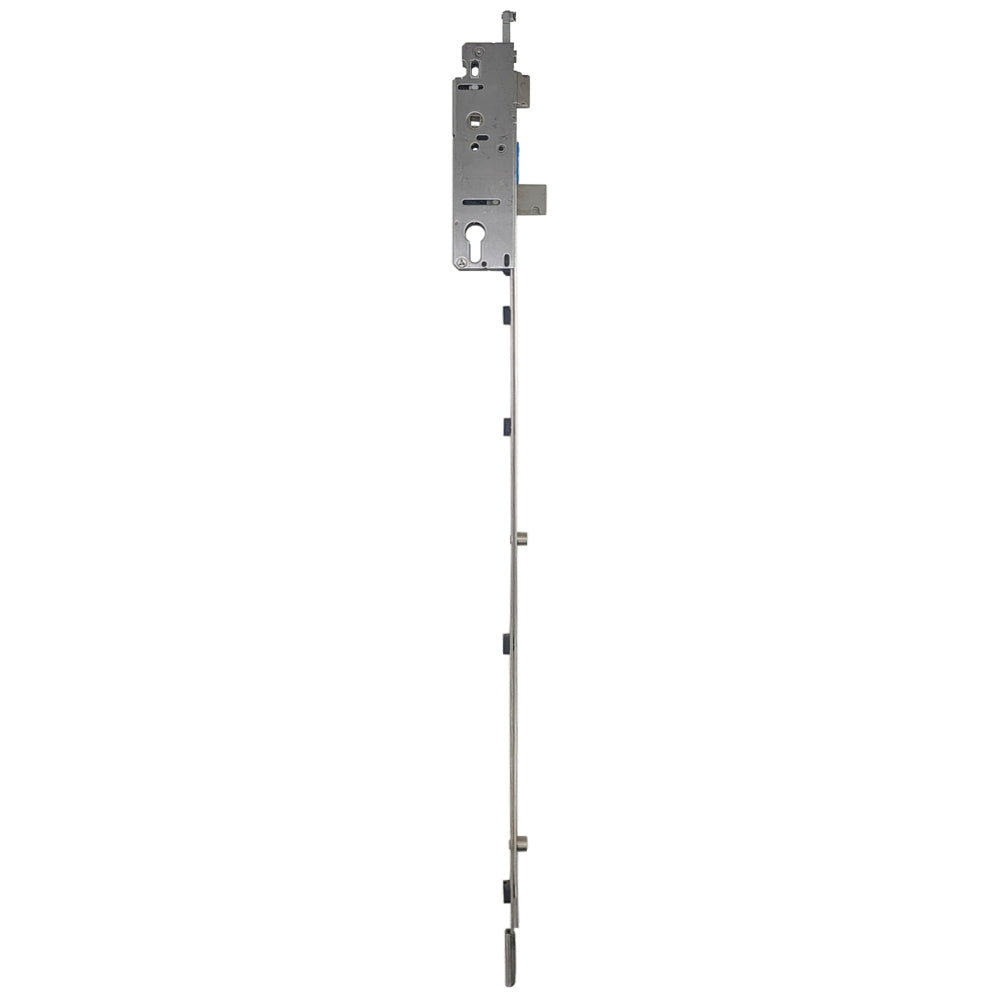

Lower assembly with two rollers combines with an upper extension to make a complete multi-point lock with four total rollers. Upper extension sold separately, see Related Items below to find an extension to fit your particular door height.

This lock has a special lower handle height to accommodate Kawneer terrace doors.

• Handle Height:  664 mm (26-9/64 inches)
• Faceplate:  16 mm (5/8 inch)
• Backset:  35 mm (1-3/8 inch)
• Deadbolt Throw:  25.4 mm (1 inch)

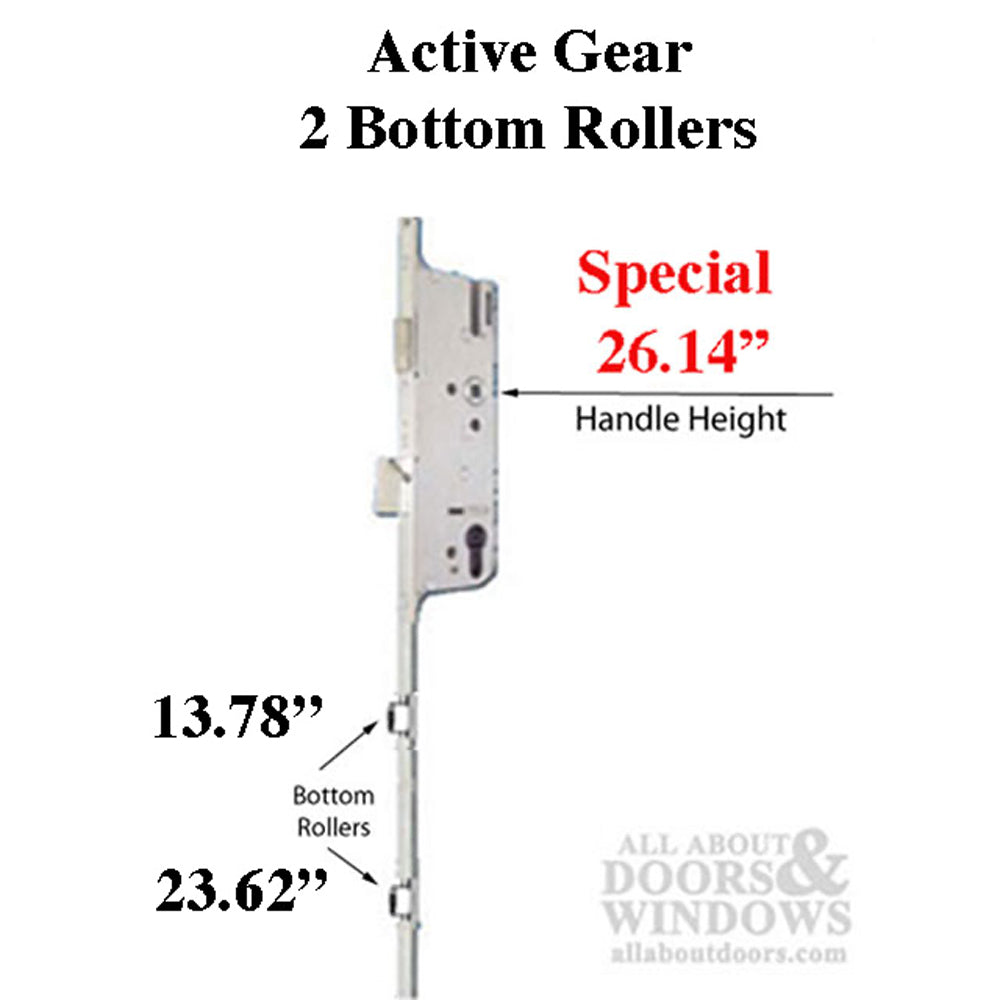

• Roller Positions (Distance from center-of-spindle):
  • Bottom Roller #1:  350 mm (13-3/4 inches)
  • Bottom Roller #2:  600 mm (23-5/8 inches)
• PZ (Distance from center-of-spindle to center-of-cylinder):  92 mm (3-5/8 inches)

NOTE:  The Kawneer door has a custom-configured lock that can have filler plates or shootbolts added to the top or bottom of the door for additional locking points. See Related Items below for optional additions to your lock.
