16mm Manual 35/92 Gear, Shootbolt-Tongue @ 24.41", 1/2" D/B
Use the arrows or swipe left to view all images for this product
16mm Manual 35/92 Gear, Shootbolt-Tongue @ 24.41", 1/2" D/B
Part Number: $190.29HOPPE HLS 9000 Active Multipoint Lock Gear

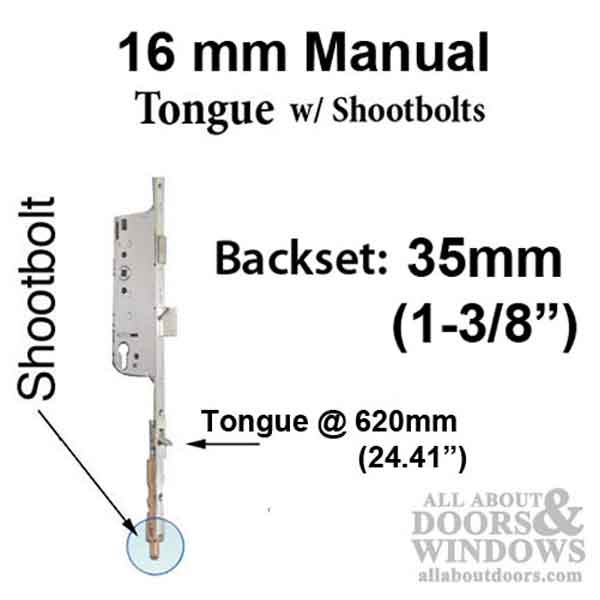

Tongue & Shootbolt Version for 5-Point Lock
When fully assembled, includes three pieces: Bottom Gear, Middle Extension, and Top Extension
5-point lock consisting of 2 locking tongues, 2 vertical shootbolts and Deadbolt.
WIth this manual operation version, lift the lever to engage the tongues and shootbolts.
- Operation: Manual
- Faceplate Width: 5/8 inch (16mm)

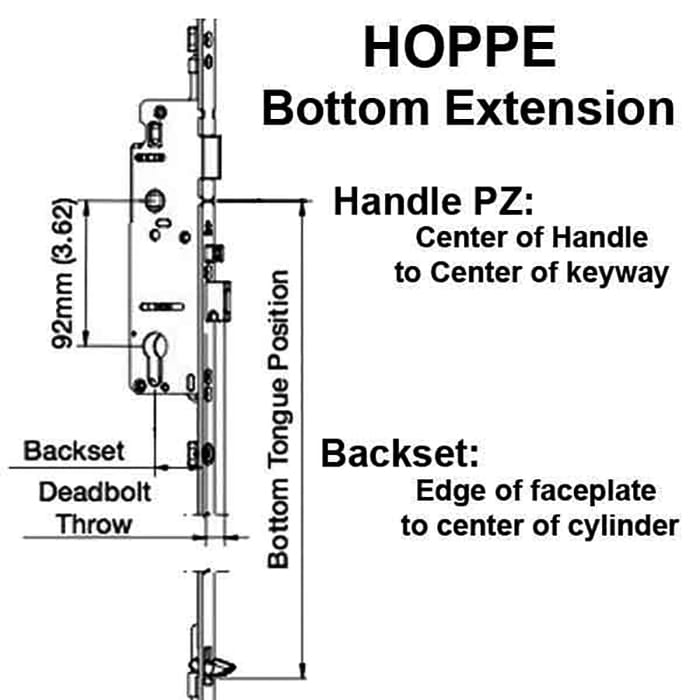

- Lock Backset: 1-3/8 inches (35mm)
- Deadbolt Throw: .55 inch (14mm)
- Handle Height: 36 inches (914mm)

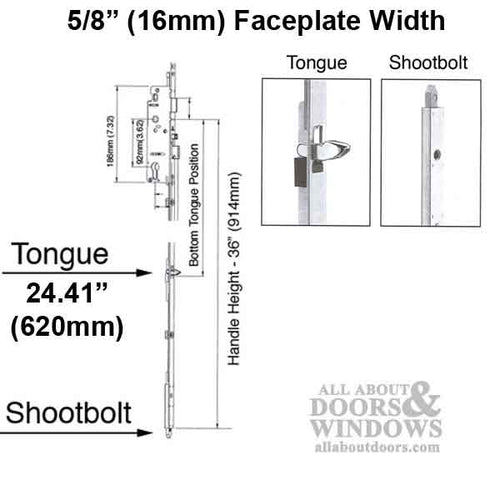

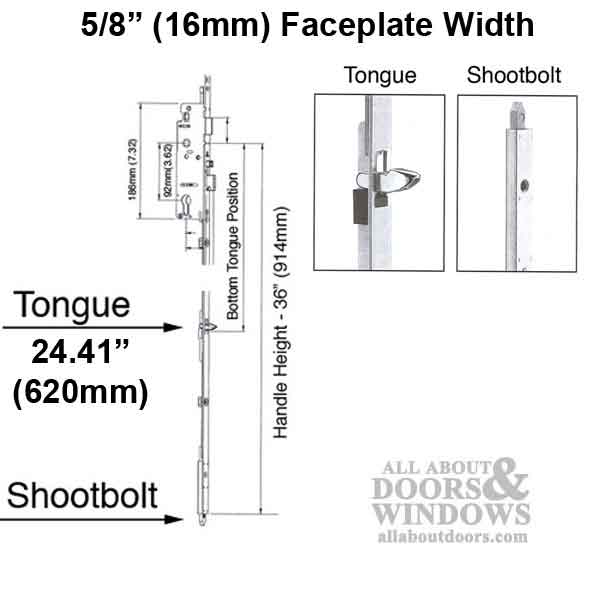

- Bottom Tongue Position: 24.41 inches (620mm)
- Shootbolt Throw: 0.79 inch (20mm)
- Maximum Cutoff: N/A
- Number of Screws: 6
HLS 9000 manual tongue version lock case may be stamped with number 90057.
Hoppe HLS9000 Multi-Point lock, Tongue with Shootbolt Bottom Section: HL S9000 MP Manual Gear, 90057 Tongue Version for Active Door. When fully assembled includes 3 Pieces - Bottom Gear, Middle, and Top Extension 5-point lock consisting of 2 locking tongues, 2 vertical shootbolts and Deadbolt.
Version: Manual Locking, Lift lever to engage tongue and shootbolt.Faceplate Width: 5/8 inch (16mm) Lock Backset: 1-3/8 inches (35mm) Deadbolt throw: .55 inch (14mm) Handle Height: 36 inches (914mm) Bottom Tongue Position: 24.41 inches (620mm)Shootbolt Throw: 0.79 inch ( 20mm) Maximum Cutoff : N/A Number of screws 6
