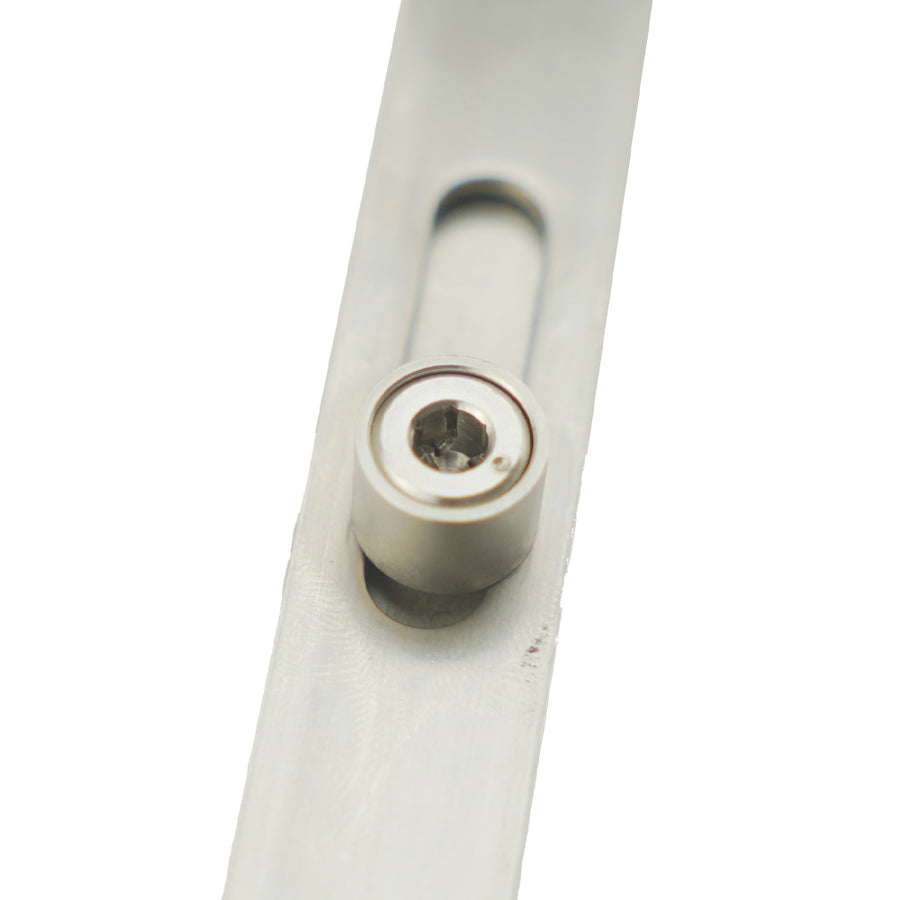

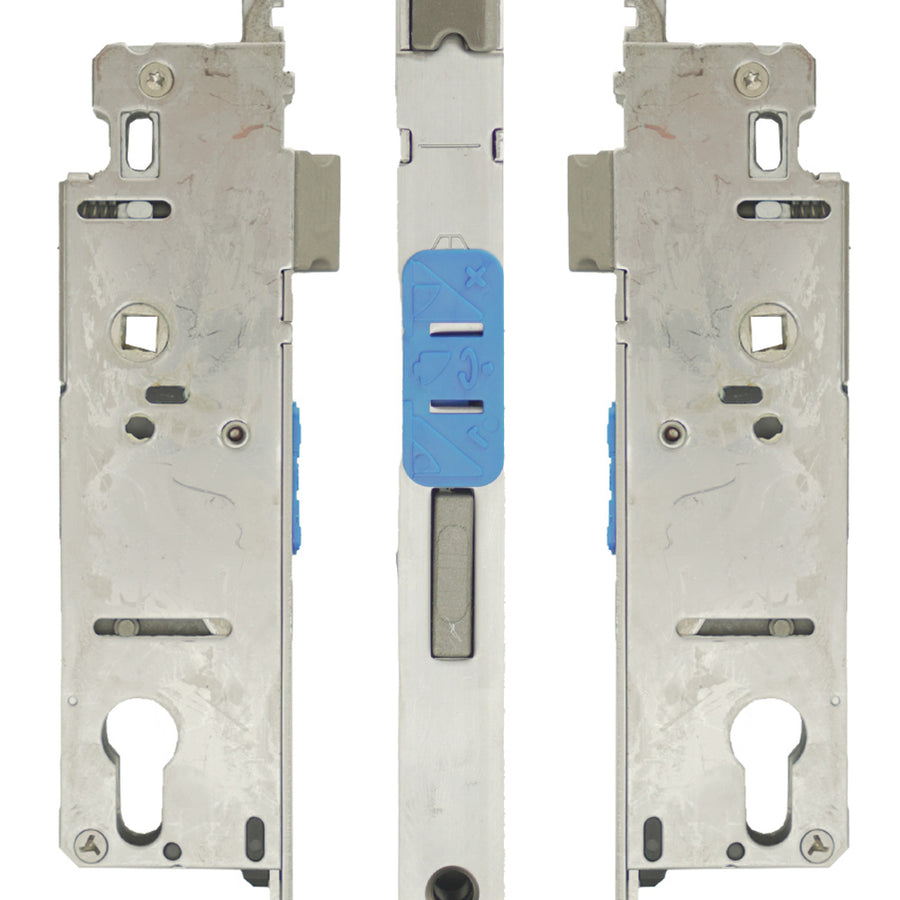

HOPPE HLS9000 Manual Locking Bottom Gear, Multipoint Lock Four Roller Version, Locking System

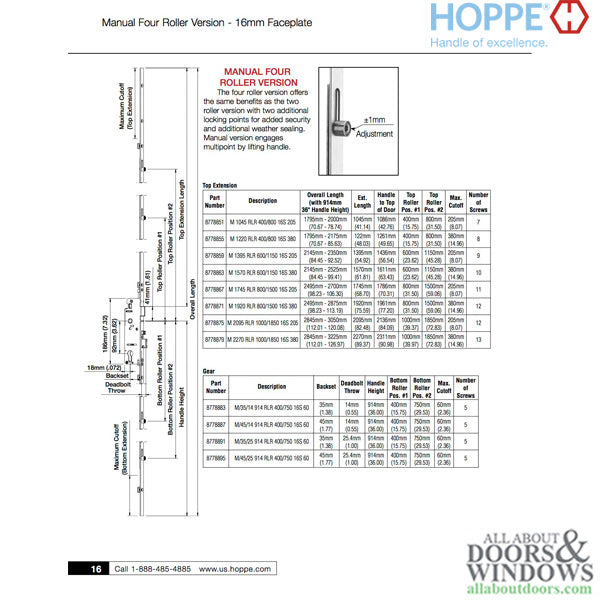

Specifications:
-

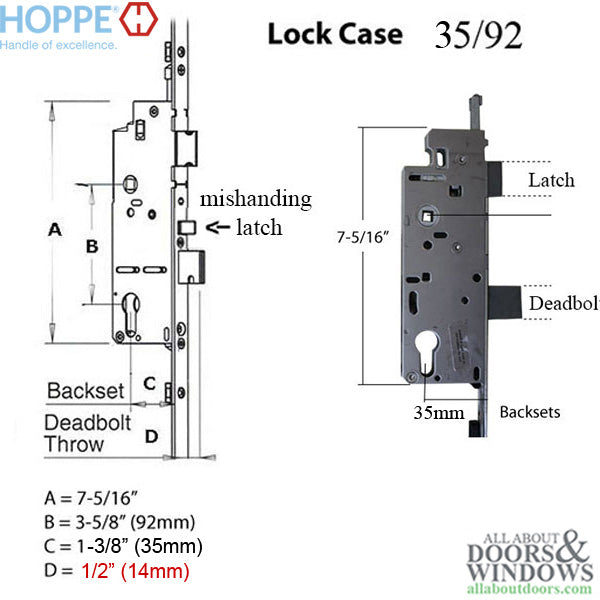

Faceplate Width: 5/8 Inch (16mm)
-
Lock Backset: 1-3/8 Inches (35mm)
-
Deadbolt Throw: 9/16 Inches (14mm)
-

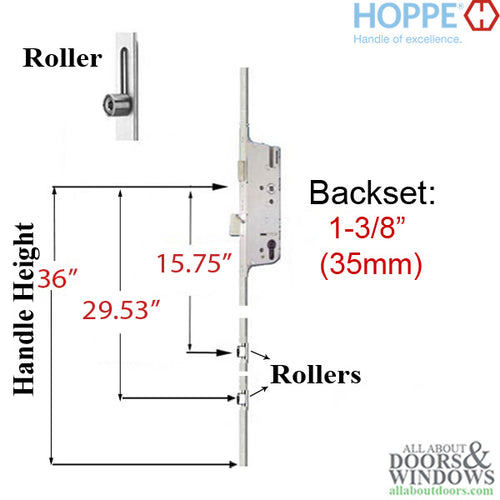

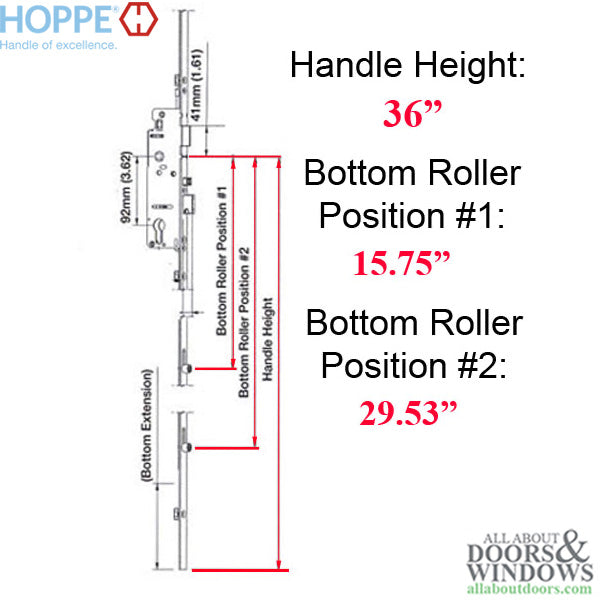

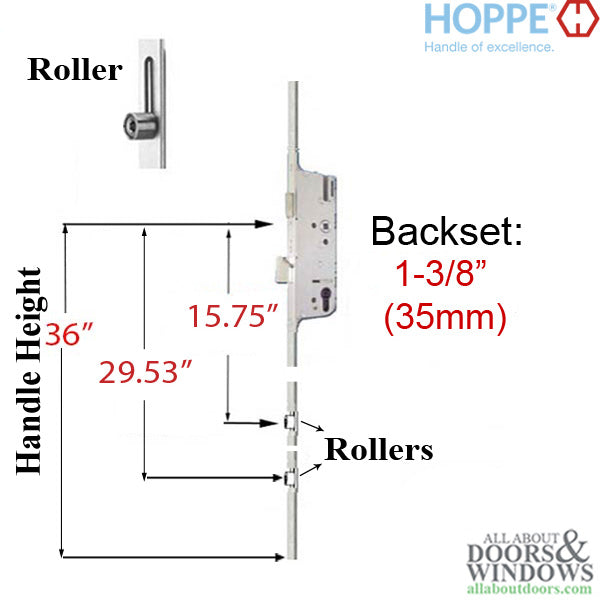

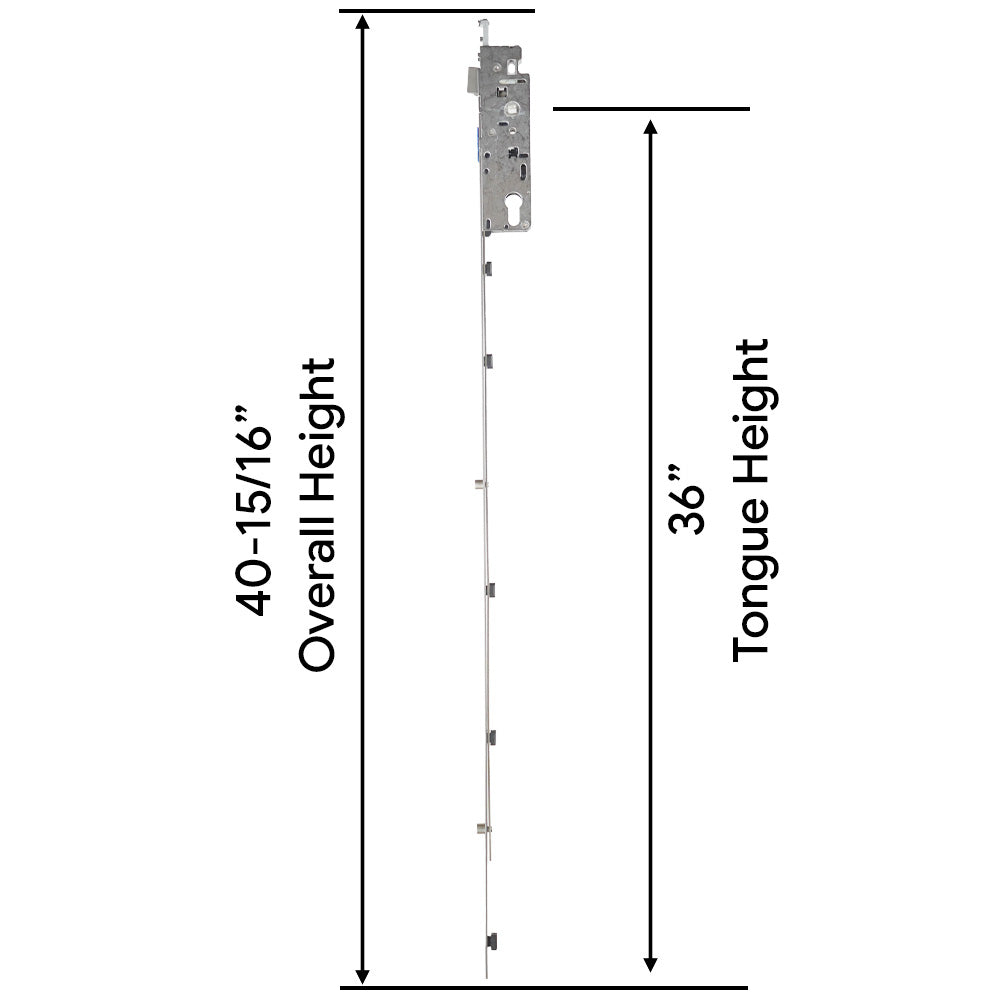

Handle Height: 36 Inches (914mm)
- Bottom gear has 2 rollers; Measured from handle to center of roller in locked position
-

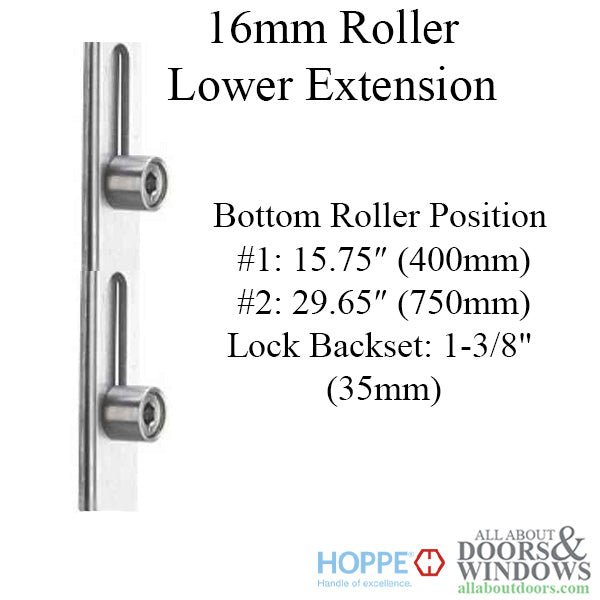

1st Roller Position: 15-3/4 Inches (400mm) with roller in down (locked) position.
-
2nd Roller Position: 29-1/2 Inches (750mm) with roller in down (locked) position.
-
Maximum Cutoff: 2-3/8 Inches (60mm)
-
Number of Screws: 5
