HOPPE HLS9000 Bottom Gear, Roller Version, Manual Locking

Faceplate: 5/8 inch (16mm)

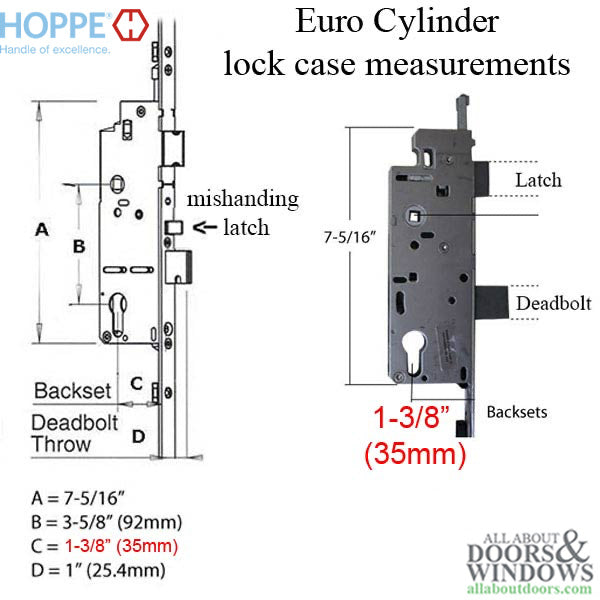

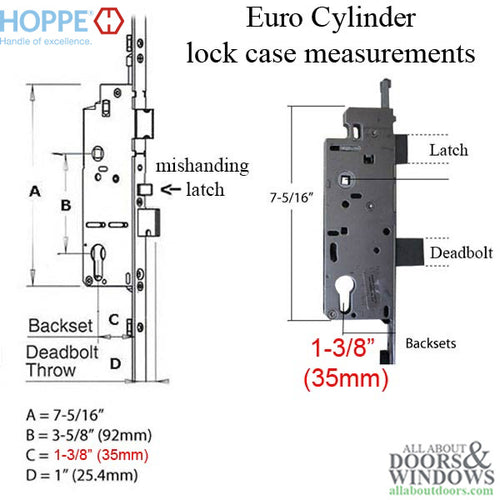

Backset: 1-3/8 (35mm),
Deadbolt Throw: 0.55 inch (14mm)

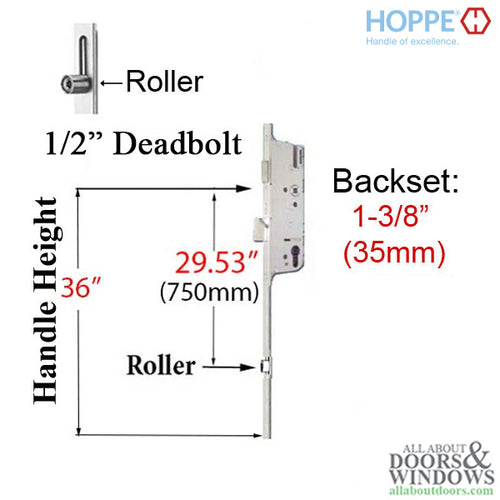

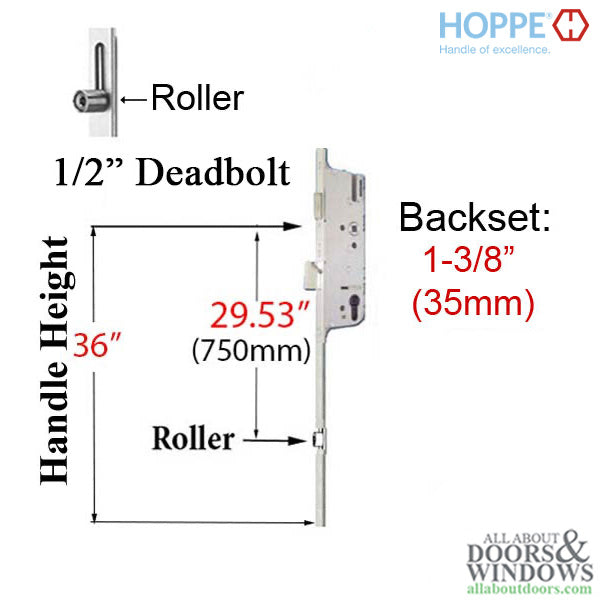

Handle Height: 36 Inch (914mm)

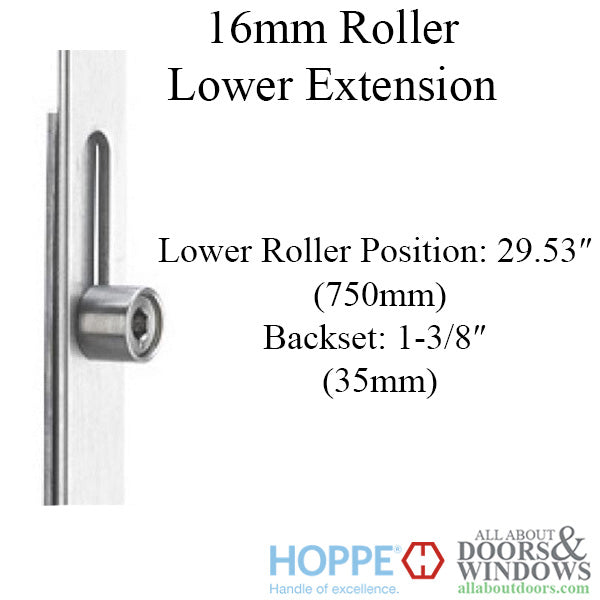

Bottom Roller Position: 29.53 (750mm) in down, locked position
Maximum Cutoff: 2.38 inches (60mm)
Screws: 5

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
