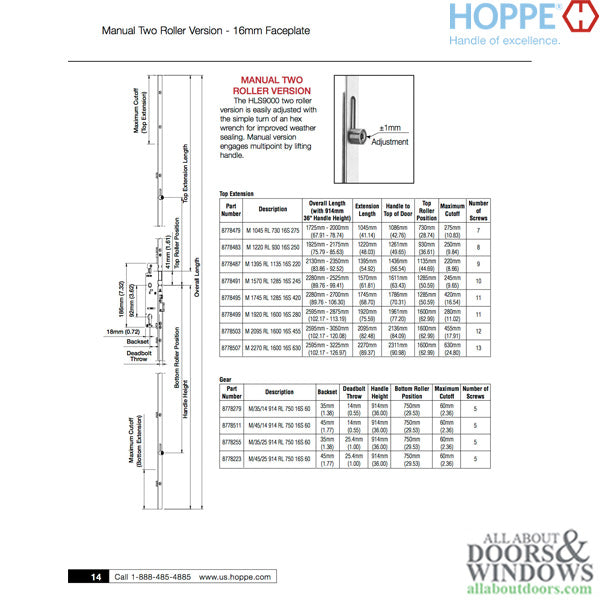

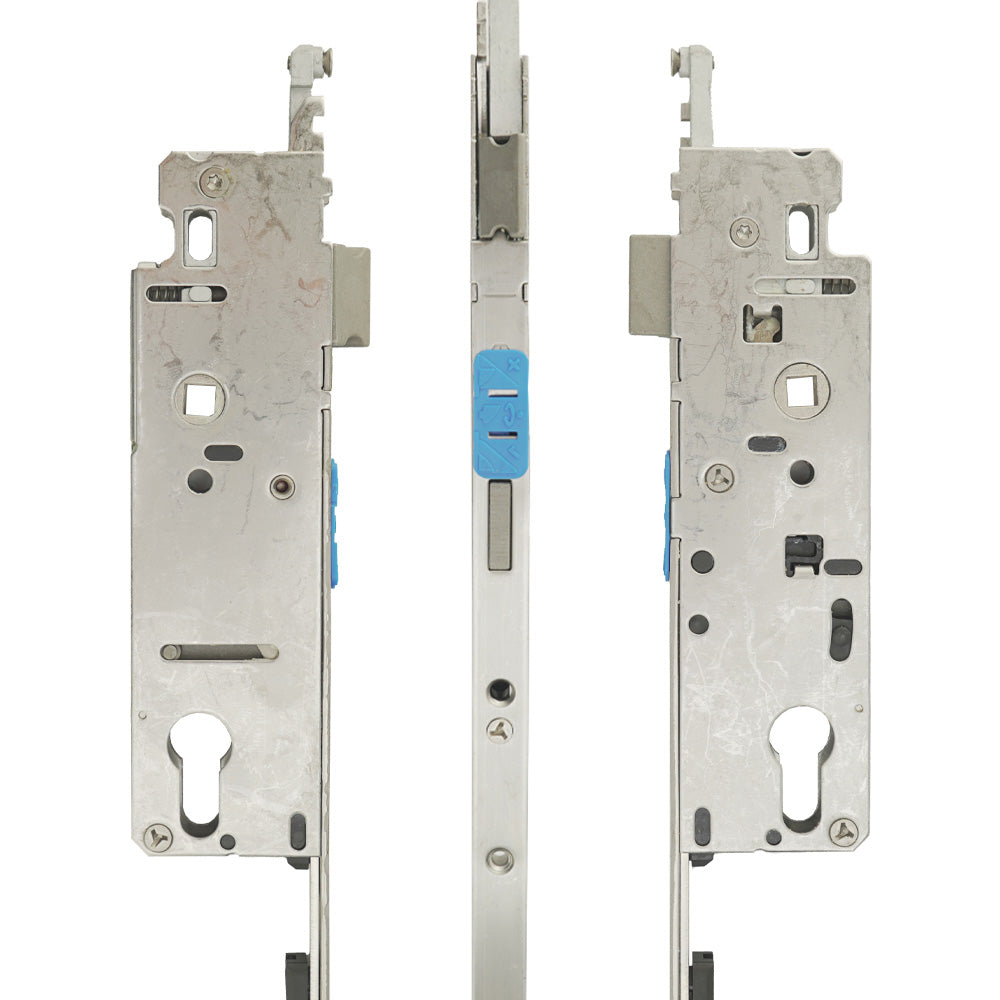

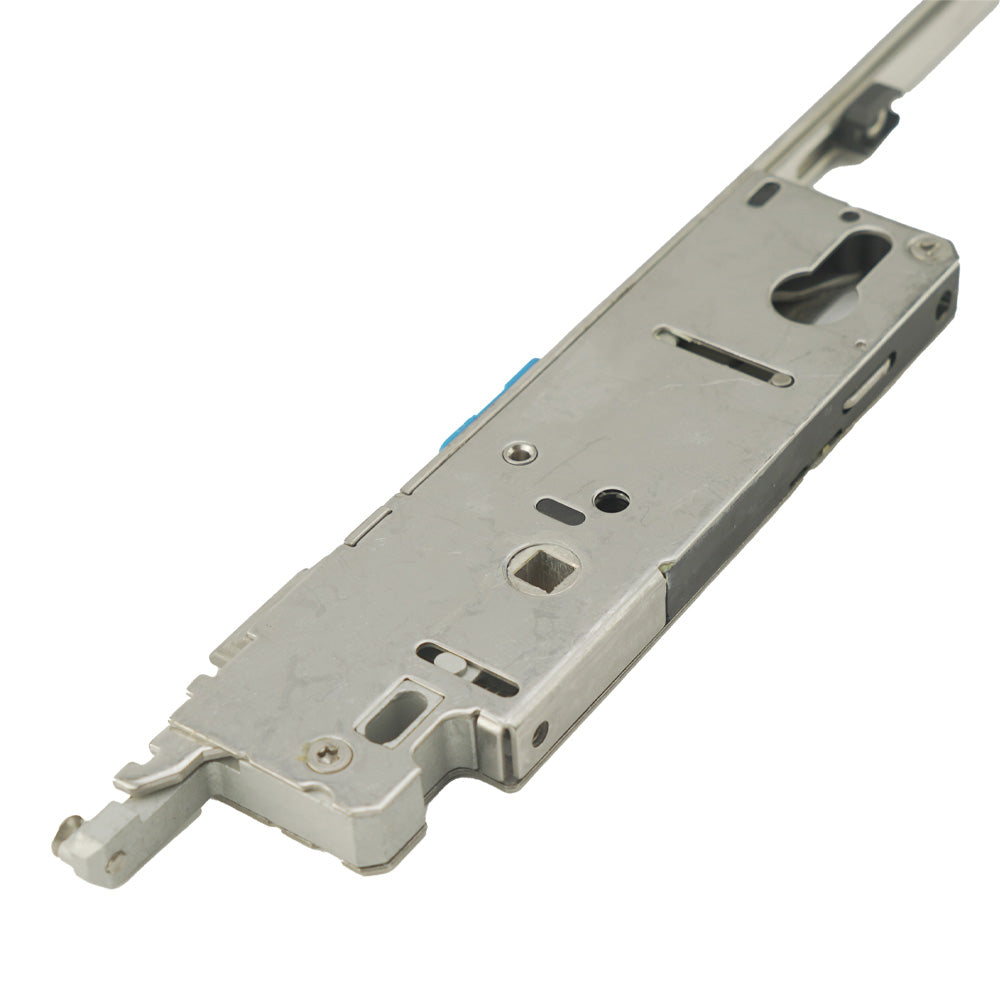

Hoppe HLS9000 Manual Two Roller Version, Bottom Gear for Active Door
Specifications:
-
Faceplate Width: 5/8 Inch (16mm)
-

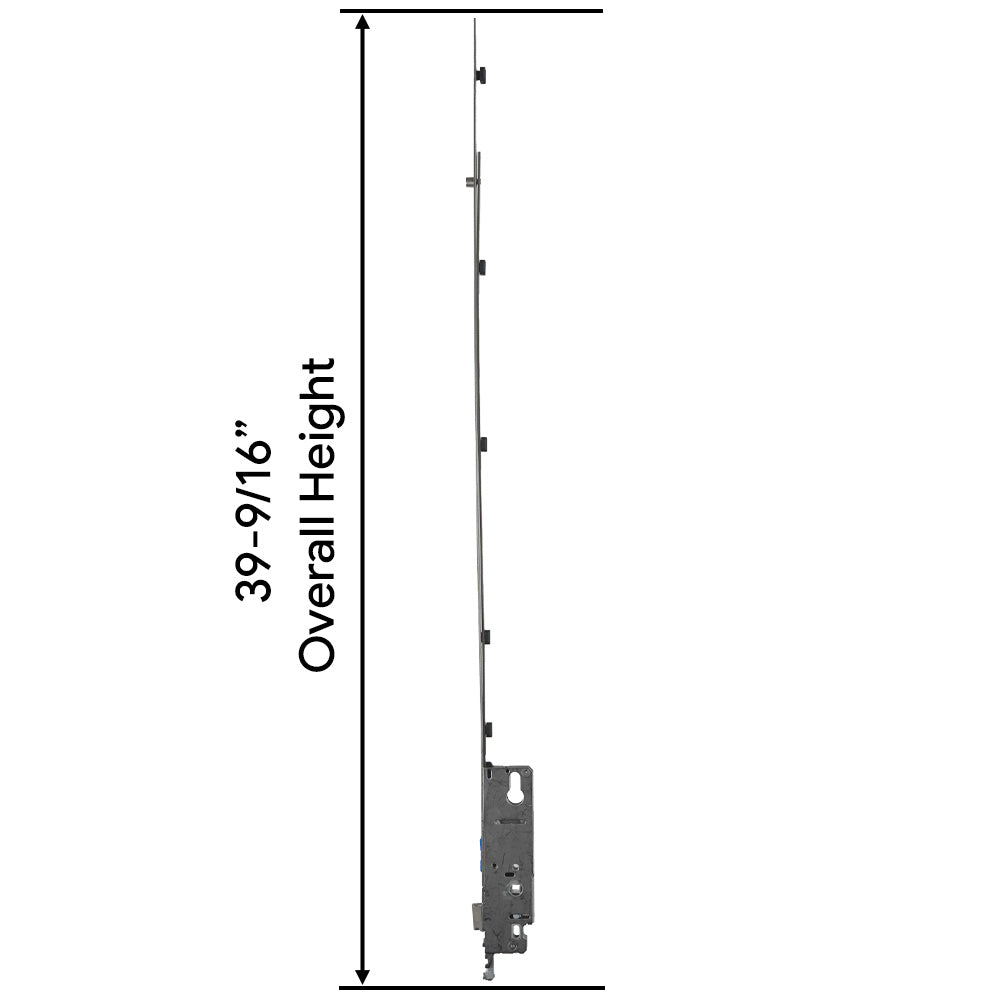

Overall Height: 39-9/16 Inches
-

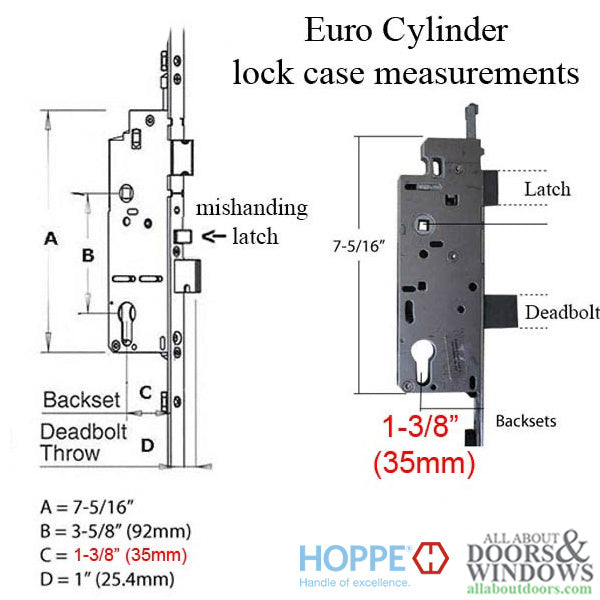

Backset: 1-3/8 Inches (35mm)
-
Deadbolt Throw: 1 Inch (25.4mm)
-

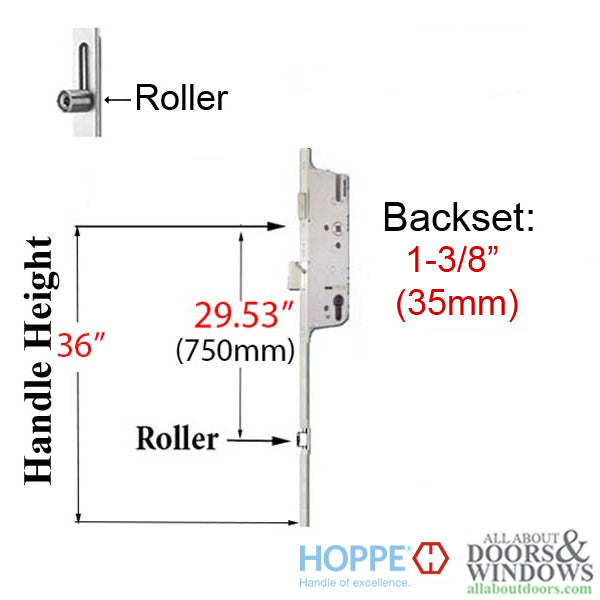

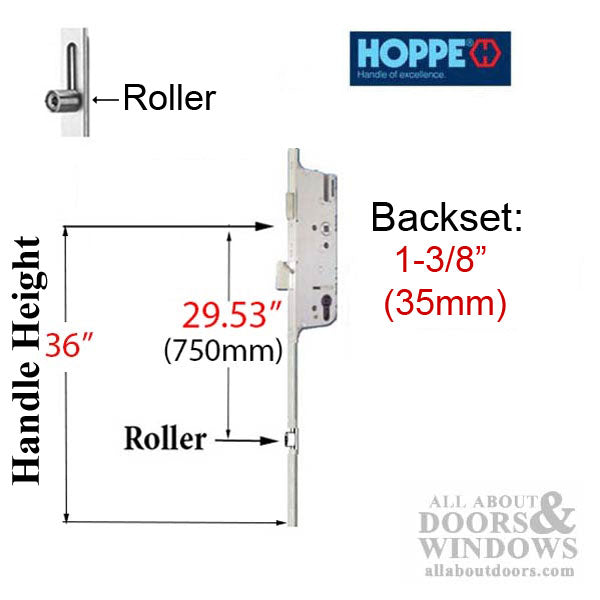

Handle Height: 36 Inches
-

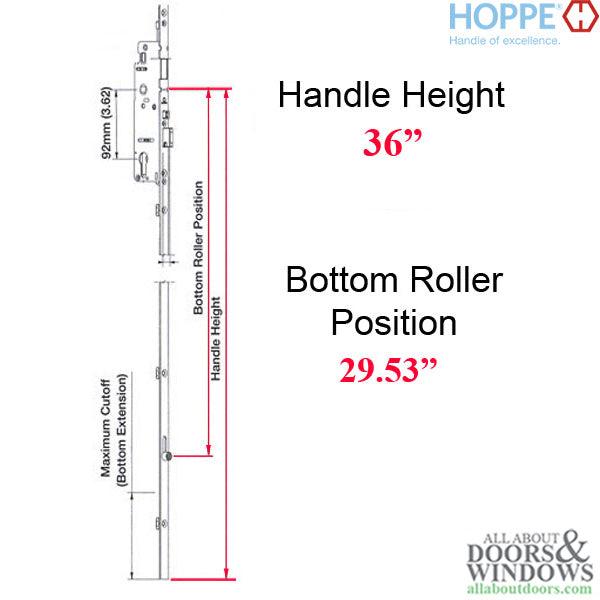

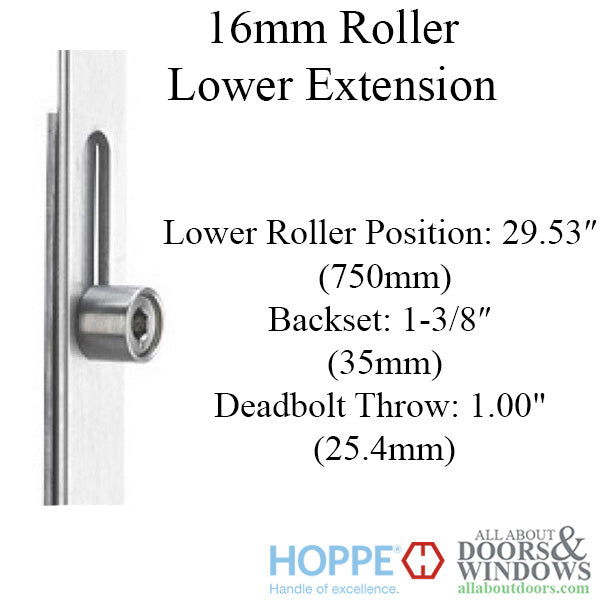

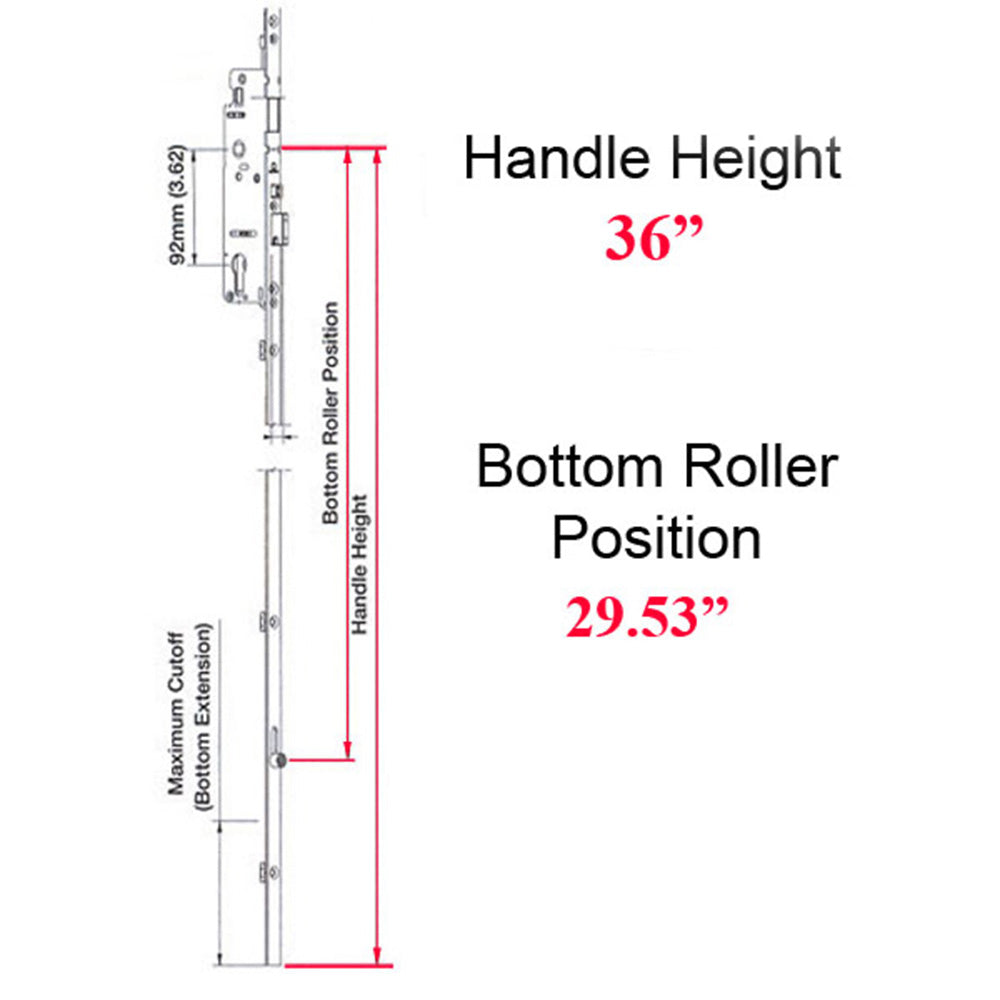

Bottom Roller Position: 29-1/2 Inches
-
Maximum Cutoff: 2-3/8 Inches (60mm)
-
Number of Screws: 5
Hoppe HLS9000 Manual Two Roller Version, Bottom Gear for Active Door<br><br>Faceplate Width: 5/8" (16mm),<br>Backset: 1.38" (35mm),<br>Deadbolt Throw: 1.00" (25.4mm),<br>Handle Height: 36" (914mm),<br>Bottom Roller Position: 29.53 (750mm),<br>Maximum Cutoff: 2.36" (60mm),<br>Number of Screws: 5<br><br>To insure you select the correct Multipoint Lock please see our <a href="https://www.allaboutdoors.com/Article-Multipoint-Lock-Glossary-of-Terms">Multipoint Lock Glossary Of Terms </a><br><br>If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below: <br><a href="https://www.allaboutdoors.com/pdf/articles/hoppeworksheet.pdf">Hoppe Hinged Door Multipoint Lock Worksheet</a><br>When completed, please send it to us <a href="https://www.allaboutdoors.com/contact-us">here</a><br><br>Related Articles:<br><a href="https://www.allaboutdoors.com/Article-How-to-Reverse-the-Handing-on-a-HOPPE-HLS9000-Multipoint-Lock">Change/Reverse Handing of a HOPPE Multi-point Lock</a><br><a href="https://www.allaboutdoors.com/Article-Reversing-the-HOPPE-Mishandling-Device">How to Change/Reverese Mishandling Device</a><br><br>Related Videos:<br><a href="https://www.allaboutdoors.com/video-how-to-rehand-hoppe-multipoint-lock">How to Rehand HOPPE Multipoint Lock</a><br><a href="https://www.allaboutdoors.com/video-connecting-the-top-extension-on-a-hoppe-multipoint-lock">How to Connect a Top Extension to HOPPE Lockbox</a>
