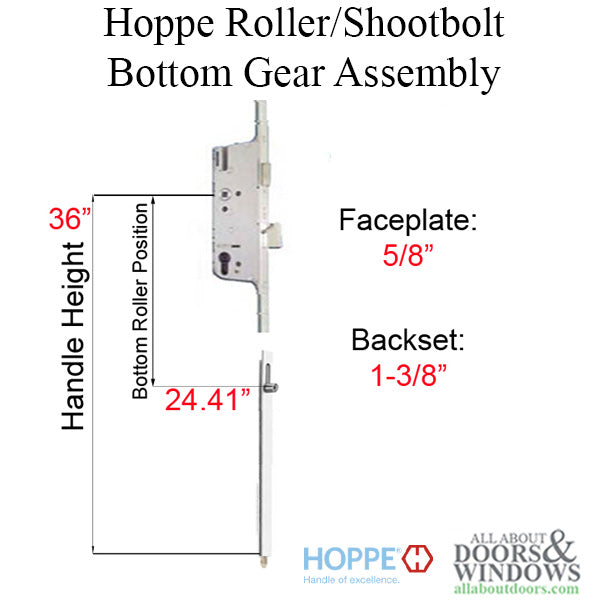

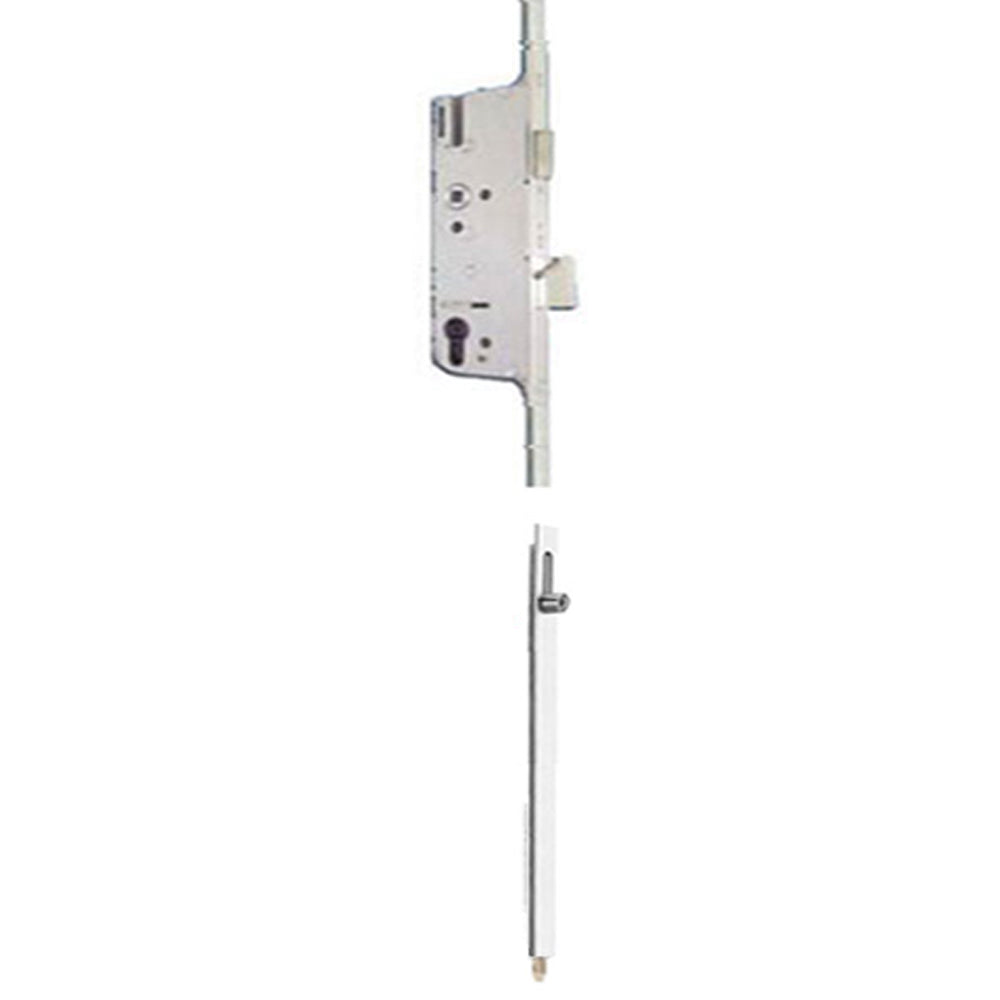

Hoppe HLS9000 Manual Roller-Shootbolt Version, Features a 16mm (5/8") faceplate, Bottom Gear Assembly Only.

Faceplate Width: 5/8" (16mm),

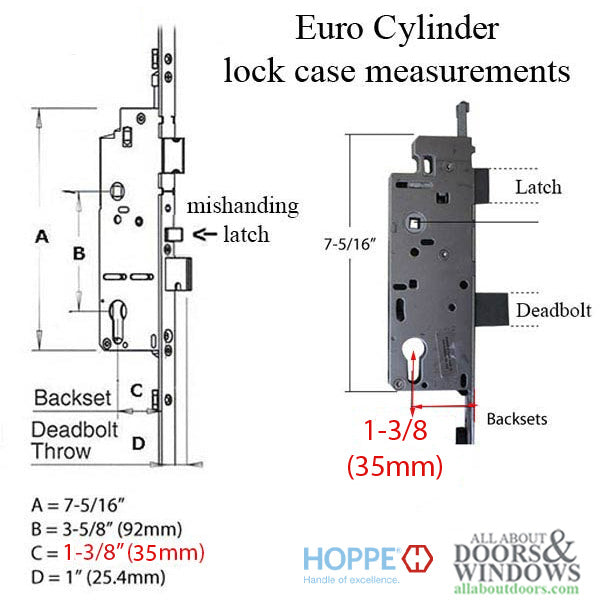

Backset: 1-3/8" (35mm),
Deadbolt Throw: 1" (25.4mm),

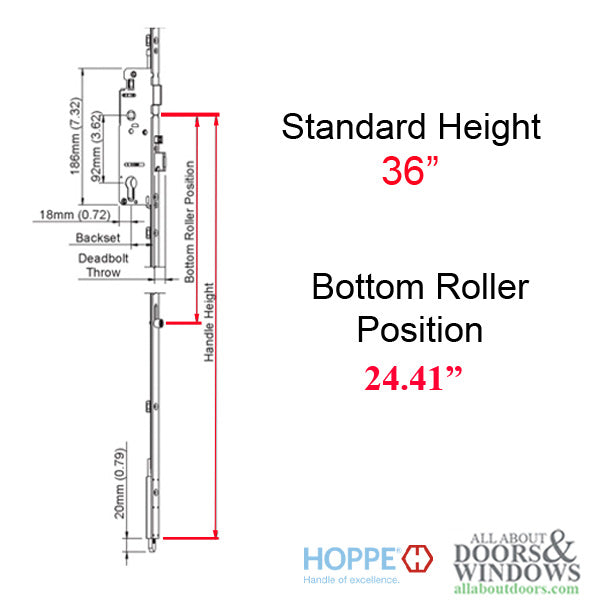

Handle Height: 36"(914mm),
Bottom Roller Position: 24.41" (620mm),
Number of Screws: 6

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here

Related Articles:
Change/Reverse Handing of a HOPPE Multi-point Lock
How to Change/Reverese Mishandling Device

Related Videos:
How to Rehand HOPPE Multipoint Lock
How to Connect a Top Extension to HOPPE Lockbox

Related Parts
8778843 - 16MM MANUAL GEAR, 35/92, ROLLER-SHOOTBOLT, ROLLER @ 24.41", 1" D/B
8778839 - 16MM MANUAL GEAR, 45/92, ROLLER-SHOOTBOLT, ROLLER @ 24.41", 1/2" D/B
8778835 -16MM MANUAL GEAR, 35/92, ROLLER-SHOOTBOLT, ROLLER @ 24.41", 1/2" D/B
8778847 - 16MM MANUAL GEAR, 45/92, ROLLER-SHOOTBOLT, ROLLER @ 24.41", 1" D/B
