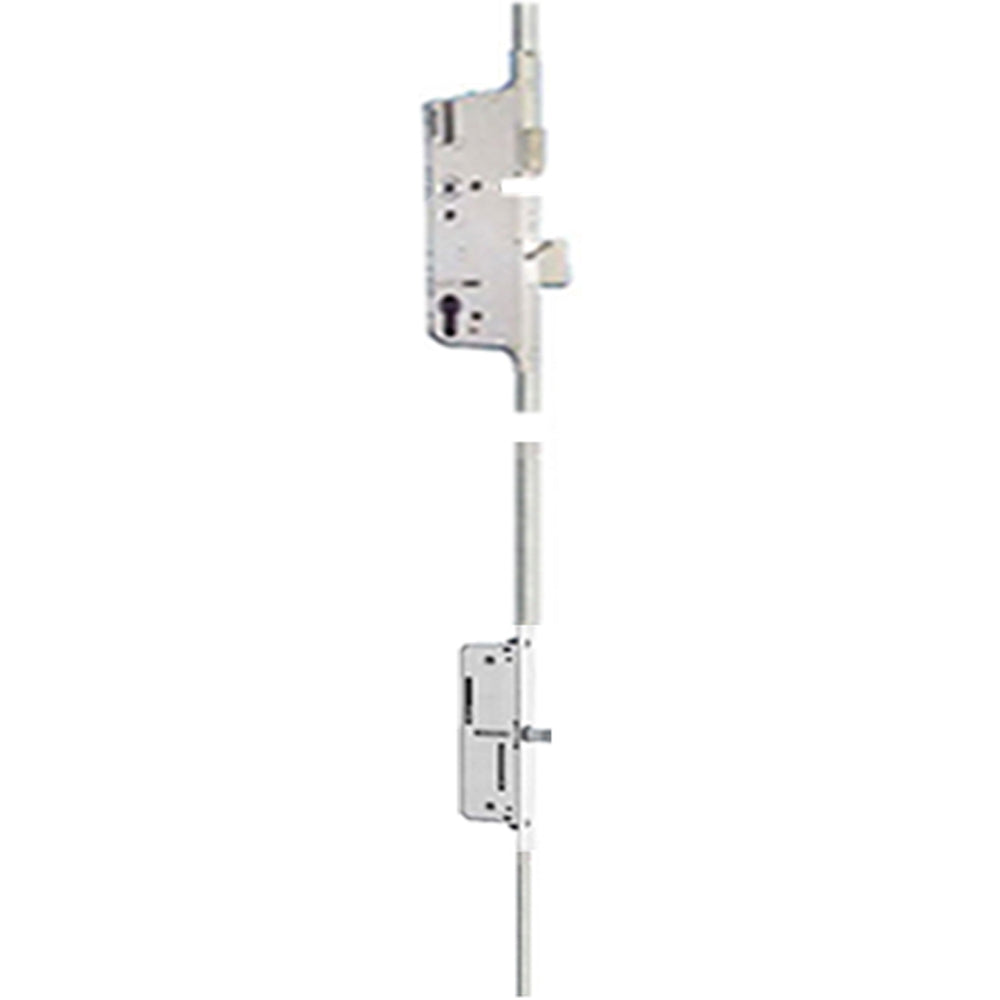

16mm Manual Gear, 35/92, Roundbolt at 26.30", 1" Deadbolt Throw
Use the arrows or swipe left to view all images for this product
16mm Manual Gear, 35/92, Roundbolt at 26.30", 1" Deadbolt Throw
Part Number: $198.35Hoppe 16mm Manual Roundbolt Version, Bottom Gear Only

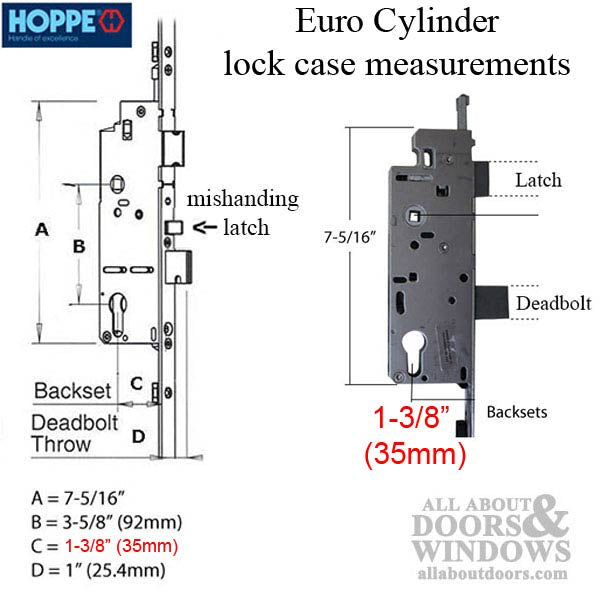

Faceplate Width: 5/8" (16mm),
Backset: 1-3/8 (35mm),
Deadbolt Throw: 1" (25.4mm),

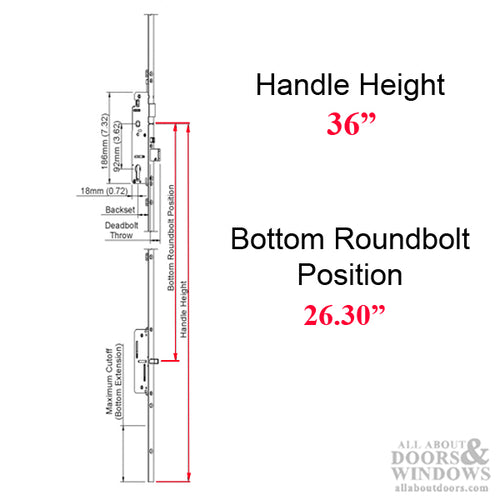

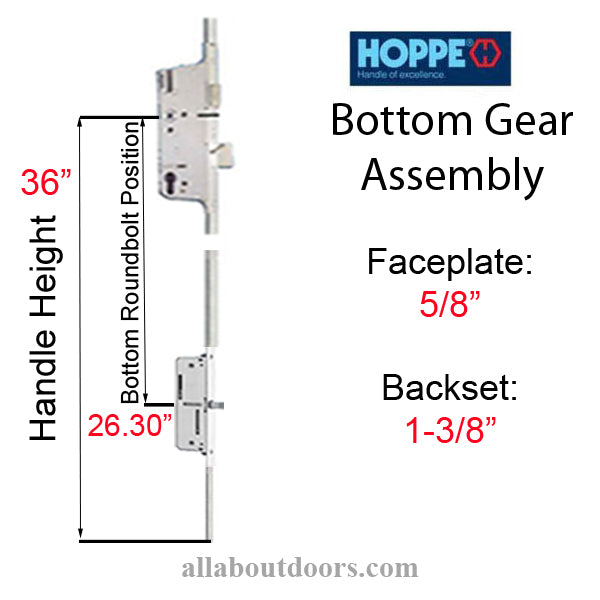

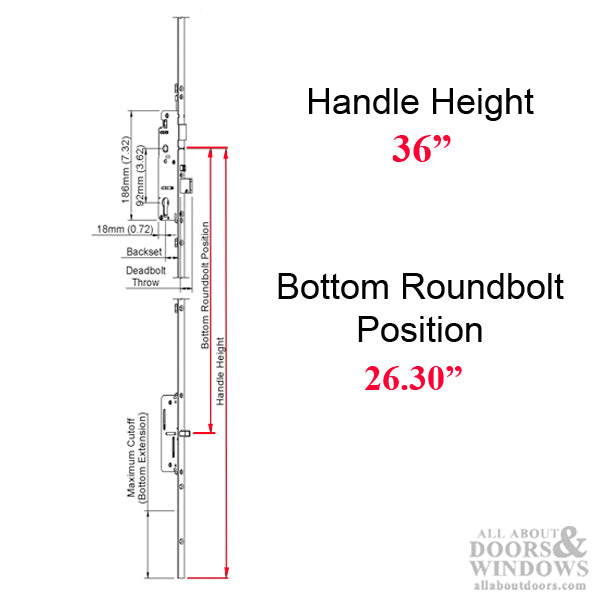

Handle Height 36" (914),
Bottom Roundbolt Position: 26.30" (668mm),
Maximum Cutoff: 5.51" (140mm),
Number of Screws: 5
Faceplate Width: 5/8" (16mm),
Backset: 1-3/8 (35mm),
Deadbolt Throw: 1" (25.4mm),
Handle Height 36" (914),
Bottom Roundbolt Position: 26.30" (668mm),
Maximum Cutoff: 5.51" (140mm),
Number of Screws: 5
Hoppe 16mm Manual Roundbolt Version, Bottom Gear Only
Faceplate Width: 5/8" (16mm),Backset: 1-3/8 (35mm),Deadbolt Throw: 1" (25.4mm),Handle Height 36" (914),Bottom Roundbolt Position: 26.30" (668mm),Maximum Cutoff: 5.51" (140mm),Number of Screws: 5
