16mm Manual Gear, 35/92 Shootbolt, 1/2" D/B
Use the arrows or swipe left to view all images for this product
16mm Manual Gear, 35/92 Shootbolt, 1/2" D/B
Part Number: $170.43Hoppe 16mm Faceplate Bottom Gear Only
Manual Locking for Active Door.

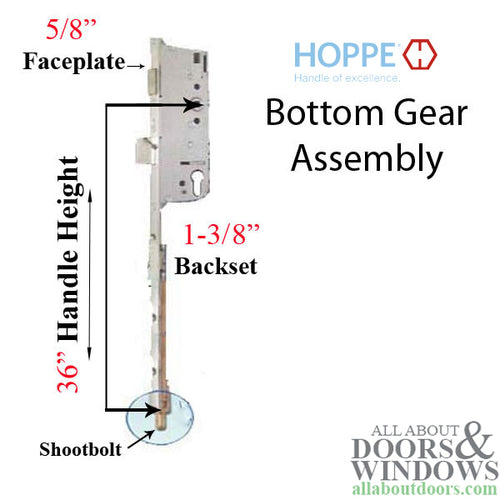

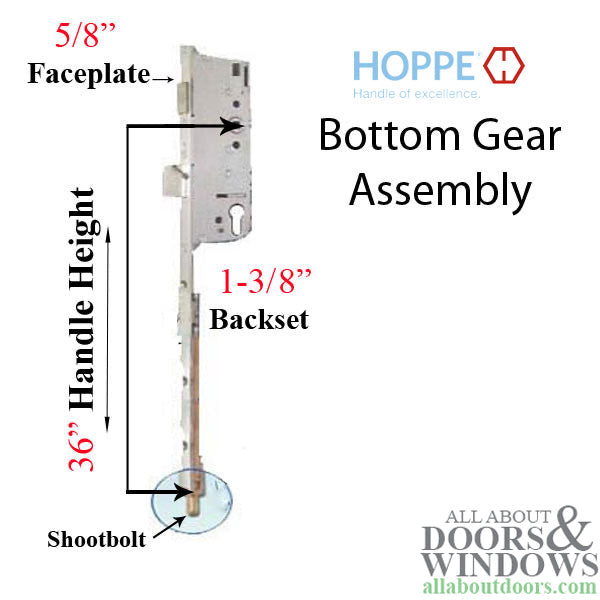

Faceplate Width:5/8" (16mm)

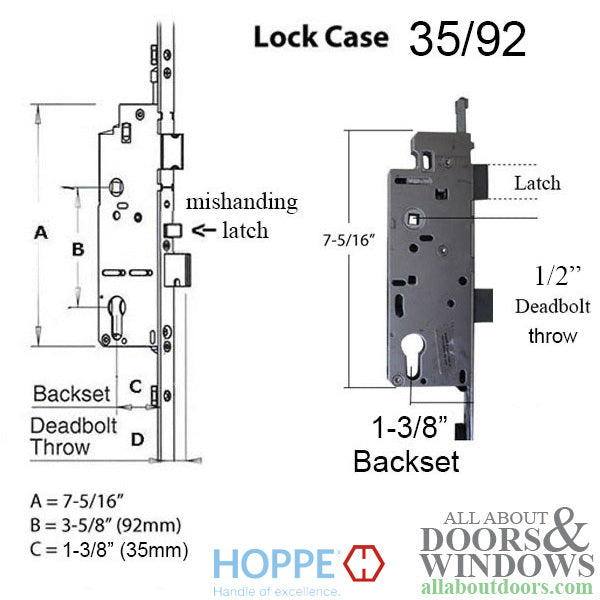

Backset: 1.38" (35mm)
Deadbolt Throw: .55" (14mm)

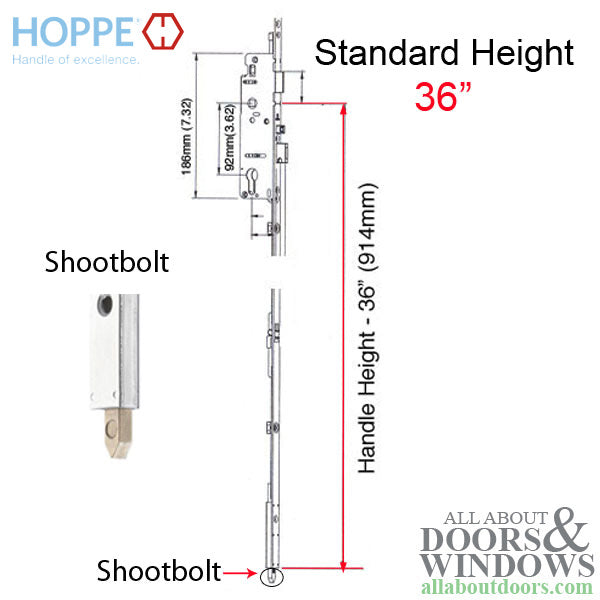

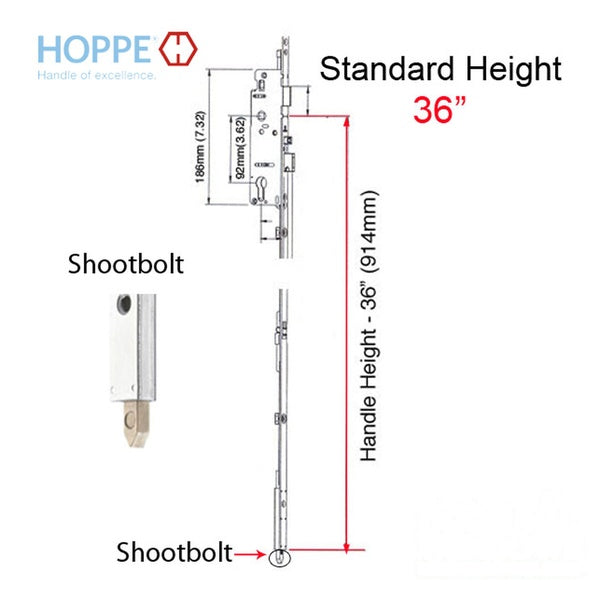

Handle Height: 36" (914mm)
Number of Screws: 6
Manual Locking for Active Door.
Faceplate Width:5/8" (16mm)
Backset: 1.38" (35mm)
Deadbolt Throw: .55" (14mm)
Handle Height: 36" (914mm)
Number of Screws: 6
Hoppe 16mm Faceplate Bottom Gear OnlyManual Locking for Active Door.
Faceplate Width:5/8" (16mm)
Backset: 1.38" (35mm)
Deadbolt Throw: .55" (14mm)
Handle Height: 36" (914mm)
Number of Screws: 6
