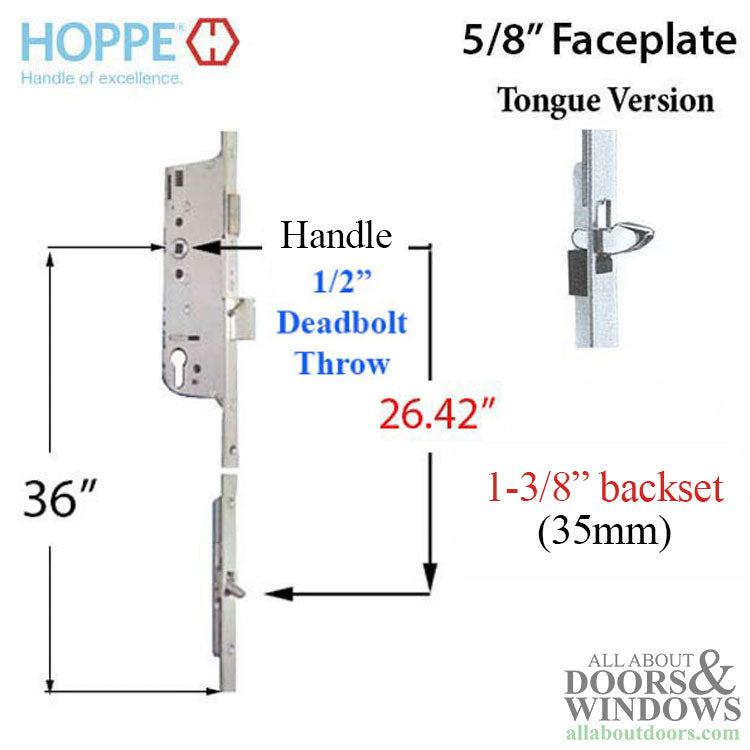

Hoppe Multipoint Lock Manual Gear Tongue Version 16mm Faceplate 35mm Backset

Part Number: 8778171 Price: $165.30

Tongue Version, Multi-point Lock bottom gear for Active Door

Hoppe 8778171 HLS-9000 Multipoint Manual Gear, 90057 Tongue Version
NOTE: This is the bottom gear only

Faceplate: .63 inch (16mm) Stainless Steel

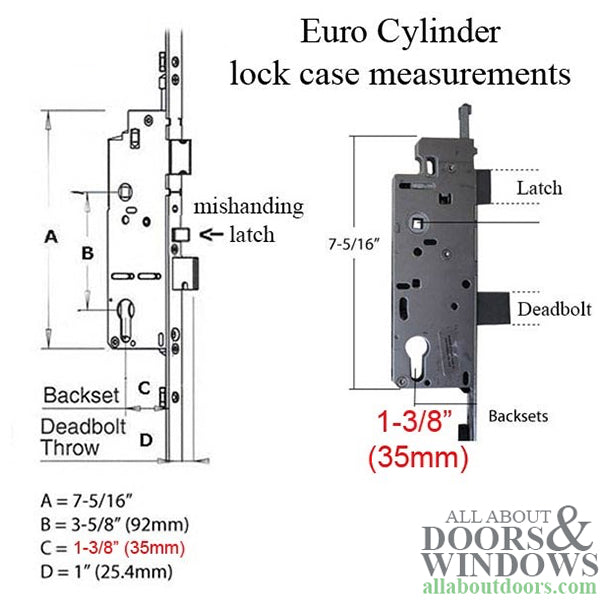

Backset: 1.38 inch (35mm)
Deadbolt throw: .55 inch  (14mm)
Handle Height: 36.00 inch (914mm)

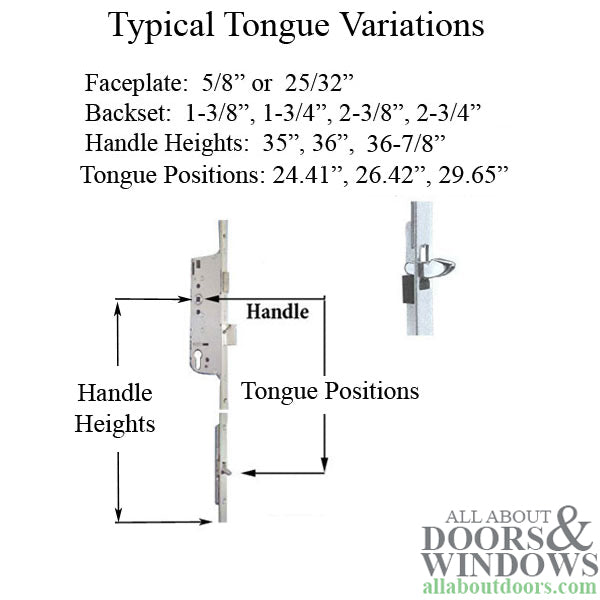

Bottom Tongue Position: 26.42 inch (671mm)
Maximum Cutoff:  4.53 inch (115mm)
Screws:  6

Please double check all measurements before ordering.

Priced and sold each.
