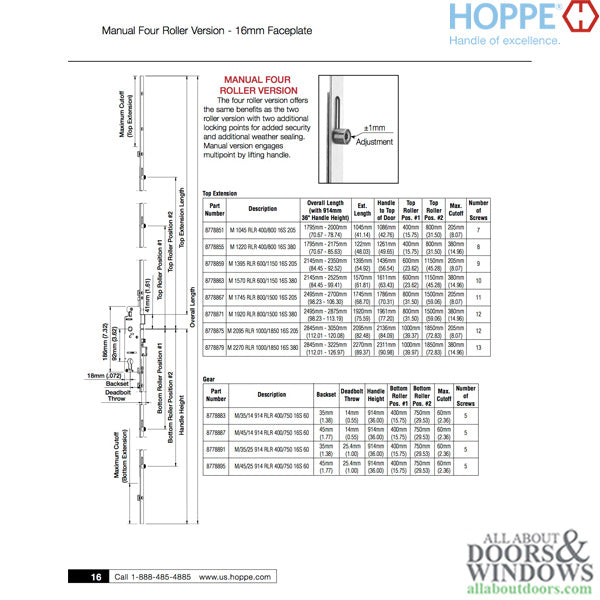

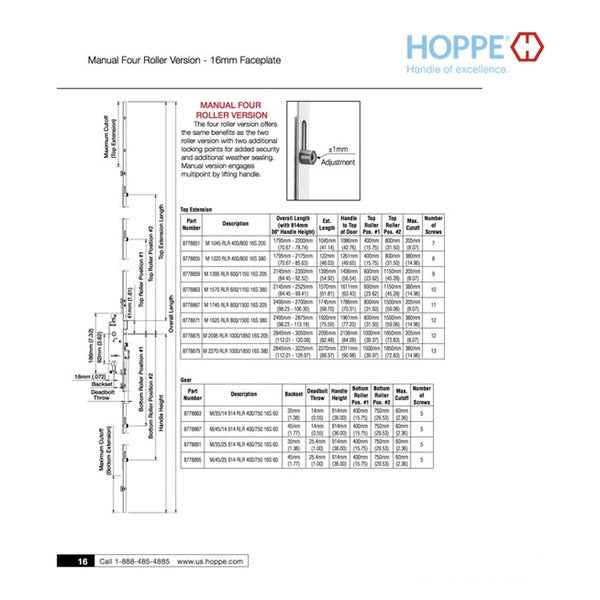

HOPPE HLS9000 Manual Locking Bottom Gear, Multipoint Lock Four Roller Version, Locking System

Faceplate Width: 5/8" (16mm),

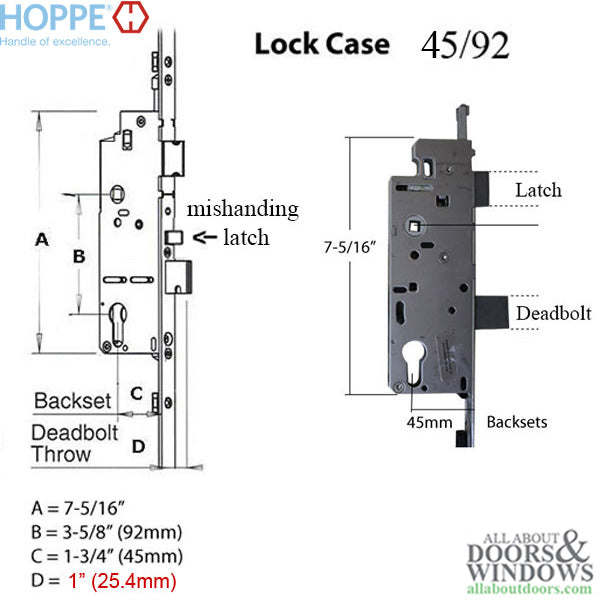

Lock Backset: 1-3/4" (45mm),
Deadbolt Throw: 1" (25.4mm),

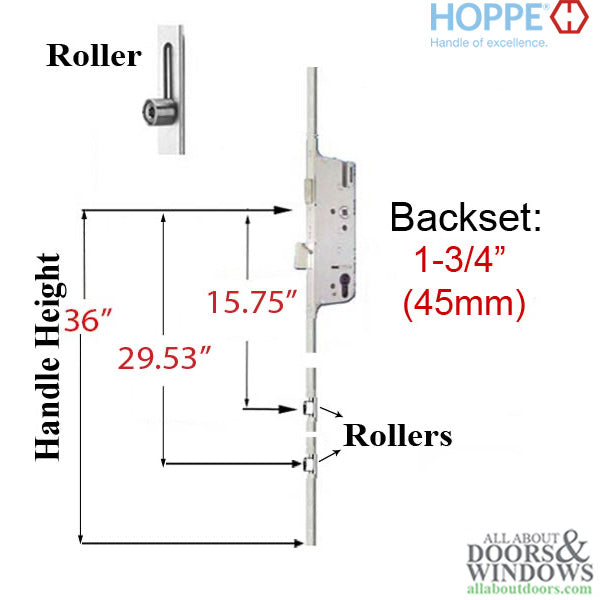

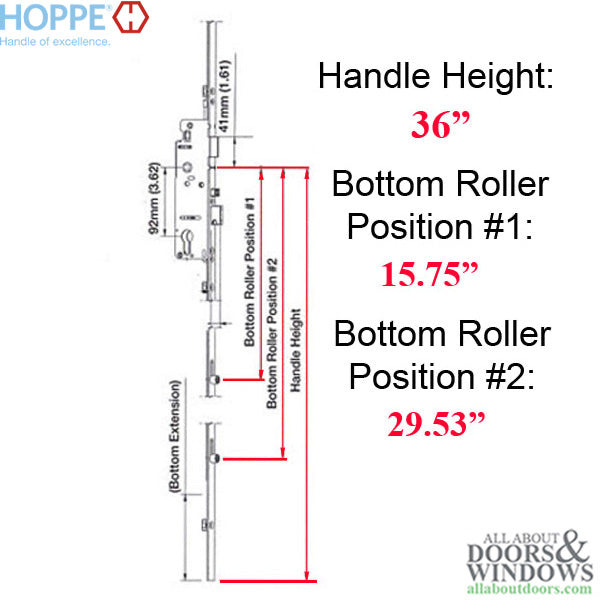

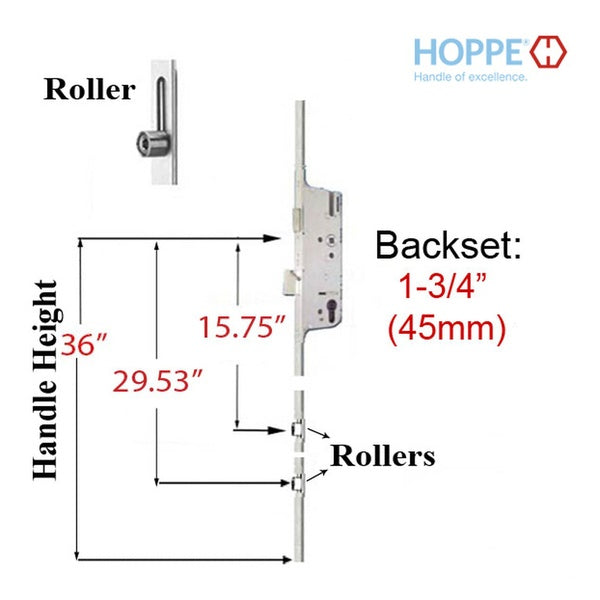

Handle Height: 36" (914mm),

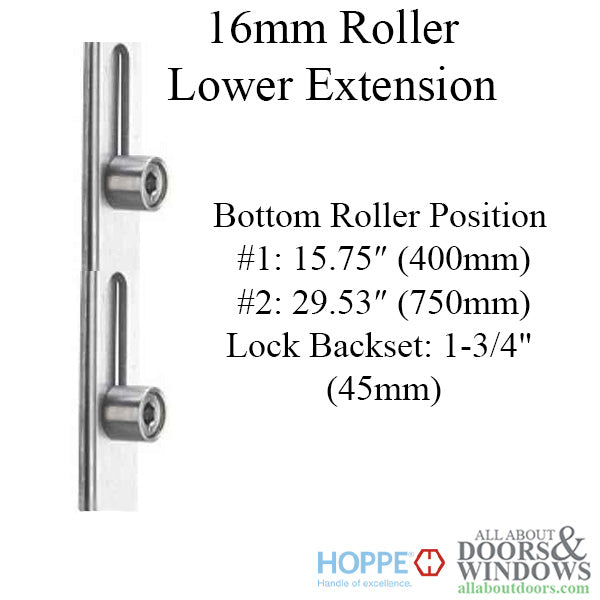

Bottom gear has 2 rollers;  Measured from handle to center of roller in locked position
1st Roller Position  15.75 (400mm) with roller in down (locked) position.
2nd Roller Position 29.53 (750mm) with roller in down (locked) position.
Maximum Cutoff:  2.36 inches (60mm),
Number of Screws:  5

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
