16mm Manual Gear, 45/92, Roller @ 29.53", 37" HH
Use the arrows or swipe left to view all images for this product
16mm Manual Gear, 45/92, Roller @ 29.53", 37" HH
Part Number: $151.52OLD STYLE
HOPPE Bottom Gear, Roller Version, Manual Locking for Active Door.
Note: This is for the 37 inch Special Handle Height
Faceplate: 5/8 inch (16mm) Stainless Steel
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch (25mm)

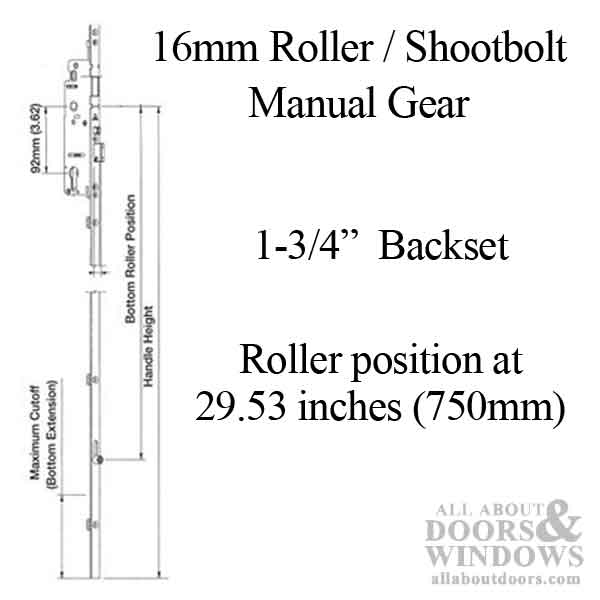

Bottom Roller Position 29.53 inches (750mm)
Maximum Cutoff: N/A
Number of screws 6
HOPPE Bottom Gear, Roller Version, Manual Locking for Active Door.
Note: This is for the 37 inch Special Handle Height
Faceplate: 5/8 inch (16mm) Stainless Steel
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch (25mm)
Bottom Roller Position 29.53 inches (750mm)
Maximum Cutoff: N/A
Number of screws 6
OLD STYLE
HOPPE Bottom Gear, Roller Version, Manual Locking for Active Door.
Note: This is for the 37 inch Special Handle Height
Faceplate: 5/8 inch (16mm) Stainless Steel
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 1 inch (25mm)
Bottom Roller Position 29.53 inches (750mm)
Maximum Cutoff: N/A
Number of screws 6
