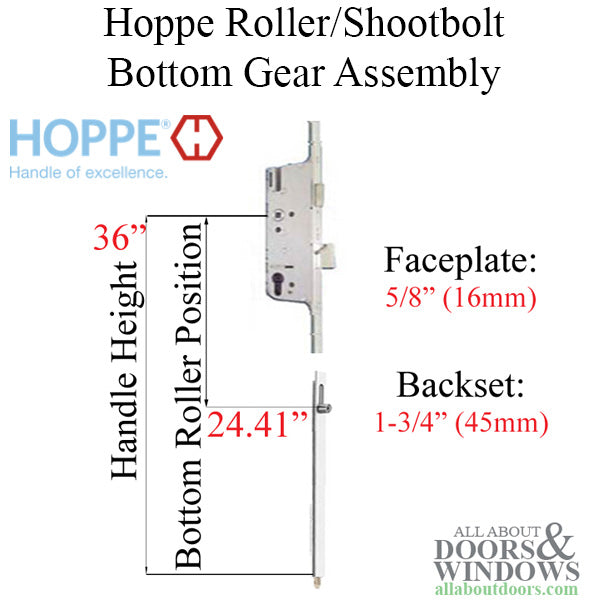

Hoppe HLS9000 Multi-Point Gear, Roller / Shootbolt Version,
Faceplate: 5/8 inch (16mm)

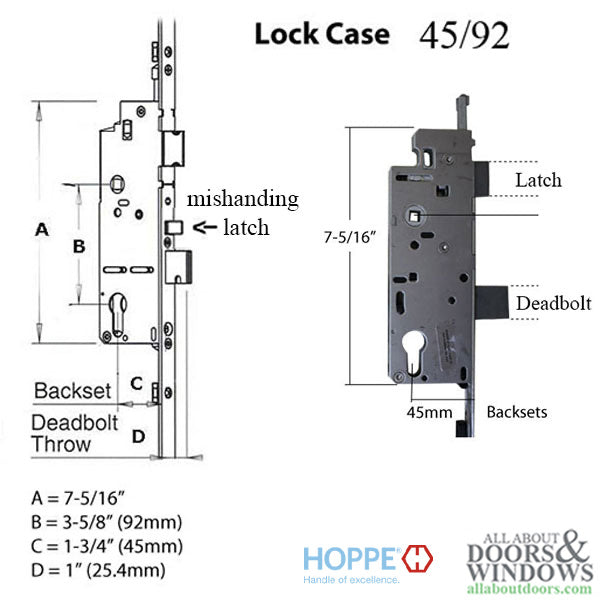

Backset: 1-3/4 inch (45mm)
Deadbolt Throw 1 inch ( 25mm)
Handle Height: 36 inch ( 914mm)
Roller Position: 24.41 inches (620mm)
Shootbolt projects: 3/4 inch (20mm)

Can be replaced with 8778839 (1/2" deadbolt throw instead of 1")

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
