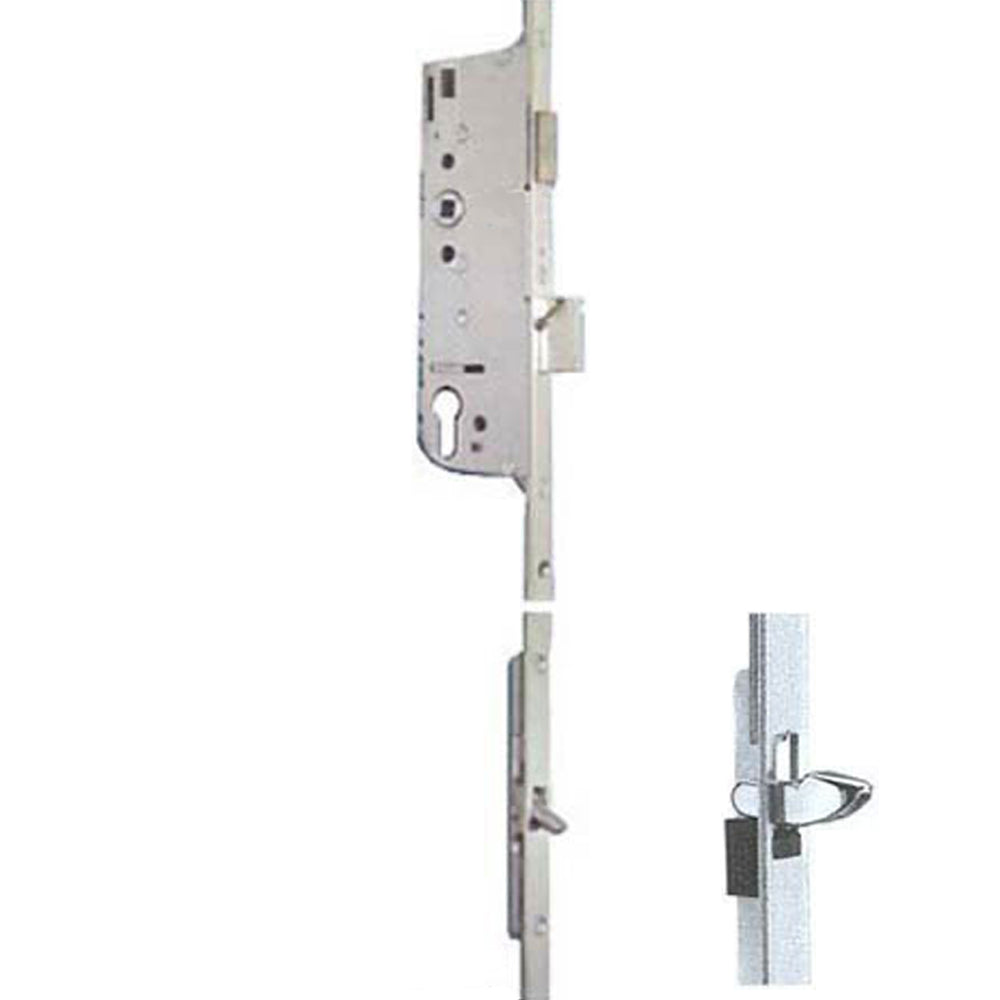

Hoppe 16mm Manual Gear, 45/92, Tongue at 26.42", 1/2" D/B
Use the arrows or swipe left to view all images for this product
Hoppe 16mm Manual Gear, 45/92, Tongue at 26.42", 1/2" D/B
Part Number: $151.52

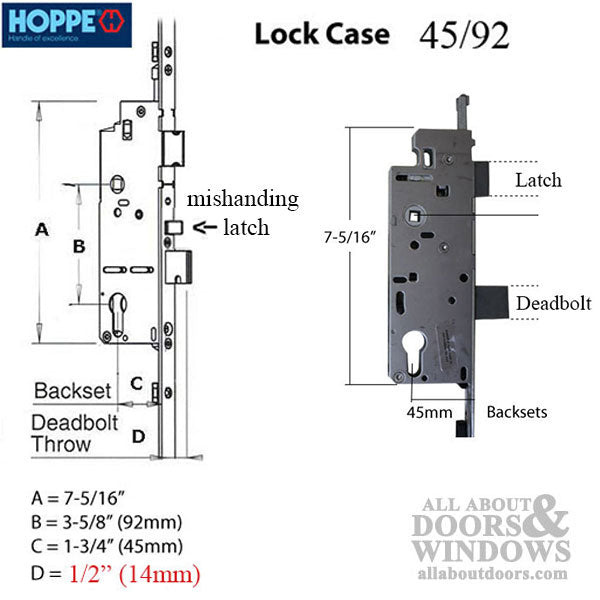

Hoppe HL S9000 Multipoint Lock Manual Gear, Tongue Version for Active Door.

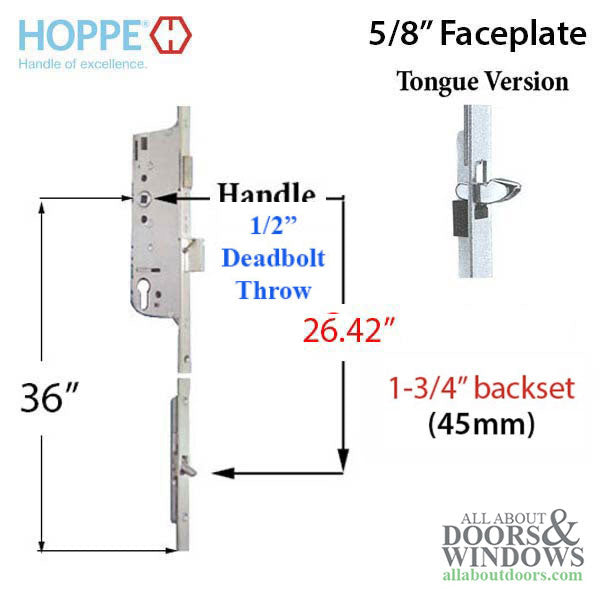

Faceplate: 5/8 inch .63 inch (16mm),
Backset: 1-3/4 inch 1.77 inch (45mm),
Deadbolt throw: 1/2 inch .55 inches. (14mm)
Handle Height 36 inch (914mm),
Bottom Tongue Position 26.42 inches (671mm),
Maximum Cutoff 4.53 inches (115mm).
Number of Screw holes: 5
Hoppe HL S9000 Multipoint Lock Manual Gear, Tongue Version for Active Door.
Faceplate: 5/8 inch .63 inch (16mm), Backset: 1-¾ inch 1.77 inch (45mm), Deadbolt throw: 1/2 inch .55 inches. (14mm) Handle Height 36 inch (914mm), Bottom Tongue Position 26.42 inches (671mm), Maximum Cutoff 4.53 inches (115mm). Number of Screw holes: 5
