Hoppe 8778183 HL S9000 MP Manual Gear, Tongue Version with 16mm Faceplate

Tongue Version, Multi-point Lock bottom gear for Active Door - Deadbolt and 1 tongue. When used with top extension, this Multi-point Lock has 3 locking points: 1 Deadbolt, 2 Tongues.

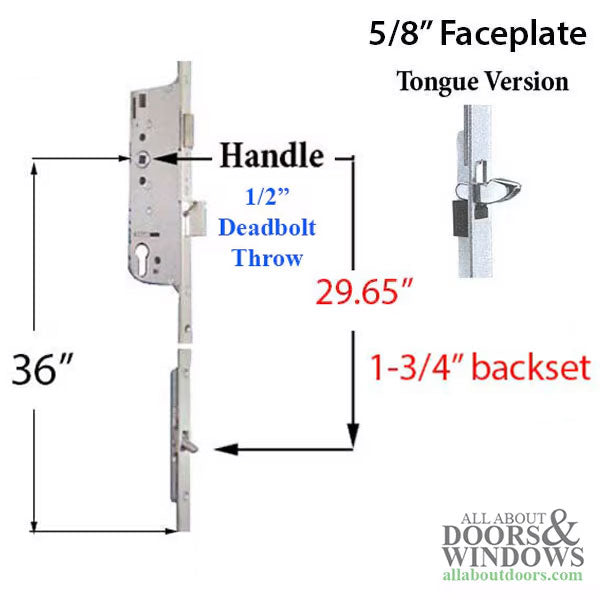

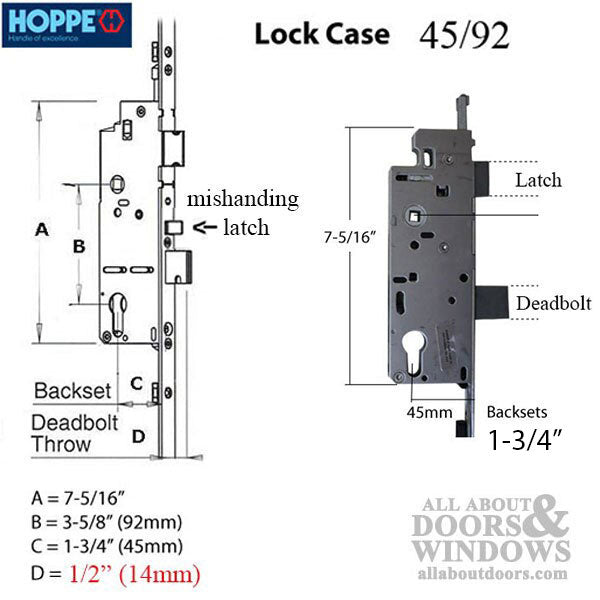

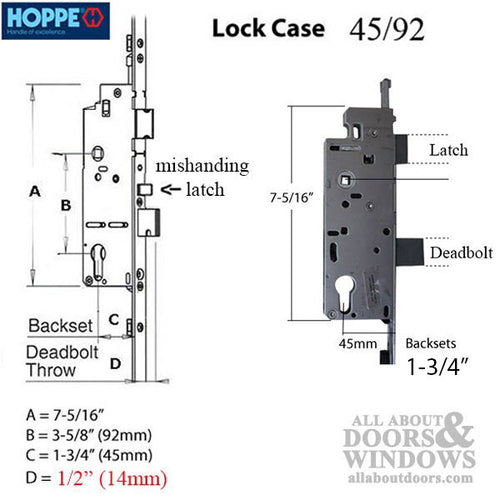

Specifications:

  • Faceplate Width: 5/8 Inch (16mm)
  • Overall Height: 39-5/8 Inches
  • Backset: 1-3/4 Inches
  • Deadbolt Throw: 9/16 Inch (14mm)
  • Handle Height: 36 inches
  • Bottom Tongue Position: 29-5/8 Inches
  • Maximum Cutoff: 1-3/16 Inches
  • Screws: 5
