Special Size Hoppe HLS9000 Middle Extension. for Active Shootbolt with 5/8 inch faceplate width.
This Extension is used for doors Shorter than 76-5/8 inches or Special handle heights

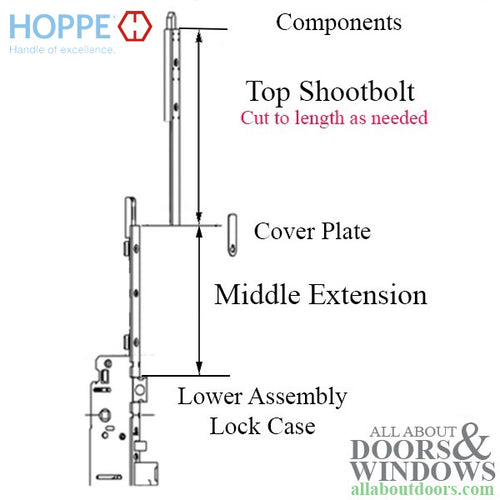

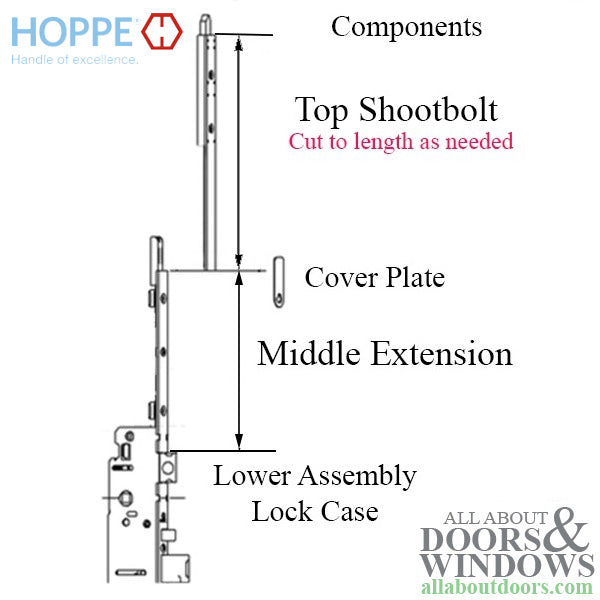

There are 6 Middle Extensions used in combination with 6 Top Shootbolt Extension to obtain desired door heights.

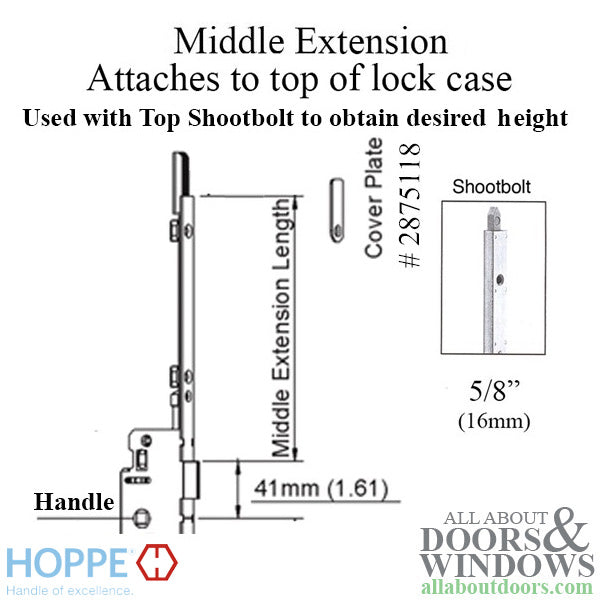

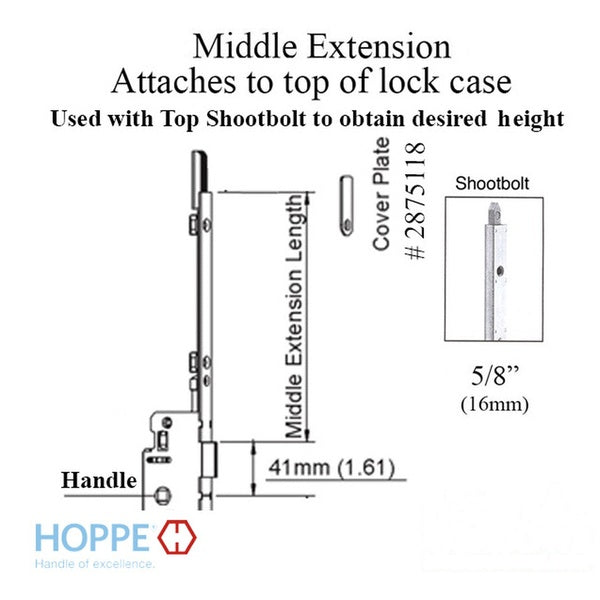

Application: Middle Extension, used with top shoot bolt extension
Faceplate Width: 5/8 (16mm)

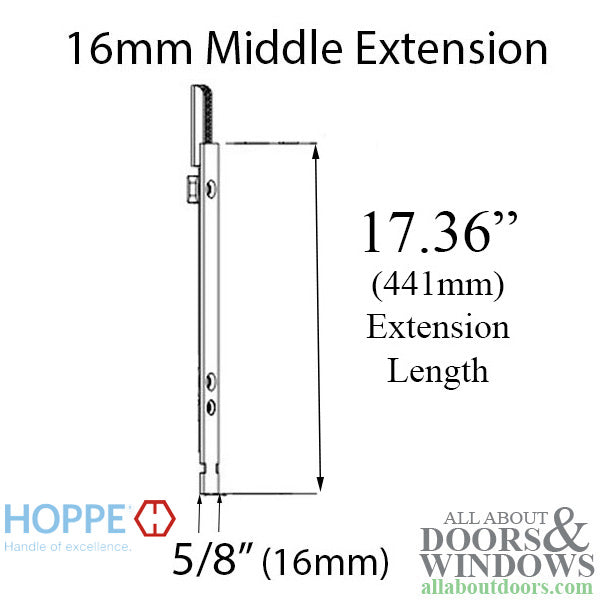

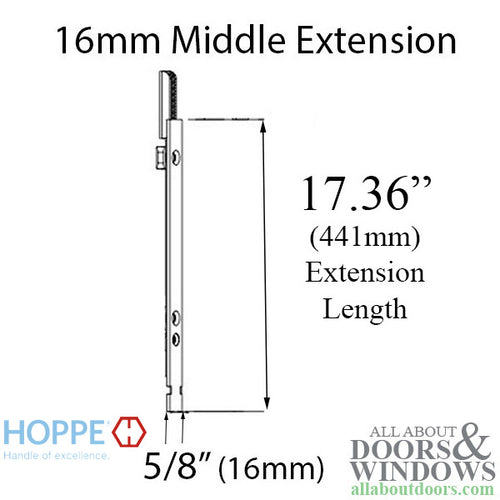

Middle Extension Length: 17.36 inches
Maximum Cutoff: N/A, Does not get cut
Screws: 3

Note 1 - Used with SNE Crestline with 39-5/8 inch handle height
Note 2 - Used with Hoppe Shootbolt version to replace short door height of 76-1/4 inches
