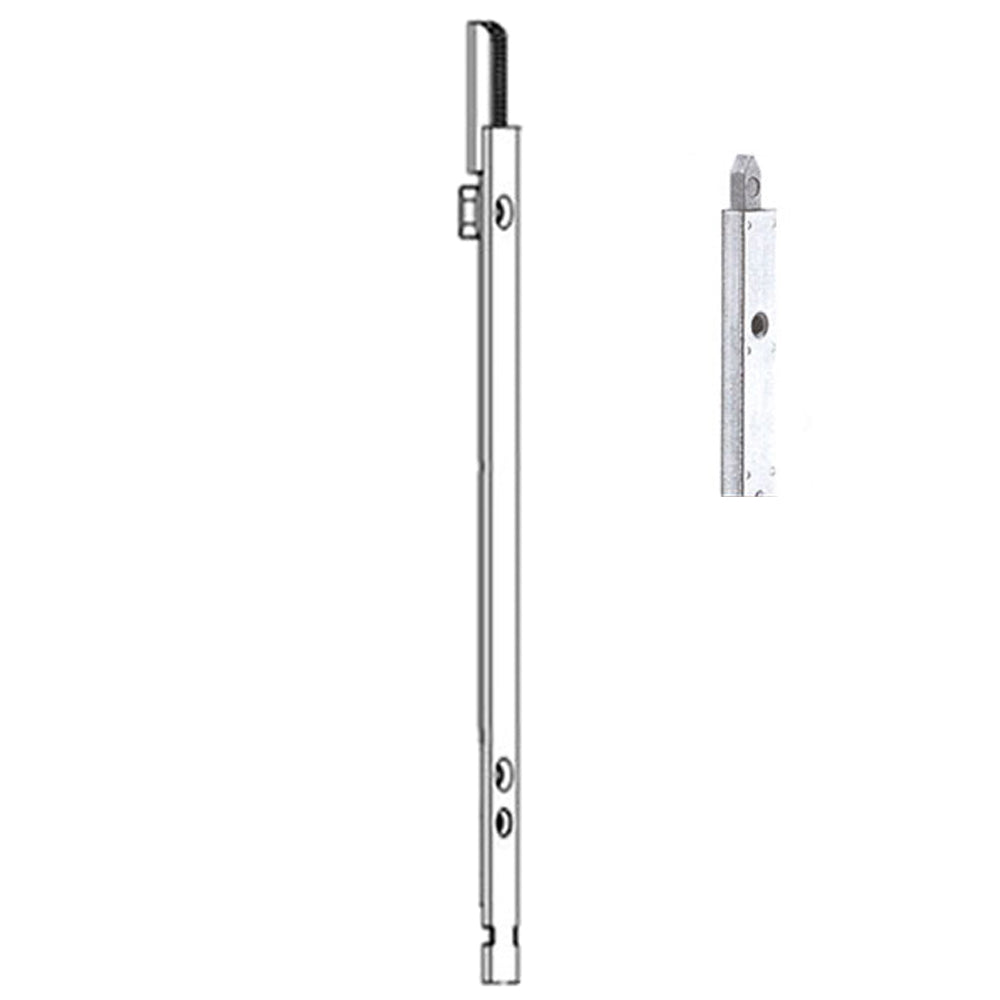

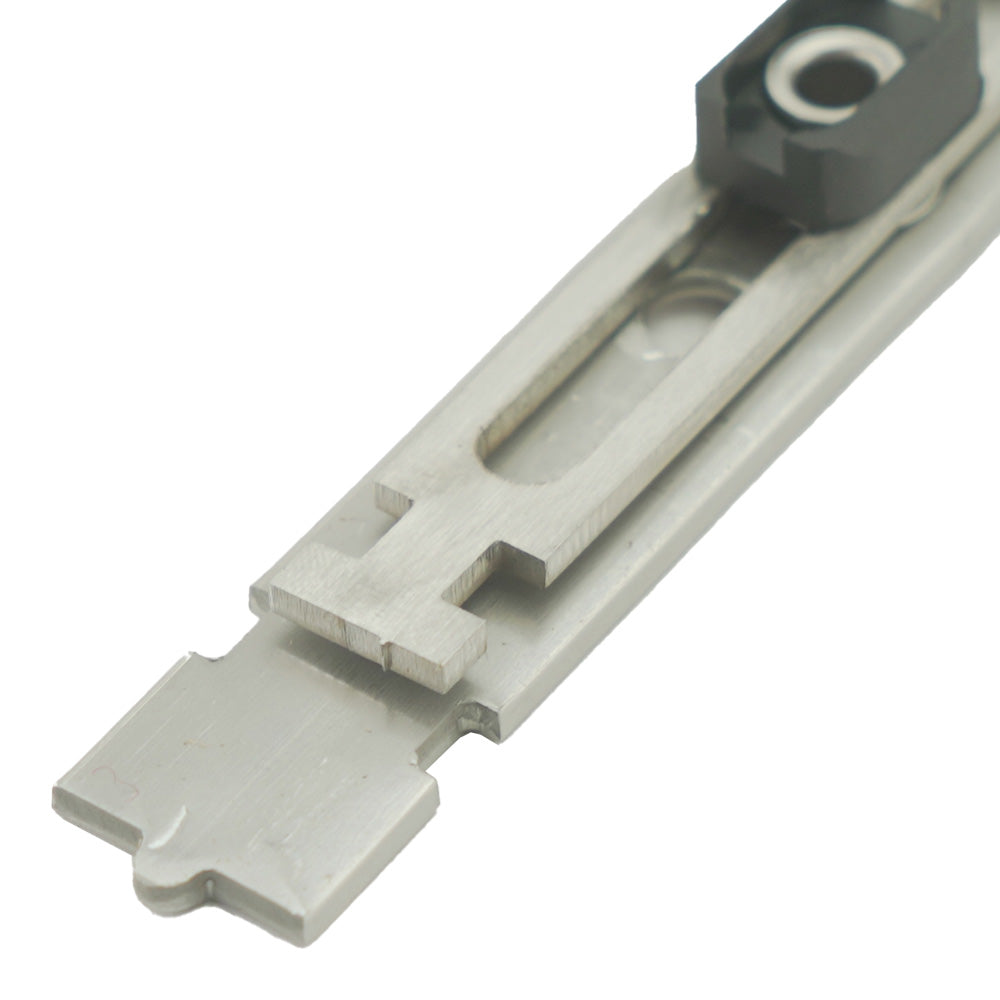

Hoppe HLS9000 Middle Extension. for Active Shootbolt with 5/8 inch faceplate width

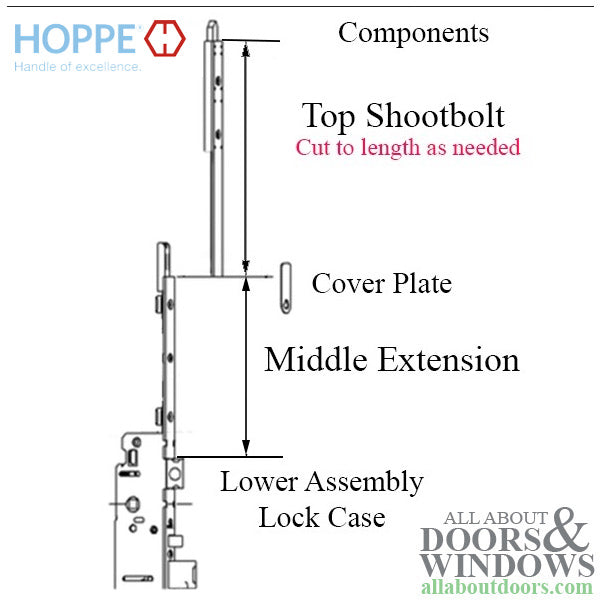

There are 3 basic Middle Extensions used in combination with 6 Top Shootbolt Extension to obtain desired door heights.
Extension # 8778691 is for doors ranging from 76.61 to 95.31 inches when matched with one of six top shootbolts. See Chart

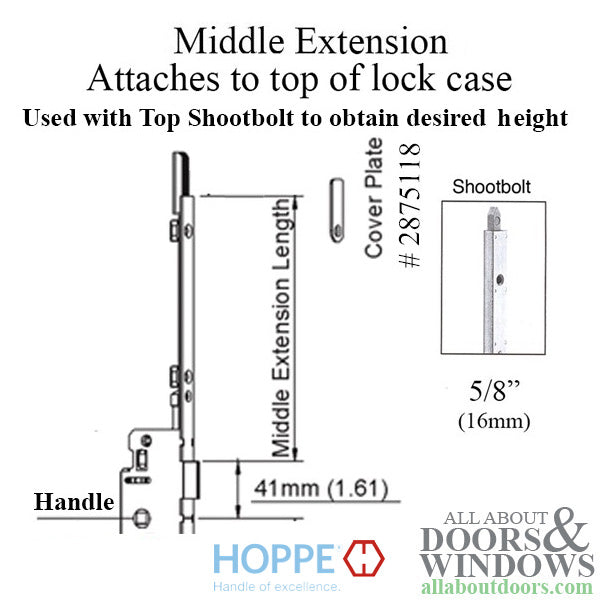

Application: Middle Extension, used with top shoot bolt extension

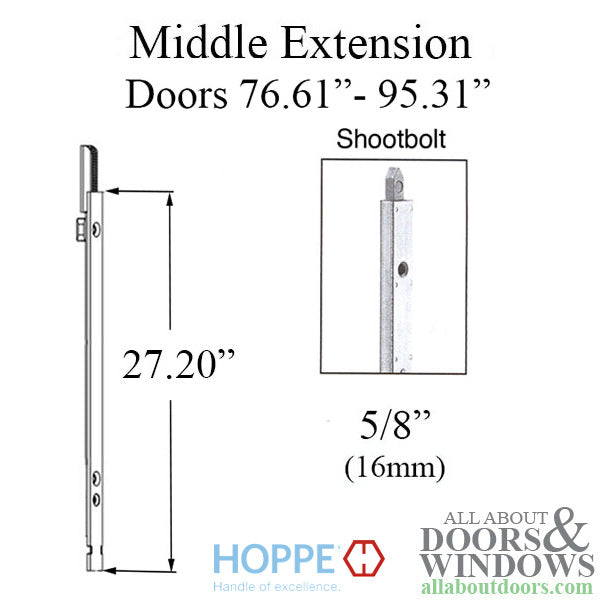

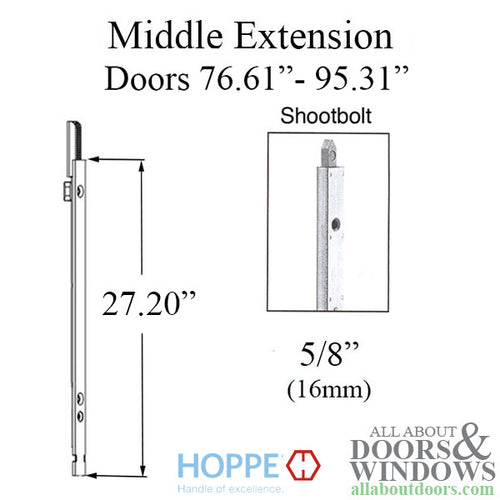

Middle Extension Length: 27.20 inches (691mm)
Maximum Cutoff: N/A, Does not get cut
Number of Screws: 4

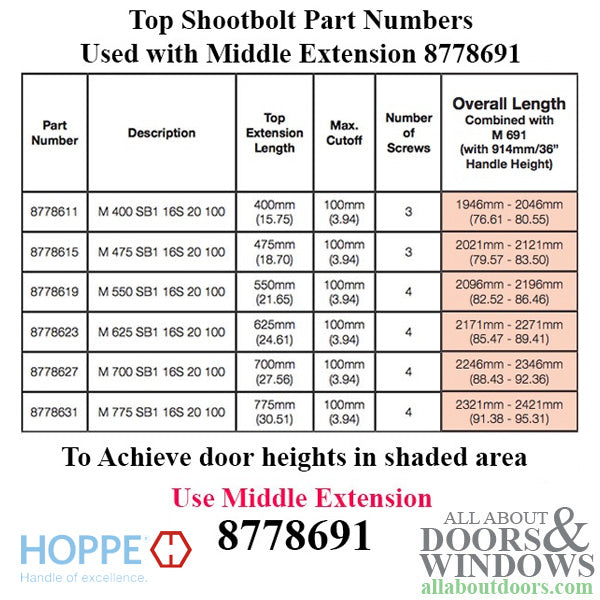

Overall lock lengths when Shootbolt is combined with middle extensions and 36 inch handle height
8778691 - 27.20 inches; Door Heights 76.61 - 95.31 (1946mm - 2421mm)
8778695 - 44.92 inches; Door Heights 94.33 - 113.03 (2396mm - 2871mm)
8778699 - 62.64 inches; Door Heights 112.05 - 130.75 (2846mm - 3321mm)
NOTE: other extensions length available for special heights not shown
