Hoppe HLS9000 Middle Extension. for Active Shootbolt with 5/8 inch faceplate width

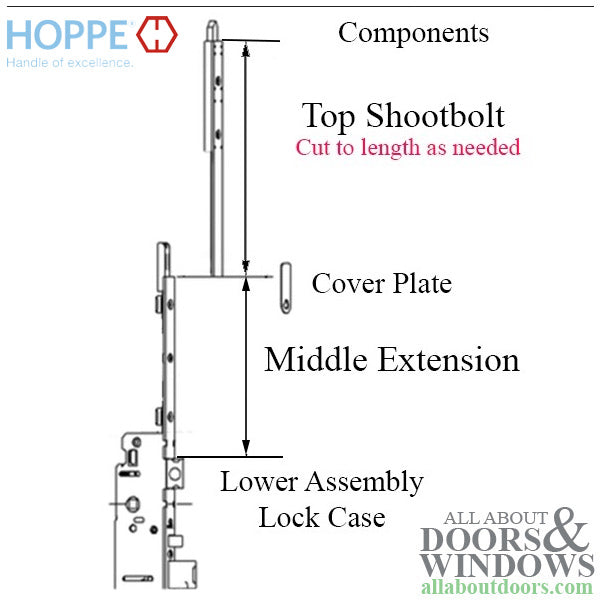

There are 3 basic Middle Extensions used in combination with 6 Top Shootbolt Extension to obtain desired door heights.

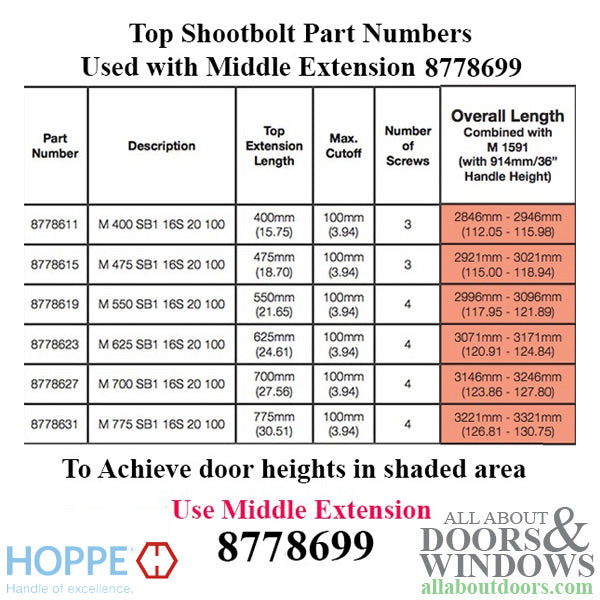

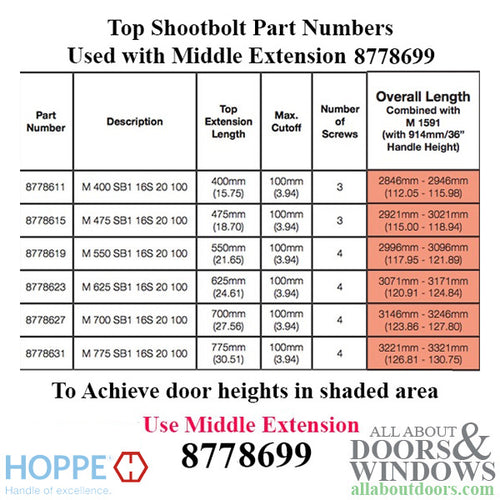

Extension # 8778699 is for doors ranging from 112.05 -130.75 inches when matched with one of six top shootbolts. See Chart

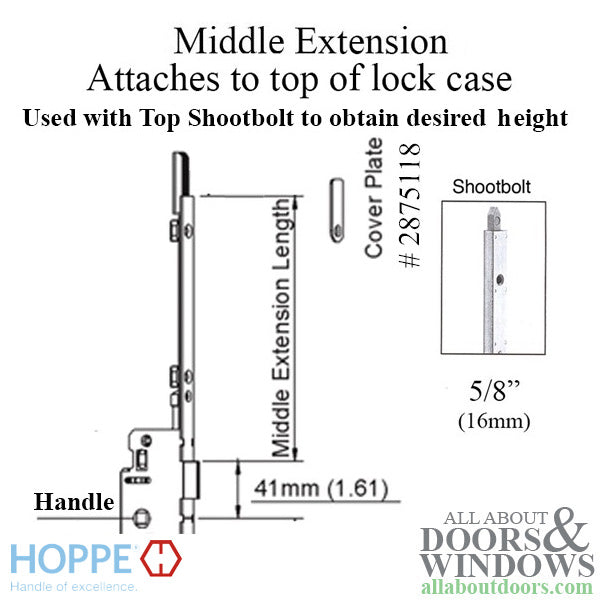

Application: Middle Extension, used with top shoot bolt extension

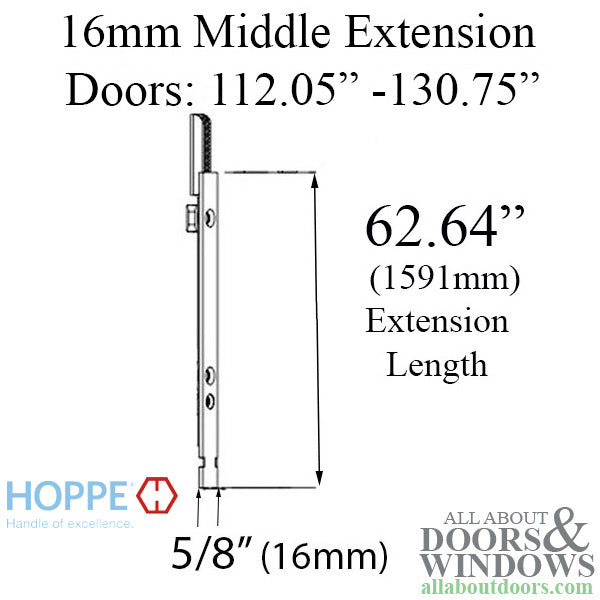

Middle Extension Length: 62.64 inches (1591mm)
Maximum Cutoff: N/A, Does not get cut
Number of Screws: 8
Overall lock lengths when Shootbolt is combined with middle extensions and 36 inch handle height
8778691 - 27.20 inches; Door Heights 76.61 - 95.31 (1946mm - 2421mm)
8778695 - 44.92 inches; Door Heights 94.33 - 113.03 (2396mm - 2871mm)
8778699 - 62.64 inches; Door Heights 112.05 -130.75 (2846mm - 3321mm)
NOTE: other extensions length available for special heights not shown
