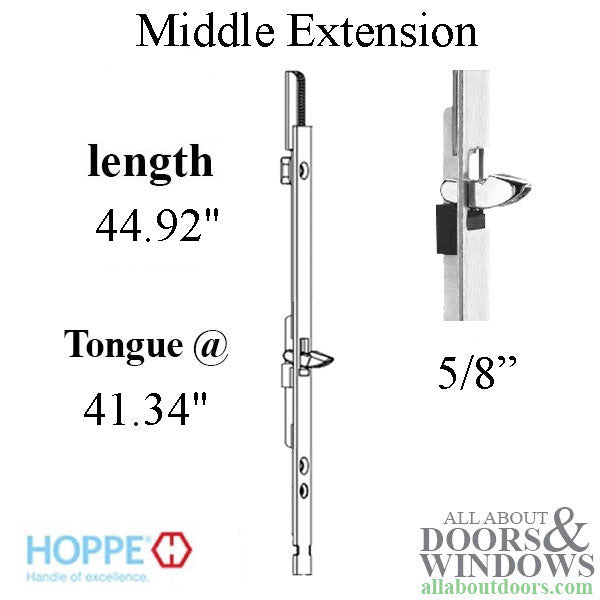

16mm Manual Middle Extension Shootbolt-Tongue @ 41.34", 44.92" Length
Part Number: 8778707 Price: $54.77Hoppe HLS9000 active middle extension for manual version multipoint lock with Tongue and Shootbolt
Application: Middle Section of Shootbolt / Tongue 5-point lock
Faceplate width: 5/8 inch (16mm) 0.6299
Middle extension length: 44-59/64 inches (1141mm) 44.92
Top tongue position from handle: 41-13/32 inches (1050mm) 41.34
Maximum cutoff: None, Nonadjustable length
Number of Screws: 7
Note: This is used in combination with top shoot bolt extension to obtain desired height.
The 8778707 Middle Extension is normally used for doors 94.33 - 113.03 inches tall
Application: Middle Section of Shootbolt / Tongue 5-point lock
Faceplate width: 5/8 inch (16mm) 0.6299
Middle extension length: 44-59/64 inches (1141mm) 44.92
Top tongue position from handle: 41-13/32 inches (1050mm) 41.34
Maximum cutoff: None, Nonadjustable length
Number of Screws: 7
Note: This is used in combination with top shoot bolt extension to obtain desired height.
The 8778707 Middle Extension is normally used for doors 94.33 - 113.03 inches tall
