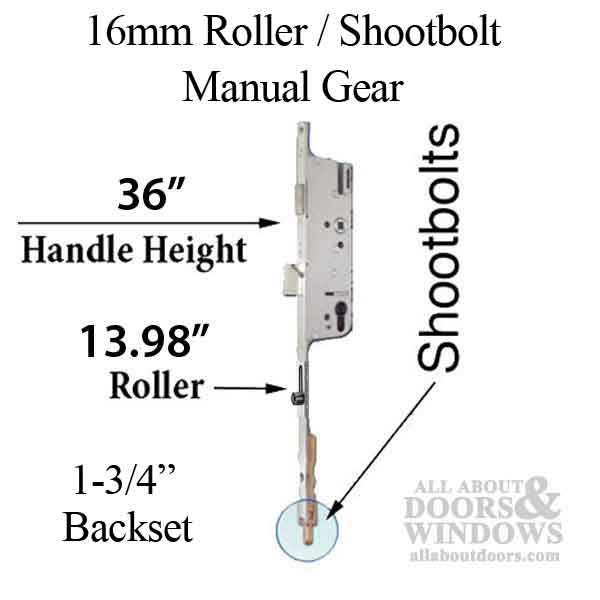

16mm Manual Roller-Shootbolt Gear, 45/92, Roller @ 13.98"
Part Number: Price: $181.74Weathershield Roller / Shootbolt version for active doors
This is a special order gear for replacing Winkhaus and Roto Old Style Locks
M/45/25/0914/R0355/SB (20MM)

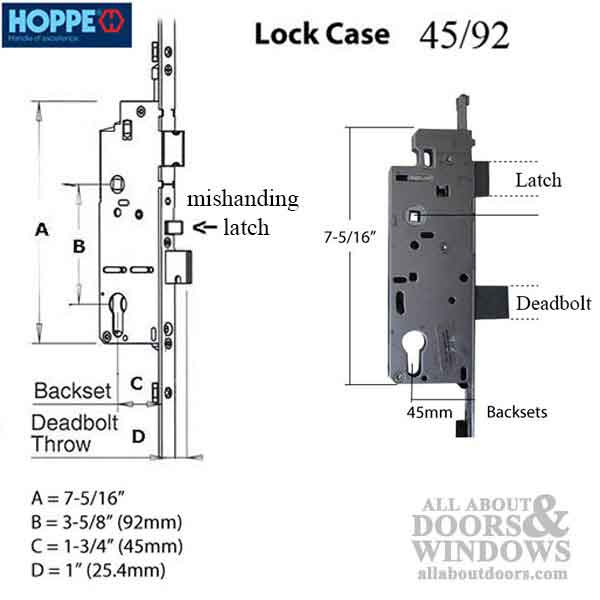

Manual Gear Information:
Handle Height: 36 inch ( 914mm)
Backset: 1-3/4 / 1.77 inch ( 45mm)
Deadbolt Throw: 1 inch ( 25mm)
Bottom Roller Position: 13.98 inch (355mm) to center of handle
Shootbolt Throw: 3/4 / .79 inch ( 20mm)
This is the bottom Gear - Most commonly used with the following Combinations
2002860 - Gear w/ Roller @ 27.32 inch (694mm)
2002894 - Top Extension Roller @ 35.6 inch (829mm)
This is a special order gear for replacing Winkhaus and Roto Old Style Locks
M/45/25/0914/R0355/SB (20MM)
Manual Gear Information:
Handle Height: 36 inch ( 914mm)
Backset: 1-3/4 / 1.77 inch ( 45mm)
Deadbolt Throw: 1 inch ( 25mm)
Bottom Roller Position: 13.98 inch (355mm) to center of handle
Shootbolt Throw: 3/4 / .79 inch ( 20mm)
This is the bottom Gear - Most commonly used with the following Combinations
2002860 - Gear w/ Roller @ 27.32 inch (694mm)
2002894 - Top Extension Roller @ 35.6 inch (829mm)
