Weathershield Roller

Shootbolt version for active doors

This is a special order gear for replacing Winkhaus and Roto Old Style Locks

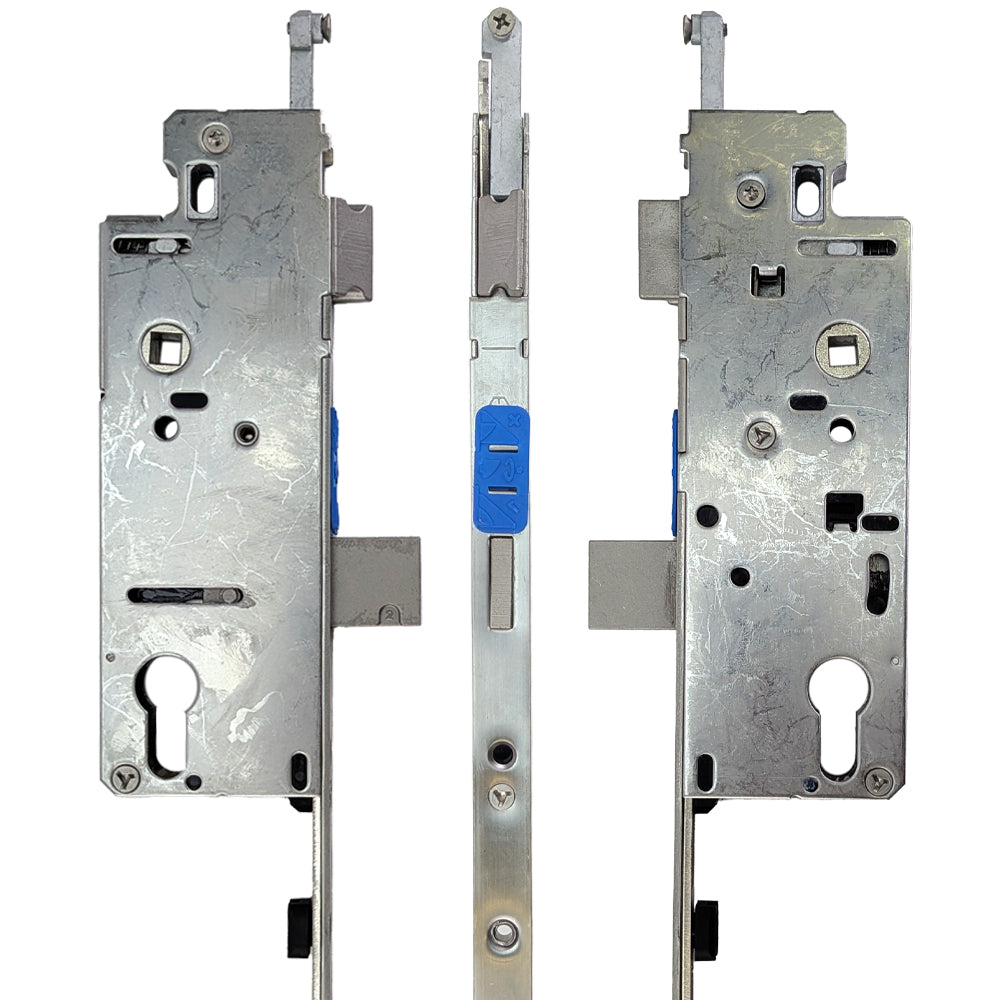

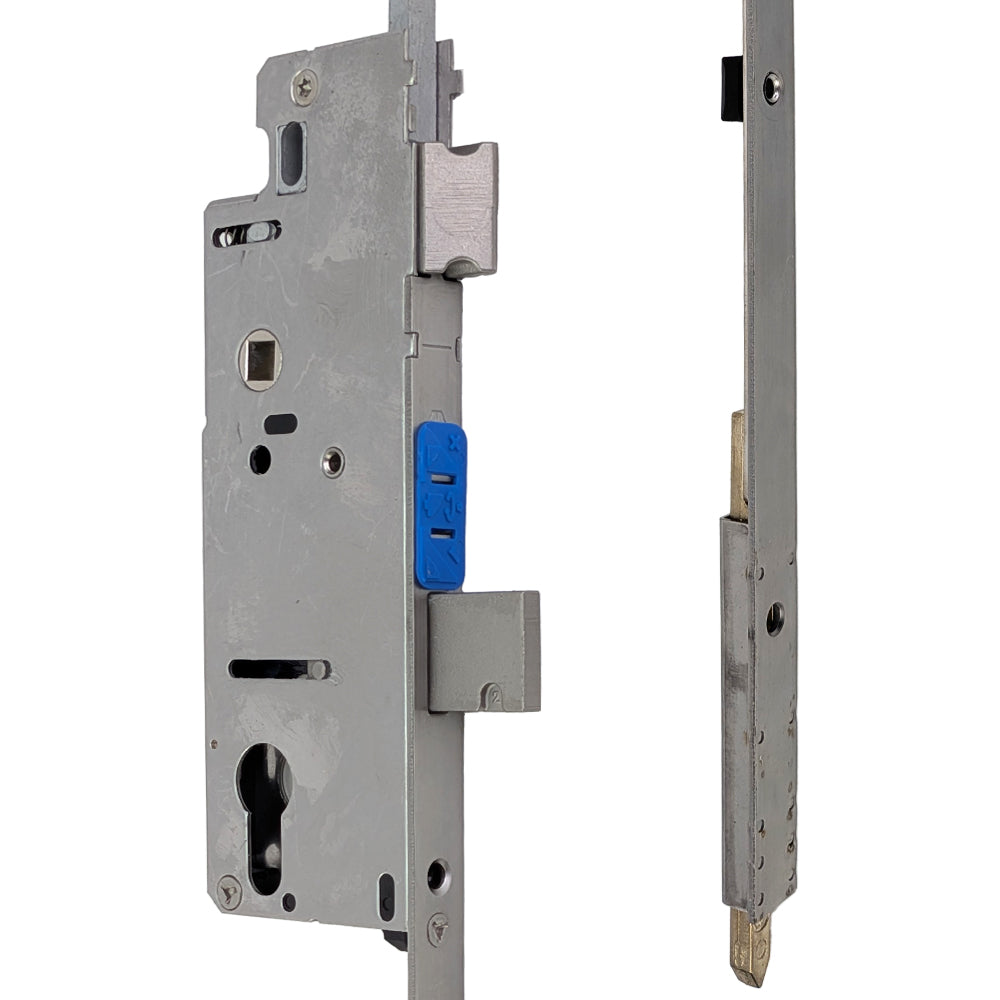

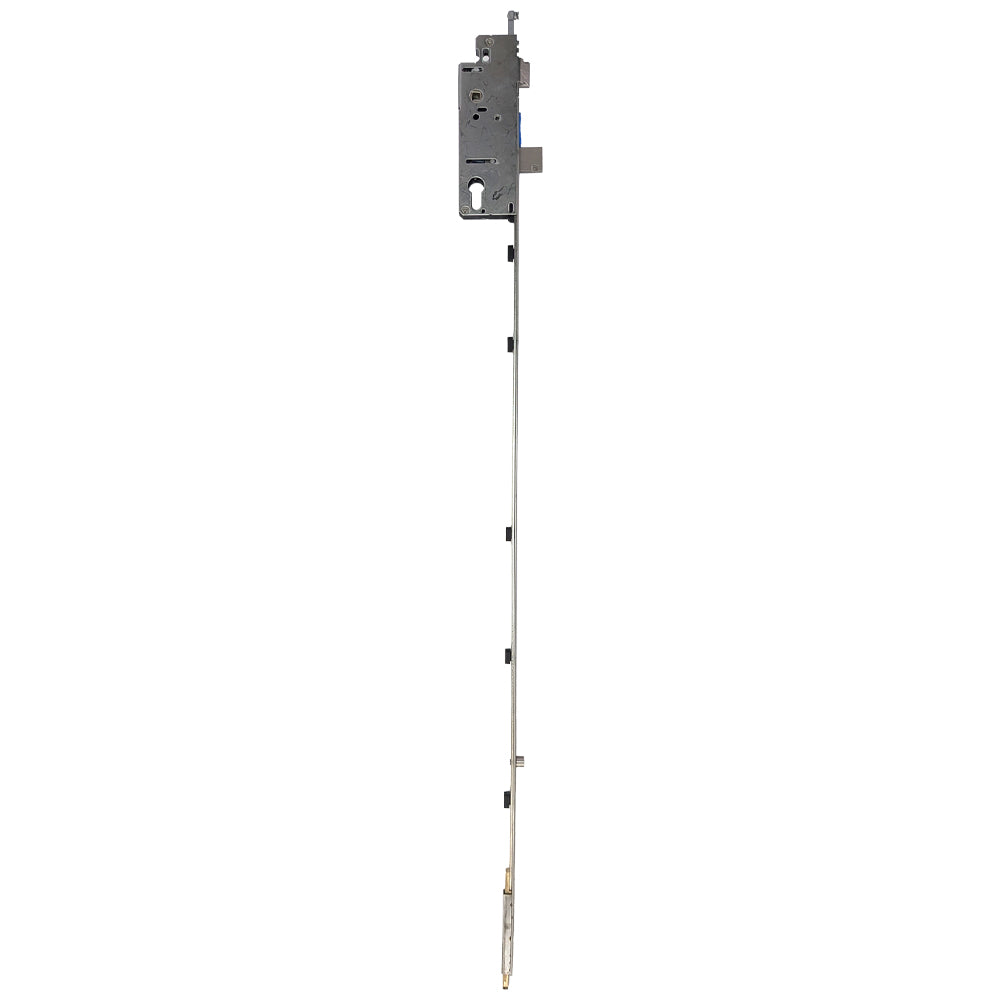

M/45/25/0914/R0355/SB (20MM)

Manual Gear Information:

• Handle Height: 914.5mm (36 inches)
• Backset: 45mm (1.77 inch)
• Deadbolt Throw: 1 inch (25mm)
• Bottom Roller Position: 694mm (27.32 inch)
• Shootbolt Throw: 20mm (.79 inch)

This is the bottom gear. See related items for most common combinations.
