16mm Manual Tongue 45/92 Gear, 37" Handle Height, Tongue @ 26.42"

Part Number: 8778643 Price: $140.72

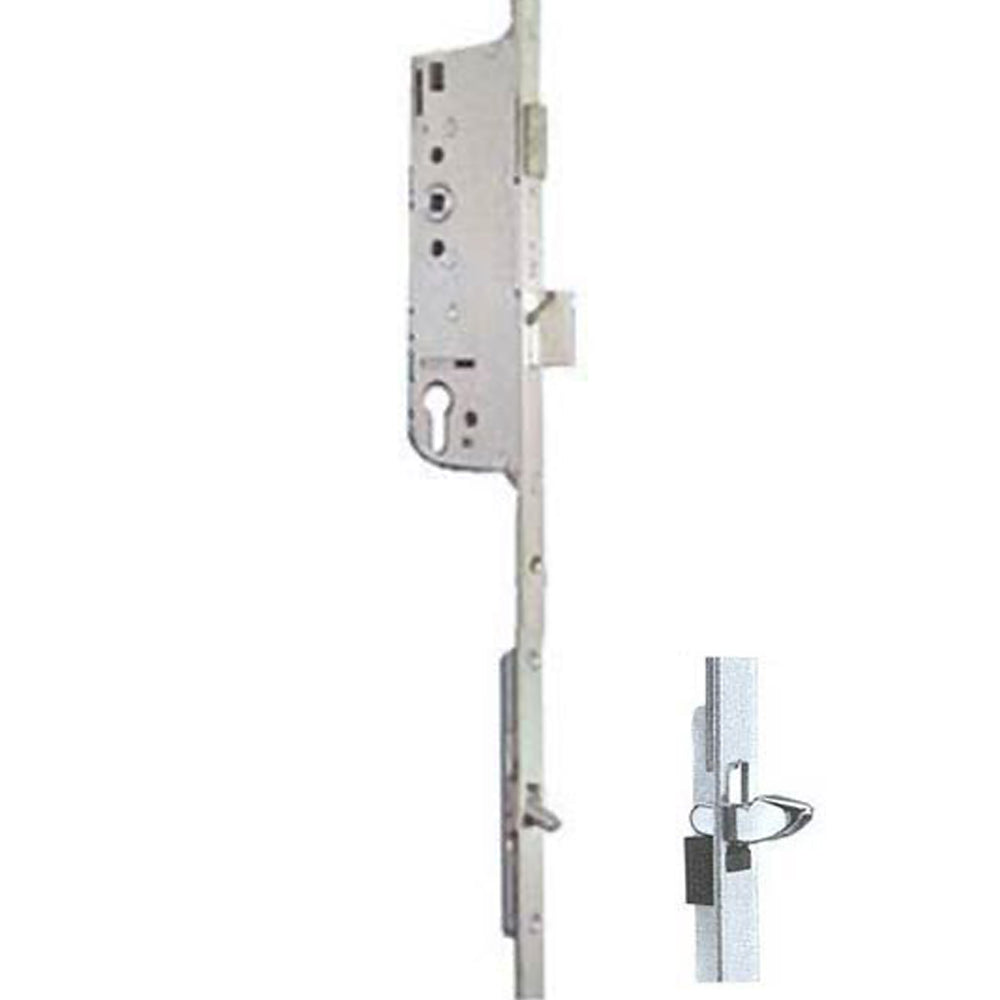

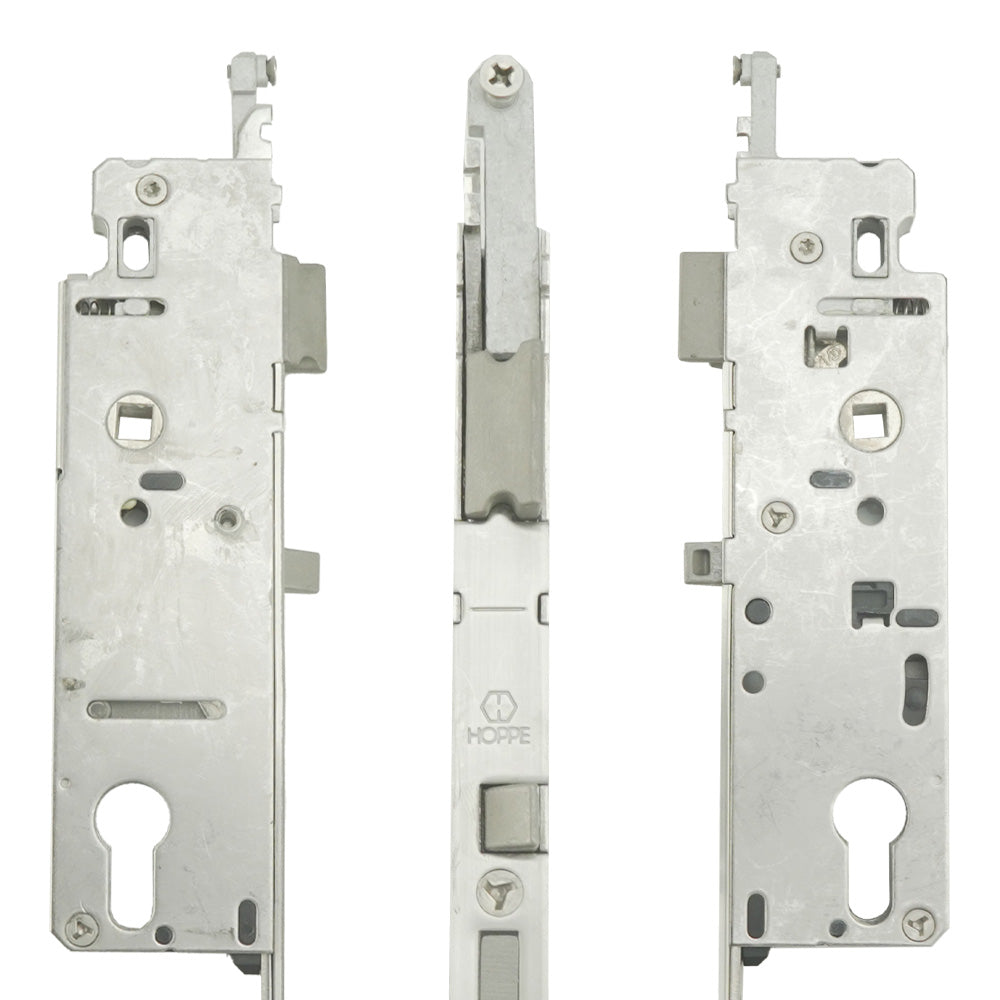

Hoppe HLS9000 16mm Manual Tongue 45/92 Gear, 37" Handle Height, Tongue at 26.42" (Tongue Version Multi-point Lock bottom gear assembly for active door.)

This is for the 37 inch Special Handle Height used by Crestline, Vetter, SNE Corp.

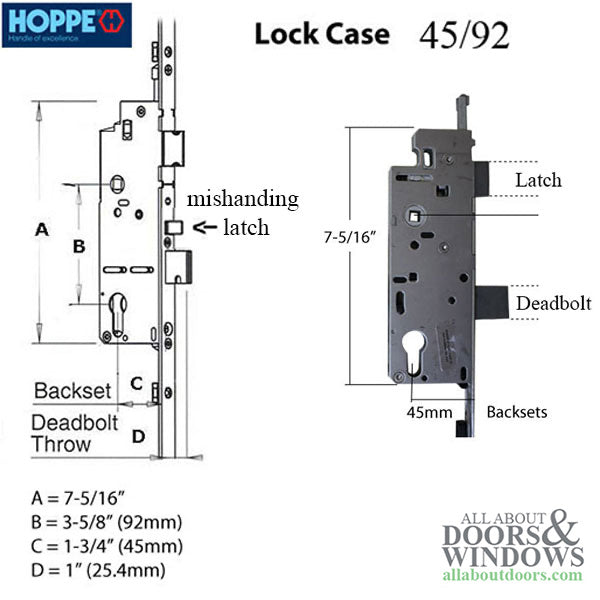

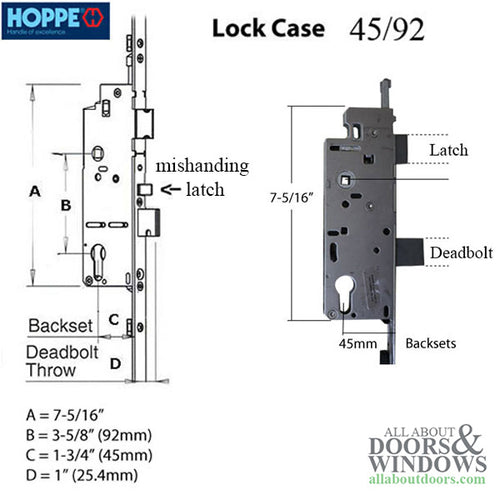

Faceplate: .63 inch (16mm) Stainless Steel
Backset: 1.77 inch (45mm)
Deadbolt throw: 1.0 inch (25.4mm)

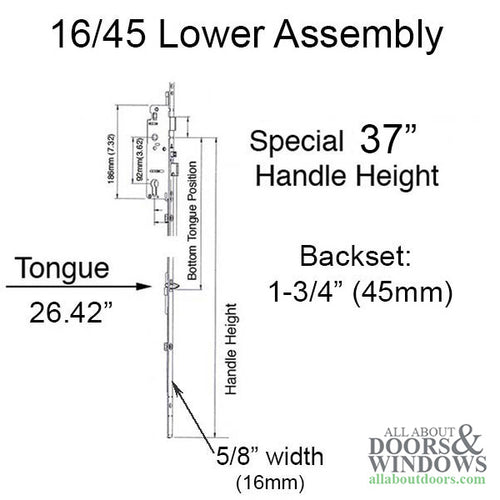

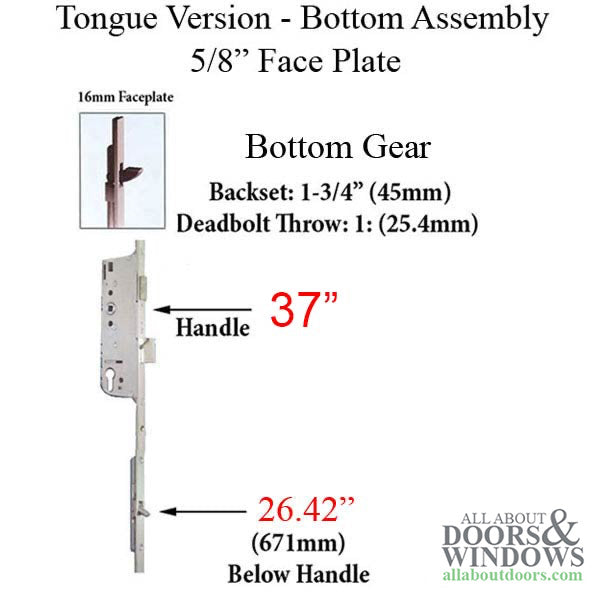

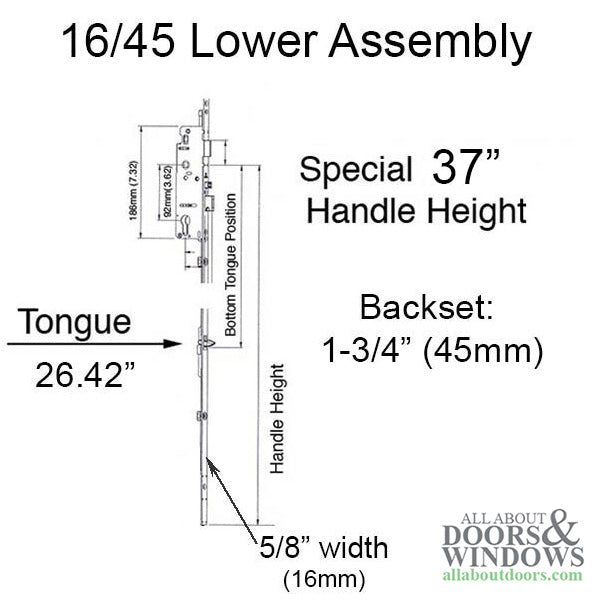

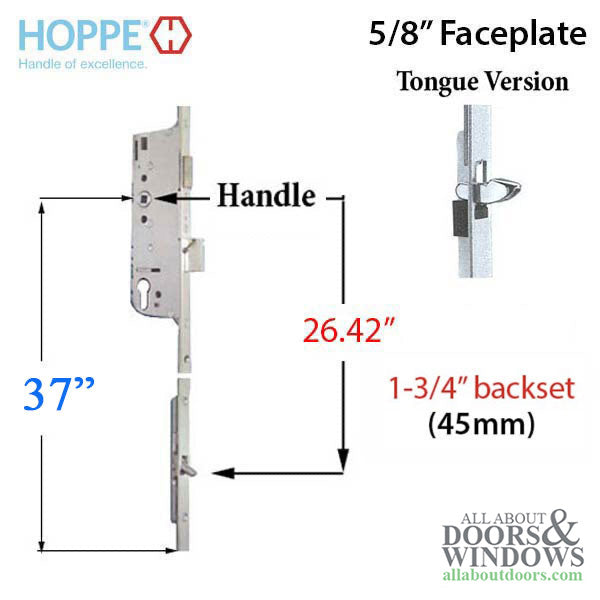

Special Handle Height: 37.00 inch (940mm)
Bottom Tongue Position: 26.42 inches (671mm)
Maximum Cutoff: 5.5 inches (140mm)
Screws: 6

<p>Hoppe HLS9000 16mm Manual Tongue 45/92 Gear, 37" Handle Height, Tongue at 26.42" (<a href="https://www.allaboutdoors.com/multipoint-lock-locking-devices" target="_blank">Tongue Version</a> Multi-point Lock <a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank">bottom gear</a> assembly for active door.)<br /><br /><i>This is for the </i><a href="https://www.allaboutdoors.com/handle-height" target="_blank"><i>37 inch Special Handle Height</i></a><i> used by Crestline, Vetter, SNE Corp.</i><br /><br /><a href="https://www.allaboutdoors.com/multipoint-lock-faceplate" target="_blank">Faceplate</a>: .63 inch (16mm) Stainless Steel<br /><a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 1.77 inch (45mm)<br /><a href="https://www.allaboutdoors.com/deadbolt-throw" target="_blank">Deadbolt throw</a>: 1.0 inch (25.4mm)<br />Special Handle Height: 37.00 inch (940mm)<br /><a href="https://www.allaboutdoors.com/multipoint-locking-positions" target="_blank">Bottom Tongue Position</a>: 26.42 inches (671mm)<br />Maximum Cutoff: 5.5 inches (140mm)<br />Screws: 6</p>
Add to Card
